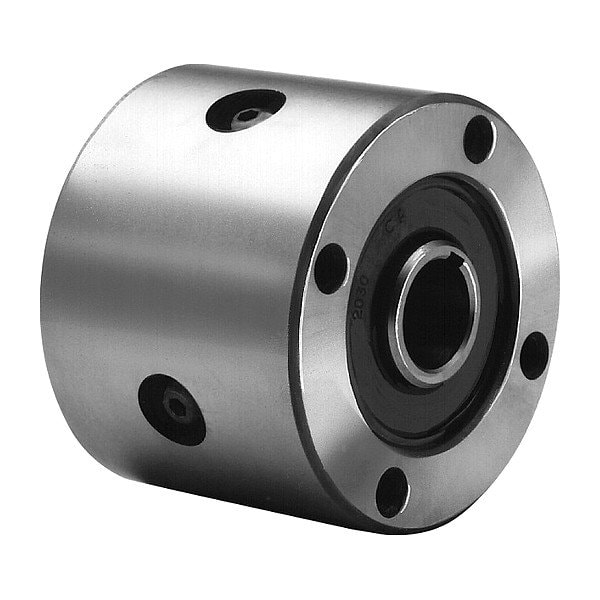

Sprag Clutch, 3.75 in, 5 3/8 in, Backstopping, Indexing, Overrunning
Mfr # CL42155-3GR
Zoro # G008637069
product price: $3,053.99
/ea
Free Shipping & Returns
Key Features
For Use With
HPI series
Application
Backstopping, Indexing, Overrunning
Color
Gray
Enclosure Type
Totally Enclosed
Keyway Width
3/8 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
CL42155-3GR
Zoro #
G008637069
UPC #
-
Country of Origin
United States
Dimensions
Keyway Width
3/8 in
Overall Height
5 3/8 in
Mount Hole Center-to-Center Length
4.75 in
Overall Width
5.38 in
Outside Diameter
5.38 in
Mount Hole Center-to-Center Width
4.75 in
Bolt Circle Diameter
4.75 in
Bore Size
1 5/8 in
Overall Length
3.75 in
Keyway Depth
3/16 in
Details
Item
Sprag Clutch
For Use With
HPI series
Application
Backstopping, Indexing, Overrunning
Color
Gray
Enclosure Type
Totally Enclosed
Maximum Speed
2,200 RPM
Clutch/Brake Type
Sprag
Mounting Orientation
Horizontal
Standards
AS 9100 Rev. D, ISO 9001: 2015
Static Torque
2,250 ft-lb
Minimum Ambient Temperature
20 Degrees F
Automatic Reset
Yes
Maximum Ambient Temperature
150 Degrees F
Description
Sprag Clutch, Clutch/Brake Type Sprag, Coil Voltage Not Applicable, Operating Voltage Not Applicable, Enclosure Type Totally Enclosed, Static Torque 2,250 ft-lb, Motor Frame Designation Not Applicable, Horsepower @ RPM Not Applicable, Shaft Diameter Not Applicable, Maximum Speed 2,200 RPM, Mounting Location Shaft Extension, For Use With HPI series, Shaft Length Not Applicable, Automatic Reset Yes, Bolt Circle Diameter 4.75 in, Lead Length Not Applicable, Outside Diameter 5.38 in
