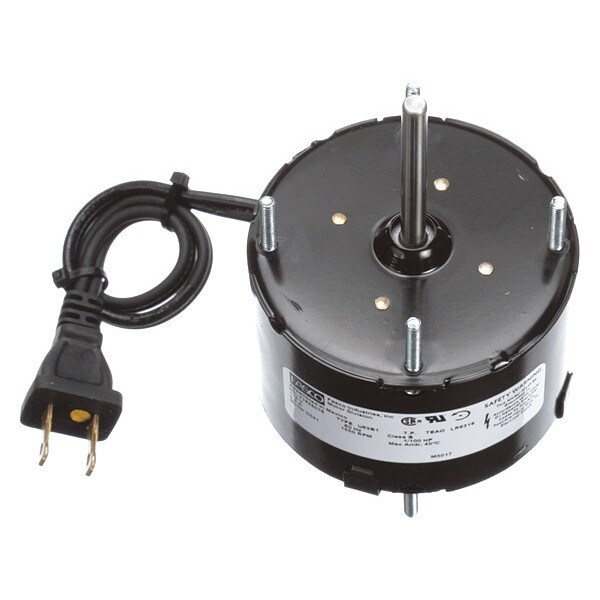

Fasco HVAC Motor, TEAO, 1/100 HP, 1550 rpm, 115V D541 - main

HVAC Motor, TEAO, 1/100 HP, 1550 rpm, 115V

  • Mfr # D541

  • Zoro # G7567603

product price:  $67.39
/ea

Key Features

Voltage
115V AC
Nameplate RPM
1,550
Motor Enclosure Design
Totally Enclosed Air-Over
Number of Speeds
1
HP
1/100
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
D541
Zoro #
G7567603
UPC #
663001027379
Country of Origin
United States

Dimensions

Shaft Dia.
1/4 in
Shaft Length
2 1/4 in
Length Less Shaft
2 11/16 in
Body Dia.
3 5/16 in
Cord Length
13 in
Overall Length
4 3/4 in
Lead Length
12 in
Bolt Circle Dia.
2 7/8 in
Stud Size
#8-32
Shaft Diameter
1/4 in
Frame Size
3.3
Bolt Circle Diameter
2 7/8 in
Mounting Stud Thread Size
#8-32
Body Diameter
3.3 in

Details

Voltage
115V AC
Nameplate RPM
1,550
Motor Enclosure Design
Totally Enclosed Air-Over
Number of Speeds
1
HP
1/100
RPM Range
1,501-1,600
Motor Mounting Type
Ring/Stud
Hz
60 Hz
Stud/Base Mtg. Pattern
2-27/32 in x 90 Degrees
Motor Bearings
Sleeve
Number of Shafts
1
Motor Shaft Rotation
CCWSE
Ins. Class
B
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Item
OEM Replacement Motor
Application
General Application
Motor Design
Shaded Pole
Mounting Stud Location
4/Both Ends
Standards
CSA Certified, UL Recognized
Motor Sub Application
OEM Replacement
Full Load Amps
0.6 A
Motor Application
HVAC/R
Motor Thermal Protection
Auto
Motor Shaft Design
Flat
Motor Service Factor
1
Plug Type
2 Prong Non-Polarized
Phase
Single
No. of Speeds
1
Frame
3.3
Max. Ambient Temp.
40 Degrees C
Duty
Continuous
Capacitor Required
Capacitor Not Required
Weight
2 lb
Usable @ 208V
Not Usable at 208V
Mounting Holes
(8) #8-32
Usable @ 200V
Not Usable at 200V
Motor Frame Material
Steel
Mounting
Stud
Drive Type
Direct Drive
Insulation Class
B
Product Type
OEM Replacement Motor
Bearing Type
Sleeve
Sub Application
General Purpose
Ambient Temperature - Maximum
40 Degrees C
Full Load Current @ 60 Hz
0.60 A
Motor Enclosure Type
Totally Enclosed Air-Over
Shaft Design
Flat
Frequency
60 Hz
Wattage
10 W
Nameplate Service Factor @ 60 Hz
1
Frame Material
Steel

Description

OEM Replacement Motor, Single Phase, Motor Design Shaded Pole, 1/100 hp HP, Nameplate RPM 1,550 RPM, No. of Speeds 1, Voltage 115V AC, 0.60 A Full Load Amps, 3.3 Frame, Output Watts 10 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWSE, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Stud, Motor Frame Material Steel
