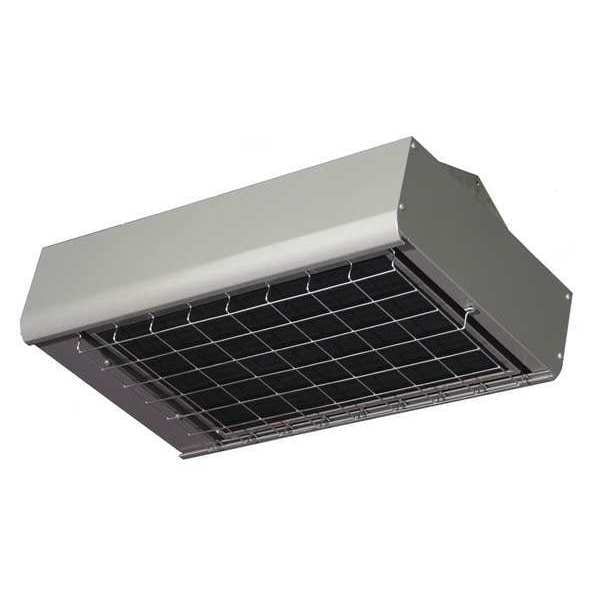

Fostoria Electric Infrared Heater, 1 or 3 Phase, Aluminum, 14,672 BtuH, 480V AC 4300 W FSA-4348-3 - main
Shop FOSTORIA

Electric Infrared Heater, 1 or 3 Phase, Aluminum, 14,672 BtuH, 480V AC 4300 W

  • Mfr # FSA-4348-3

  • Zoro # G1181332

product price:  $1,660.16
/ea
Free Shipping & Returns

Key Features

Watts
4300
Voltage
480V AC
Phase
1, 3
Height
9-1/2"
Width
14-3/4"
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
FSA-4348-3
Zoro #
G1181332
UPC #
686334489041
Country of Origin
United States

Dimensions

Height
9-1/2"
Width
14-3/4"
Length
25-1/16"
Grille Height
23 in
Overall Length
25 1/16 in
Overall Width
14 3/4 in
Overall Dimensions - L x W x D
25-1/16 in x 14-3/4 in x 9-1/4 in
Overall Depth
9 1/4 in
Grille Width
13 3/4 in
Grille Depth
1 1/4 in
Overall Height
25 1/16 in

Details

Watts
4300
Voltage
480V AC
Phase
1, 3
Housing Material
Aluminum
Element Type
Flat Panel Emitter
Item
Infrared Heater
Heat Pattern Coverage @ Floor (16 Ft.)
18 x 16
Radiant Efficiency
78.5 %
Heat Pattern Coverage @ Floor (10 Ft.)
12 x 10
BtuH Output
14,672
Watts Delivered/Sq.-Ft. 16
14.9
Amps @ 1 Phase
8.96
Electric Heater Phase
1/3
Standards
ETL Listed for US & Canada
Number of Lamps
1
Beam Pattern
60 Degrees
Indoor/Outdoor Usage
Indoor/Outdoor
Heater Mounting Type
Ceiling Suspended, Wall
Watts Delivered/Sq.-Ft. 12
25.6
Watts Delivered/Sq.-Ft. 14
19.2
Heater Voltage
480VAC
Watts Delivered/Sq.-Ft. 10
35.8
Includes
Electrical Enclosure, Grill, L-Shape Support Brackets
Finish
Nickel Brush Aluminum
Heat Pattern Coverage @ Floor (12 Ft.)
14 x 12
Infrared Electromagnetic Wave Type
Medium Wave
Amps @ 3 Phase
5.18
Heat Pattern Coverage @ Floor (14 Ft.)
16 x 14
Voltage, Phase
480V AC, 1 or 3-phase
Wattage Output
4300W
Max. Operating Temp.
Varies, based on distance from target & mounting height
Electrical Connection
Hardwired
Heating Method
Radiant
Housing Material, Housing Color
Aluminum, Silver
NEMA Plug Configuration
Hardwired
Heater Mounting Position
Horizontal Burn, Vertical Burn
Housing Finish
Powder Coated
Amperage
5.2 A / 9.0 A
For Use Outdoors
Indoor/Outdoor
Heating Capacity
14,672 BTU
Mobility
Stationary
Frequency
50/60 Hz
Brightness
43 lm
Housing Color
Silver
Grille Material
Steel, Zinc Plated
For Use Indoors/Outdoors
Indoor/Outdoor
Thermostat Included
Thermostat Not Included
For Location
Indoor/Outdoor
Grille Color
Silver
Operating Temperature - Maximum
Varies, based on distance from target & mounting height
Duty Rating
Commercial Grade
Programming Capability
Non-Programmable
Housing Style
Slope
Control Type
None

Description

Electric Infrared Heater, Overall Length 25 1/8 in, Overall Width 14 3/4 in, Overall Depth 9 1/4 in, Phase 1 or 3, Voltage 480V AC, Wattage Output 4300W, Beam Pattern 60 Degrees , Element Type Flat Panel Emitter, Housing Color Silver, Housing Material Aluminum, Mounting Type Recessed, Semi- Recessed, Surface, Suspended, Grille Depth 1 1/4 in, Grille Height 23 in, Grille Width 13 3/4 in, Grille Material Steel, Zinc Plated, Heating Capacity 14,672 BtuH, Heating Method Radiant
