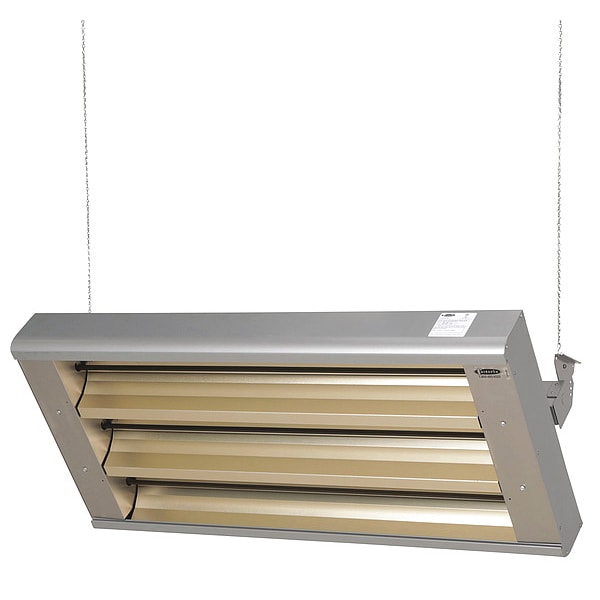

Electric Infrared Heater, 1 or 3 Phase, Aluminum, 480V AC

  • Mfr # 463-30-THA-480V
  • Zoro # G5522703
product price:
$
2,178.99
/ea
Free Shipping & Returns

Key Features

Voltage
480V AC
Phase
1, 3
Housing Material
Aluminum
Element Type
Quartz Lamp
Includes
(6) High Temperature Leads, 3 in Spacer Brackets, Elements, Guard
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
463-30-THA-480V
Zoro #
G5522703
UPC #
686334489836
Country of Origin
United States
Voltage
480V AC
Phase
1, 3
Housing Material
Aluminum
Element Type
Quartz Lamp
Item
Infrared Heater
Includes
(6) High Temperature Leads, 3 in Spacer Brackets, Elements, Guard
Number of Lamps
3
Infrared Electromagnetic Wave Type
Short Wave
Radiant Efficiency
96 %
Standards
ETL Listed for US & Canada
Beam Pattern
30 Degrees
Heater Mounting Position
Horizontal Burn
Electrical Connection
Hardwired
Amperage
13.2 A / 22.9 A
Housing Color
Silver
Grille Material
Stainless Steel
Housing Material, Housing Color
Aluminum, Silver
Wattage Output
10,950W
Voltage, Phase
480V AC, 1 or 3-phase
Housing Finish
Powder Coated
Max. Operating Temp.
Varies, based on distance from target & mounting height
For Use Outdoors
Indoor/Outdoor
Heating Method
Radiant
Mobility
Stationary
Frequency
50/60 Hz
Heating Capacity
37,372 BTU
NEMA Plug Configuration
Hardwired
Reflector Material
Aluminum, Gold Anodized
Brightness
87,600 lm
For Use Indoors/Outdoors
Indoor/Outdoor
Programming Capability
Non-Programmable
Thermostat Included
Thermostat Not Included
For Location
Indoor/Outdoor
Duty Rating
Commercial Grade
Control Type
None
Housing Style
Slope
Operating Temperature - Maximum
Varies, based on distance from target & mounting height

Description

Electric Infrared Heater, Overall Length 46 in, Overall Width 21 1/2 in, Overall Depth 11 in, Phase 1 or 3, Voltage 480V AC, Wattage Output 10,950W, Beam Pattern 30 Degrees , Element Type Quartz Lamp, Housing Color Silver, Housing Material Aluminum, Mounting Type Recessed, Surface, Suspended, Grille Depth 1/8 in, Grille Height 38 1/2 in, Grille Width 18 3/4 in, Grille Material Stainless Steel, Heating Capacity 37,372 BtuH, Heating Method Radiant, Housing Finish Nickel-Gray
