Shop FOSTORIA

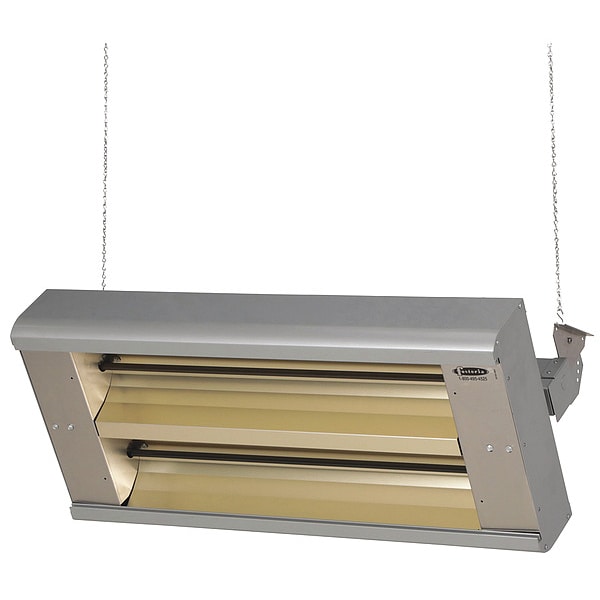

Electric Infrared Heater, 1 Phase, Aluminum, 480V AC

  • Mfr # 342-60-THA-480V

  • Zoro # G5521382

product price:  $1,280.64
/ea
Free Shipping & Returns

Key Features

Voltage
480V AC
Phase
1
Housing Material
Aluminum
Element Type
Quartz Lamp
Number of Lamps
2
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
342-60-THA-480V
Zoro #
G5521382
UPC #
686334489508
Country of Origin
United States

Dimensions

Overall Dimensions - L x W x D
33 in x 15 in x 11 in
Overall Width
15 in
Grille Depth
1/8 in
Overall Length
33 in
Grille Width
12 1/4 in
Overall Depth
11 in
Grille Height
25 1/2 in
Overall Height
11 in

Details

Voltage
480V AC
Phase
1
Housing Material
Aluminum
Element Type
Quartz Lamp
Item
Infrared Heater
Number of Lamps
2
Radiant Efficiency
96 %
Beam Pattern
60 Degrees
Includes
(4) High Temperature Leads, 3 in Spacer Brackets, Elements, Guard
Standards
ETL Listed for US & Canada
Infrared Electromagnetic Wave Type
Short Wave
Housing Material, Housing Color
Aluminum, Silver
Brightness
40,000 lm
Housing Finish
Powder Coated
Amperage
10.4 A
NEMA Plug Configuration
Hardwired
Grille Material
Stainless Steel
Mobility
Stationary
Max. Operating Temp.
Varies, based on distance from target & mounting height
For Use Outdoors
Indoor/Outdoor
Heating Capacity
17,065 BTU
Wattage Output
5000W
Housing Color
Silver
Heating Method
Radiant
Heater Mounting Position
Horizontal Burn
Reflector Material
Aluminum, Gold Anodized
Electrical Connection
Hardwired
Frequency
50/60 Hz
Voltage, Phase
480V AC, 1-phase
For Use Indoors/Outdoors
Indoor/Outdoor
Operating Temperature - Maximum
Varies, based on distance from target & mounting height
Duty Rating
Commercial Grade
Control Type
None
Housing Style
Slope
Thermostat Included
Thermostat Not Included
Programming Capability
Non-Programmable
For Location
Indoor/Outdoor

Description

Electric Infrared Heater, Overall Length 33 in, Overall Width 15 in, Overall Depth 11 in, Phase 1, Voltage 480V AC, Wattage Output 5000W, Beam Pattern 60 Degrees , Element Type Quartz Lamp, Housing Color Silver, Housing Material Aluminum, Mounting Type Recessed, Surface, Suspended, Grille Depth 1/8 in, Grille Height 25 1/2 in, Grille Width 12 1/4 in, Grille Material Stainless Steel, Heating Capacity 17,065 BtuH, Heating Method Radiant, Housing Finish Nickel-Gray, Electrical Connection Hardwired
