Shop RAYCHEM

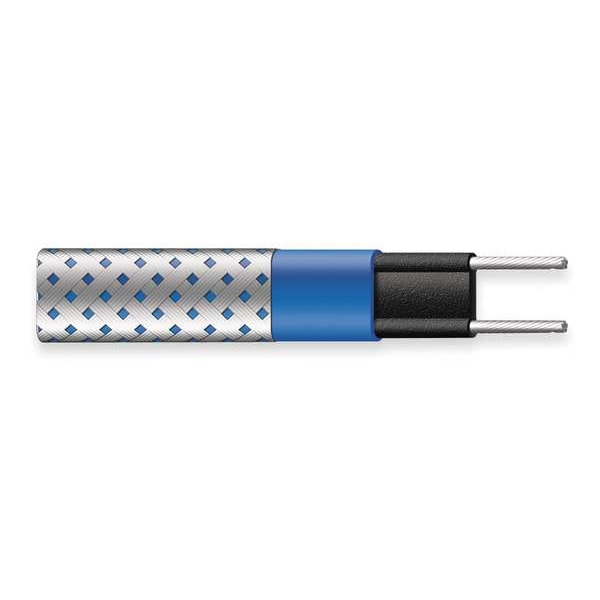

Electric Heating Cable, 120VAC, 50 ft Length

  • Mfr # P000000876

  • Zoro # G2780863

product price:  $288.99
/ea
Free Shipping & Returns

Key Features

Mounting Location
Dry
Max. Circuit Length
200 ft
Heater Voltage
120VAC
Standards
CCSA US
Includes
Cable Only
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
P000000876
Zoro #
G2780863
UPC #
715629000132
Country of Origin
United States

Dimensions

Cable Length
50 ft
Max. Circuit Length
200 ft
Overall Width
3/8 in
Overall Length
50 ft

Details

Item
Electric Heating Cable
Mounting Location
Dry
Heater Voltage
120VAC
Standards
CCSA US
Includes
Cable Only
Watts per Foot @ 40F
6 W
Amps per Foot @ 40F
0.05 A
Features
Self Regulating, Automatically Adjust Heat Output
For Use With
H900, H903, H908, H910, H912, Optional Plug 4DC48
Watts per Cable @ 40F
6 W
Amps per Cable @ 40F
0.05 A
Number of Conductors
2
Voltage
120V AC
Phase
1
Cable Cover Material
Tinned-Coated Copper
Cable Type
Self-Regulating
Max. Operating Temp.
150 Degrees F
For Use Outdoors
Indoor Only
Cable Material
Conductive Carbon
Frequency
50 Hz
Min. Operating Temp.
-40 Degrees F
Wattage Output
6 W
Color
Silver
NEMA Plug Configuration
Hardwired
For Use Indoors/Outdoors
Indoor
Operating Temperature - Minimum
-40 Degrees F
Programming Capability
Non-Programmable
Heating Cable Conductor Type
Conductive Carbon
Thermostat Included
N
Operating Temperature - Maximum
150 Degrees F
Power Connection Type
Hardwired
Heating Cable Shielding Material
Tinned-Coated Copper
Compatible Manufacturer Model Number
H900, H903, H908, H910, H912, Optional Plug 4DC48

Description

Electric Heating Cable, For Use With Flooring Type Not Applicable, Overall Length 50 ft, Overall Width 3/8 in, Thermostat Included N, Voltage 120V AC, Wattage Output 6 W, Heating Cable Conductor Type Conductive Carbon, Heating Cable Shielding Material Tinned-Coated Copper, For Use Indoors/Outdoors Indoor, For Use With H900, H903, H908, H910, H912, Optional Plug 4DC48, Heating Area Not Applicable, Programming Capability Non-Programmable, 1 Phase, Frequency 50 Hz, Includes Cable Only
