  7. Electric Infrared Heater, 1 Phase, Aluminum, 5460 BtuH, 277V AC 1600 W

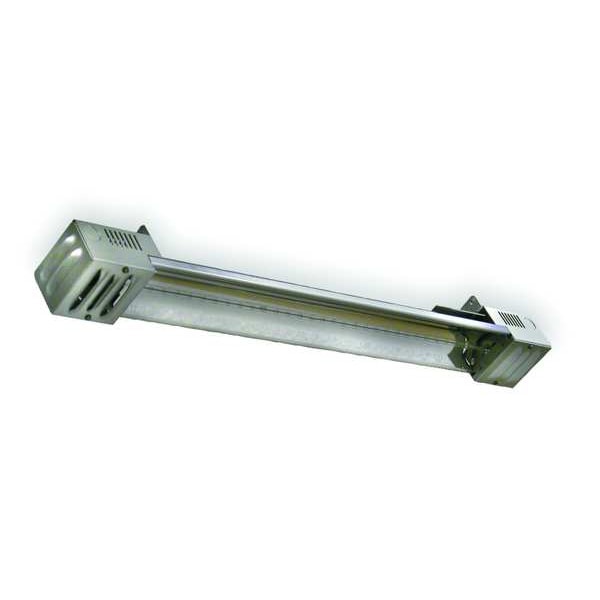

Fostoria Electric Infrared Heater, 1 Phase, Aluminum, 5460 BtuH, 277V AC 1600 W MM-24A - main

Electric Infrared Heater, 1 Phase, Aluminum, 5460 BtuH, 277V AC 1600 W

  • Mfr # MM-24A

  • Zoro # G8494123

product price:  $293.76
/ea
Free Shipping & Returns

Key Features

Watts
1600
Voltage
277V AC
Phase
1
Height
3-3/4"
Width
3-3/8"
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
MM-24A
Zoro #
G8494123
UPC #
686334449540
Country of Origin
United States

Dimensions

Height
3-3/4"
Width
3-3/8"
Length
24"
Overall Length
24 in
Overall Depth
3 3/8 in
Overall Dimensions - L x W x D
24 in x 3-3/4 in x 3-3/8 in
Overall Width
3 3/4 in

Details

Watts
1600
Voltage
277V AC
Phase
1
Housing Material
Aluminum
Element Type
Quartz Lamp
Item
Electric Infrared Heater
Watts Delivered/Sq.-Ft. 8
15
Heat Pattern Coverage @ Floor (8 Ft.)
10-1/2 x 10
Cord Type
Hard Wired
Finish
Bright Aluminum
Lumens
12,800
Standards
ETL Listed for US & Canada
Heat Pattern Coverage @ Floor (12 Ft.)
15 x 14
Watts Delivered/Sq.-Ft. 12
8
Amps @ 1 Phase
7.70/3.30
Number of Lamps
1
Heater Voltage
208/277VAC
BtuH Output
5460
Watts Delivered/Sq.-Ft. 10
10
Heat Pattern Coverage @ Floor (10 Ft.)
13 x 12
Includes
(3) 24 in Lead Wires
Electric Heater Item
Electric Infrared Heater, Without Lamp
Electric Heater Phase
1
Heater Mounting Type
Suspended
Beam Pattern
60 Degrees
Indoor/Outdoor Usage
Indoor Only
Radiant Efficiency
96 %
Infrared Electromagnetic Wave Type
Short Wave
Amperage
3.3A/7.7A
Housing Color
Silver
Electrical Connection
Hardwired
Heating Capacity
5,461 BtuH
Frequency
50/60Hz
Reflector Material
Aluminum, Coilzak
Housing Material, Housing Color
Aluminum, Silver
Wattage Output
900W/1600W
Heater Mounting Position
Horizontal Burn
For Use Outdoors
Indoor Only
Max. Operating Temp.
Varies, based on distance from target & mounting height
Heating Method
Radiant
Brightness
12,300 lm
Voltage, Phase
277V AC, 1-phase
NEMA Plug Configuration
Hardwired
Mobility
Stationary
Housing Finish
Bright
For Use Indoors/Outdoors
Indoor Only

Description

Electric Infrared Heater, Overall Length 24 in, Overall Width 3 3/4 in, Overall Depth 3 3/8 in, Phase 1, Voltage 277V AC, Wattage Output 900W/1600W, Beam Pattern 60 Degrees , Element Type Quartz Lamp, Housing Color Silver, Housing Material Aluminum, Mounting Type Surface, Suspended, Heating Capacity 5,461 BtuH, Heating Method Radiant, Housing Finish Bright, Electrical Connection Hardwired, Frequency 50/60Hz, Amperage 3.3A/7.7A, NEMA Plug Configuration Hardwired
