Shop FOSTORIA

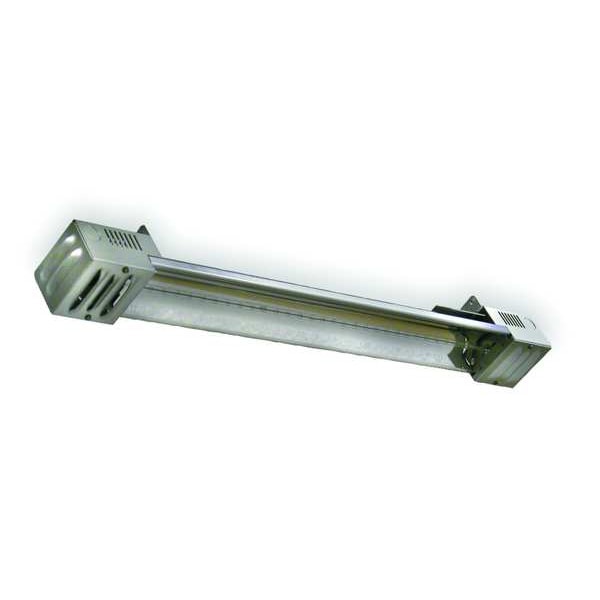

Electric Infrared Heater, 1 Phase, Aluminum, 5460 BtuH, 277V AC 1600 W

  • Mfr # MM-24A

  • Zoro # G8494123

product price:
$
311.99
/ea
Free Shipping & Returns

Key Features

Watts
1600
Voltage
277V AC
Phase
1
Height
3-3/4"
Width
3-3/8"
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
MM-24A
Zoro #
G8494123
UPC #
686334449540
Country of Origin
United States

Dimensions

Height
3-3/4"
Width
3-3/8"
Length
3 3/4 in
Overall Length
3 3/4 in
Overall Depth
3 3/8 in
Overall Dimensions - L x W x D
24 in x 3-3/4 in x 3-3/8 in
Overall Width
24 in
Overall Height
3 3/4 in
Wire Rope Length
3 3/4 in

Details

Watts
1600
Voltage
277V AC
Phase
1
Housing Material
Aluminum
Element Type
Quartz Lamp
Item
Infrared Heater
Watts Delivered/Sq.-Ft. 8
15
Heat Pattern Coverage @ Floor (8 Ft.)
10-1/2 x 10
Cord Type
Hard Wired
Finish
Bright Aluminum
Lumens
12,800
Standards
ETL Listed for US & Canada
Heat Pattern Coverage @ Floor (12 Ft.)
15 x 14
Watts Delivered/Sq.-Ft. 12
8
Amps @ 1 Phase
7.70/3.30 A
Number of Lamps
1
Heater Voltage
208/277VAC
BtuH Output
5460
Watts Delivered/Sq.-Ft. 10
10
Heat Pattern Coverage @ Floor (10 Ft.)
13 x 12
Includes
(3) 24 in Lead Wires
Electric Heater Item
Electric Infrared Heater, Without Lamp
Electric Heater Phase
1
Heater Mounting Type
Suspended
Beam Pattern
60 Degrees
Indoor/Outdoor Usage
Indoor Only
Radiant Efficiency
96 %
Infrared Electromagnetic Wave Type
Short Wave
Amperage
3.3A/7.7A
Housing Color
Silver
Electrical Connection
Hardwired
Heating Capacity
5,461 BTU
Frequency
50/60 Hz
Reflector Material
Aluminum, Coilzak
Housing Material, Housing Color
Aluminum, Silver
Wattage Output
1600W, 900W
Heater Mounting Position
Horizontal Burn
For Use Outdoors
Indoor Only
Max. Operating Temp.
Varies, based on distance from target & mounting height
Heating Method
Radiant
Brightness
12,300 lm
Voltage, Phase
277V AC, 1-phase
NEMA Plug Configuration
Hardwired
Mobility
Stationary
Housing Finish
Bright
For Use Indoors/Outdoors
Indoor Only
Control Type
None
Programming Capability
Non-Programmable
For Location
Indoor
Duty Rating
Commercial Grade
Operating Temperature - Maximum
Varies, based on distance from target & mounting height
Thermostat Included
Thermostat Not Included

Description

Electric Infrared Heater, Overall Length 24 in, Overall Width 3 3/4 in, Overall Depth 3 3/8 in, Phase 1, Voltage 277V AC, Wattage Output 900W/1600W, Beam Pattern 60 Degrees , Element Type Quartz Lamp, Housing Color Silver, Housing Material Aluminum, Mounting Type Surface, Suspended, Heating Capacity 5,461 BtuH, Heating Method Radiant, Housing Finish Bright, Electrical Connection Hardwired, Frequency 50/60Hz, Amperage 3.3A/7.7A, NEMA Plug Configuration Hardwired
