This item is Discontinued.

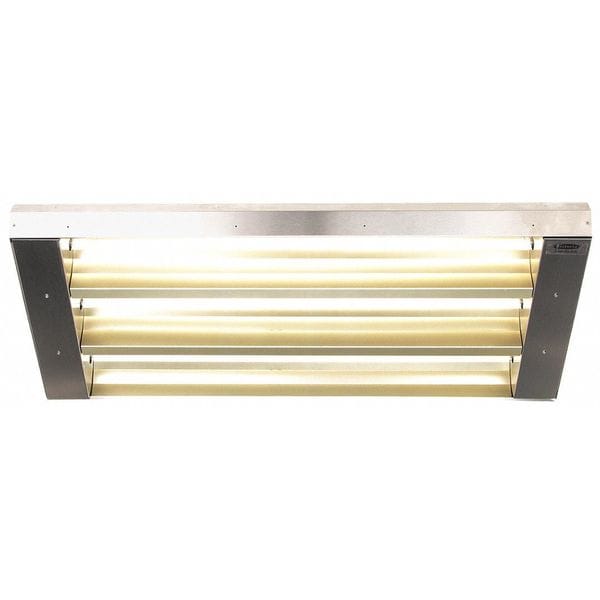

Fostoria Electric Infrared Heater, Ceiling, Suspended, 304 Stainless Steel 463-90-THSS-480V

Electric Infrared Heater, Ceiling, Suspended, 304 Stainless Steel (Discontinued)

  • Mfr # 463-90-THSS-480V
  • Zoro # G3141406
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
463-90-THSS-480V
Zoro #
G3141406
UPC #
686334810937
Country of Origin
United States

Dimensions

Length
46"
Height
11"
Width
21-1/2"
Overall Length
46 in
Overall Width
21 1/2 in
Overall Dimensions - L x W x D
46 in x 21-1/2 in x 11 in
Overall Depth
11 in

Details

Indoor/Outdoor Usage
Indoor/Outdoor
Electric Heater Item
Electric Infrared Heater
Heater Mounting Type
Ceiling, Suspended
Includes
(6) High Temperature Leads, 3 in Spacer Brackets, Elements
Watts
10,950
Item
Electric Infrared Heater
BtuH Output
37,361
Heater Voltage
480VAC
Electric Heater Phase
1/3
Number of Lamps
3
Beam Pattern
90 Degrees
Cord Type
Hard Wired
Standards
ETL Listed for US & Canada
Element Type
Quartz Lamp
Watts Delivered/Sq.-Ft. 12
16.2
Infrared Electromagnetic Wave Type
Short Wave
Heat Pattern Coverage @ Floor (8 Ft.)
19 x 17
Housing Material
304 Stainless Steel
Amps @ 1 Phase
22.90
Finish
Stainless Steel
Lumens
87,600
Radiant Efficiency
96 %
Heat Pattern Coverage @ Floor (10 Ft.)
23 x 21
Watts Delivered/Sq.-Ft. 10
22.7
Watts Delivered/Sq.-Ft. 8
33.9
Amps @ 3 Phase
13.20
Heat Pattern Coverage @ Floor (12 Ft.)
27 x 25
Voltage
480V AC
Phase
1 or 3
NEMA Plug Configuration
Hardwired
Wattage Output
10,950W
Housing Color
Silver
Housing Material, Housing Color
304 Stainless Steel, Silver
Mobility
Stationary
Housing Finish
Stainless Steel
Voltage, Phase
480V AC, 1 or 3-phase
Brightness
87,600 lm
Reflector Material
Aluminum, Gold Anodized
Heating Method
Radiant
Heater Mounting Position
Horizontal Burn
Amperage
13.2A/22.9A
For Use Outdoors
Indoor/Outdoor
Frequency
50/60Hz
Electrical Connection
Hardwired
Max. Operating Temp.
Varies, based on distance from target & mounting height
Heating Capacity
37,372 BtuH
For Use Indoors/Outdoors
Indoor/Outdoor

Description

Electric Infrared Heater, Overall Length 46 in, Overall Width 21 1/2 in, Overall Depth 11 in, Phase 1 or 3, Voltage 480V AC, Wattage Output 10,950W, Beam Pattern 90 Degrees , Element Type Quartz Lamp, Housing Color Silver, Housing Material 304 Stainless Steel, Mounting Type Recessed, Surface, Suspended, Heating Capacity 37,372 BtuH, Heating Method Radiant, Housing Finish Stainless Steel, Electrical Connection Hardwired, Frequency 50/60Hz, Amperage 13.2A/22.9A, NEMA Plug Configuration Hardwired
