Shop FRIEDRICH

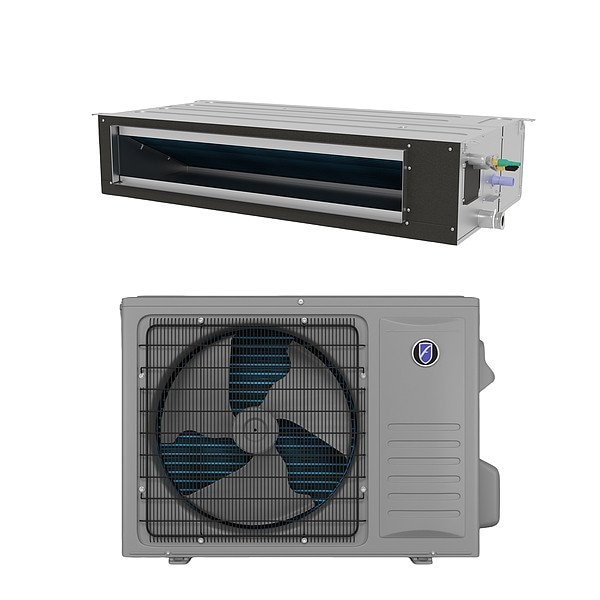

Mini-Split Air Hand/Cond, 30000 BtuH

  • Mfr # FPHD243D

  • Zoro # G415773749

product price:  $4,642.99
/ea
Additional $110.00 delivery surcharge applies per item.
See details

Key Features

Cooling Capacity
9,000 BtuH
SEER
19
Voltage
208/230V AC
Operation Mode - HVAC
Cooling/Heating
For Use With
FPHFR24A3D
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FPHD243D
Zoro #
G415773749
UPC #
724587448764
Country of Origin
China

Dimensions

Outdoor Height
29 1/2 in
Outdoor Depth
13 3/8 in
Outdoor Width
35 3/8 in
Liquid Line Size
3/8 in
Manufacturers Warranty Length
7 yr, 10 yr
Max. Line Length - Total System
164 ft
Suction Line Size
5/8 in
Indoor Head Depth
27 1/2 in
Indoor Head Width
47 1/4 in
For Line Length - Minimum
25 ft
Indoor Head Height
9 5/8 in

Details

Cooling Capacity
9,000 BtuH
SEER
19
Voltage
208/230V AC
Operation Mode - HVAC
Cooling/Heating
For Use With
FPHFR24A3D
Item
Mini-Split Air Handler/Condenser
HSPF
10 BTU/Wh
EER
11.8
Hz
60 Hz
Includes
Wall Controller
Standards
ENERGY STAR(R) Certified
Watts
2,020 W
Refrigerant Precharge
74.1 oz
Seasonal Energy Efficiency Ratio 2 (SEER2) Rating
19.0
Heat Pump Heating Capacity - Minimum
7,600 BtuH
Refrigerant Type
R-454B
Heating Watts
2,000 W
Amps
8.74 A, 8.91 A
Compressor Technology
Variable Output (Inverter)
Heating Capacity - Heat Pump
24,000 BtuH
Indoor Head Mounting
Concealed Duct
Includes Air Filter
Air Filter Included
Control Type
Electronic
Power Source
Hardwired
Compressor Type
Rotary
Heating Method
Heat Pump
Coverage Area - Maximum
1,500 sq ft
Control Location
Wall Thermostat
Remote Control Functions
Fan Speed, On/Off, Temperature
Number Of Indoor Units Supported
1
Filter Performance Rating
Odor Removal
Compatible Air Handler Manufacturer Model Number
FPHFD24A3D
Airflow
559 cfm, 647 cfm, 735 cfm
Programming Capability
Weekly Schedules
Number of Speeds
Variable
Coverage Area - Minimum
1,400 sq ft
Outdoor Sound Level
58 dBA
Cooling Capacity - Maximum
30,000 BtuH
Seacoast Corrosion Protection
Rear Coil
Includes Filtration
Air Filtering
Power Source - TS Only
Hardwired

Description

Mini-Split Air Handler/Condenser, Concealed Duct, Number Of Indoor Units Supported 1, Operation Mode - HVAC Cooling/Heating, 9,000 BtuH, Heating Method Heat Pump, Heating Capacity - Electric Not Applicable, Heating Capacity - Heat Pump 24,000 BtuH, Heating Watts 2,000 W, 19 SEER, 11.8 EER, 10 BTU/Wh HSPF, 8.74 A, 8.91 A Amps, 208/230V AC, 60 Hz Hz, Control Type Electronic, Programming Capability Weekly Schedules, Remote Control Functions Fan Speed, On/Off, Temperature

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
Hazardous material
This item has been restricted from sale in the following states: QC
