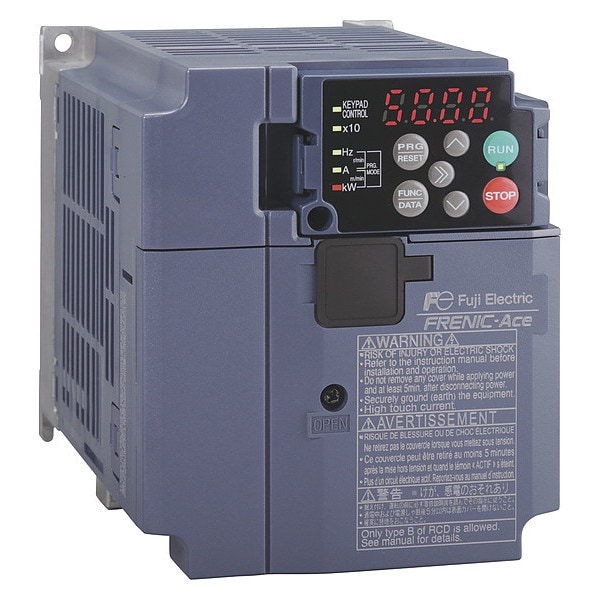

Fuji Electric Drive, Max HP 1, Enclosure NEMA 1 FRN0004E2S-2GB - main

Drive, Max HP 1, Enclosure NEMA 1

  • Mfr # FRN0004E2S-2GB

  • Zoro # G6555451

product price: $272.50
/ea
Free Shipping & Returns

Key Features

With Line Contactor / No Line Contactor
No Line Contactor
For Use With
3-Phase Input Drive
Output Voltage
240V AC
Torque @ 1 Hz
150%
Input Voltage
230V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
FRN0004E2S-2GB
Zoro #
G6555451
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Width
2.68 in
Depth
3.94 in
Height
5.0 in
Overall Depth
4 in
Overall Height
5 in
Overall Width
2 3/4 in

Details

With Line Contactor / No Line Contactor
No Line Contactor
For Use With
3-Phase Input Drive
Output Voltage
240V AC
Torque @ 1 Hz
150%
Input Voltage
230V AC
Item
Inverter
Key Pad Lockout
Password Lockout
Control Type
Remote Keypad, Communication Option Adapter
Digital Readout
Output Current, Output Voltage , Calculated torque [%], Input power [kW], Timer (Timer operation)[s], Load factor [%], Motor output [kW]
Displays
System Operation and Associated Value Conversion, Status of I/O, Operations and Alarms
Display Type
LED
Max. HP
1 hp
Input Frequency
50/60 Hz
Dynamic Braking
Yes
Output Frequency Range
500 Hz
Start/Stop Control
Programmable
Standards
UL/cUL 508C C22.2 No.14, CE, RoHs, GOST-R, KC
Protection
Auto-reset, Auto-restart after momentary power failure, Droop control, Overload stopping
With Bypass / No Bypass
No Bypass
Input Phase AC
Three
Adjustable Deceleration Time
0 to 6,000 sec
Output Phase AC
Three
Control Method
V/F Control (IM), Dynamic Torque Vector Control (IM), V/F Control with Slip Compensation (IM), V/F Control with Encoder Option (IM), Vector Control with Encoder Option (IM), Sensor less Vector Control (PMSM)
Adjustable Acceleration Time
0 to 6,000 sec
Max. Output Amps
3.5 A
Enclosure
Open
Accepts Input Control Signal
Remote Contact
Starting Torque
200%
Number of Outputs
(3) Digital; (2) Analog
Input Type
Analog, Digital
Brake Chopper Included
Yes
Style
Heat Sink
Output Type
Analog, Digital
Number of Inputs
(5) Digital; (2) Analog
Ethernet Port Included
No
Torque Application
Constant Torque, Variable Torque
Enclosure Rating
NEMA 1
Color
Blue
Application
Fans, Pumps, Wire Drawing
Series
FRENIC - ACE
Input Voltage Range
200V-240V AC +10% / -15%
Maximum Output Power
1 hp
Output Voltage Range
0V AC to 230V AC
Maximum Output Current
3.5 A

Description

Inverter, Input Voltage 230V AC, Input Phase AC Three, Input Frequency 50/60 Hz, Maximum Output Power 1 hp, Maximum Output Current 3.5 A, Output Voltage 240V AC, Output Phase AC Three, Output Frequency Range 500 Hz, Enclosure Rating NEMA 1
