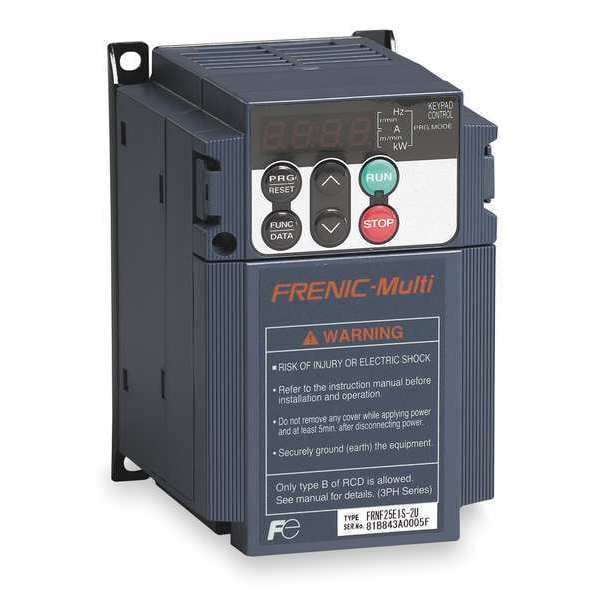

Fuji Electric Variable Frequency Drive, 7.5HP, 200-230V FRN007E1S-2U

Variable Frequency Drive, 7.5HP, 200-230V (Discontinued)

  • Mfr # FRN007E1S-2U
  • Zoro # G2338323
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
FRN007E1S-2U
Zoro #
G2338323
UPC #
-
Country of Origin
Multiple

Dimensions

Depth
6.22 in
Width
1.09 in
Height
8.66 in

Details

Item
Variable Frequency Drive
Max. HP
7-1/2
Input Voltage
240V AC
Output Voltage
240V AC
Input Phase AC
3
Enclosure
Open
Max. Output Amps
25
Output Phase AC
3
With Bypass / No Bypass
No Bypass
With Line Contactor / No Line Contactor
No Line Contactor
Displays
RPM
Input Frequency
50/60 Hz
Dynamic Braking
Yes
Digital Readout
Yes
Torque @ 1 Hz
200%
Protection
Over breaking, Overvoltage, Under voltage, Motor Thermal Overload, Drive Thermal Overload, Phase to Phase or Phase to Ground Short Circuit, Phase Failure
Accepts Input Control Signal
Yes
Adjustable Acceleration Time
0 to 3600 sec
Adjustable Deceleration Time
0 to 3600 sec
Control Type
Keypad/Remote
For Use With
3-Phase Inverter Duty Motor
Output Frequency Range
0 to 400 Hz
Standards
UL, CSA, CE
Key Pad Lockout
Yes
Start/Stop Control
Programmable
Display Type
LED
Starting Torque
200%

Description

Variable Frequency Drive, Input Voltage 240V AC, Input Phase AC 3, Input Frequency 50/60 Hz, Output Voltage 240V AC, Output Phase AC 3, Output Frequency Range 0 to 400 Hz
