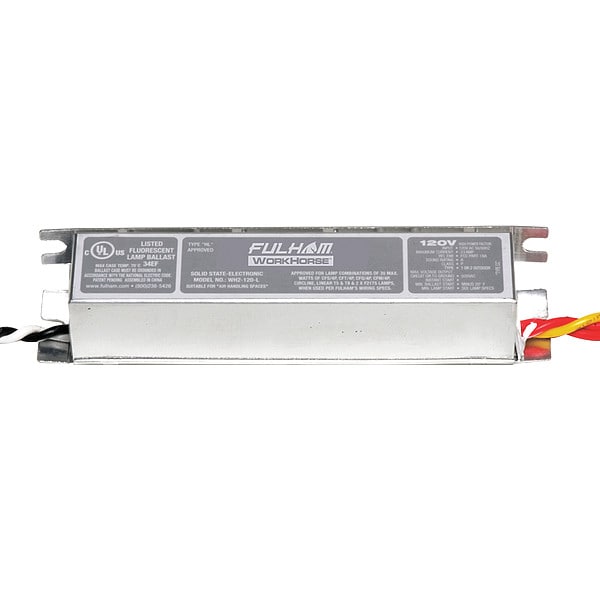

Fulham 5 to 35 Watts, 1 or 2 Lamps, Electronic Ballast WH2-120-L - main

5 to 35 Watts, 1 or 2 Lamps, Electronic Ballast

  • Mfr # WH2-120-L

  • Zoro # G9123082

product price: $29.29
/ea

Key Features

Ballast Lamp Type
Compact Fluorescent, 2D, T5, T5HO, T6, T8, T9, T12
Ballast Max. Number of Lamps
2
Input Voltage
120V AC
Ballast Voltage
120
Ballast Start Type
Instant
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
WH2-120-L
Zoro #
G9123082
UPC #
872180100050
Country of Origin
China

Dimensions

Width
1 in
Height
1 in
Length
5 1/2 in

Details

Item
Fluorescent Ballast
Ballast Lamp Type
Compact Fluorescent, 2D, T5, T5HO, T6, T8, T9, T12
Ballast Max. Number of Lamps
2
Input Voltage
120V AC
Ballast Voltage
120
Ballast Start Type
Instant
Ballast Dimming
No
Ballast Item
Electronic Ballast
Ballast Type
Electronic
Ballast Max. Lamp Watts
35
Ballast Dimming Type
No Dimming
Input Watts
11 to 38 W
Ballast Family
WorkHorse
Number of F28T5 Lamps
1
Number of F24T5 Lamps
1
Number of F32T8 Lamps
1
Power Factor
Greater Than 0.98
Number of F20T12 Lamps
1
Total Harmonic Distortion
Less Than 38.7%
Ballast Lamp Watts
35
Number of F13T8 Lamps
1
Ballast Factor
0.87
Number of F15T8 Lamps
1
Amps AC
0.3 A
Number of F30T8 Lamps
1
Number of F17T8 Lamps
1
Number of F32T8(28W) Lamps
1
Number of F14T5 Lamps
1 or 2
Number of F18/19T8 Lamps
1
Light Output
Normal
Number of F32T8(26W) Lamps
1
Wiring Type
Parallel
Number of F21T5 Lamps
1 or 2
Number of F32T8(30W) Lamps
1
Number of F28T8 Lamps
1
Number of F25T8 Lamps
1
Min. Starting Temp.
-22 Degrees F
Number of F32T8U Lamps
1
Standards
ANSI C82.11-1993, FCC Part 18-A, UL Listed
Voltage
120
Fixture Ballast Type
Electronic
Ballast Bulb Type
DBX, T12, T5, T6, T8, T8U
Starter Required
No
Number of F14/15T8 Lamps
1
Number of F15T12 Lamps
1
Max. Bulb Watts
13 W, 14 W, 15 W, 17 W, 18 W, 19 W, 20 W, 24 W, 25 W, 28 W, 30 W, 32 W, 42 W
Number of F14T12 Lamps
1
Number of F13DBX Lamps
1
Sockets Included
No
Thermal Protection
Class P
Brand and Series
WorkHorse
Operating Amps @ 120V
0.33 A
Number of F42T6 Lamps
1
Frequency
50/60 Hz
Number of Bulbs Supported
1, 2
Number of F14/15T12 Lamps
1
Number of F13T5 Lamps
1 or 2
Dimming Range
No Dimming
Number of F8T5 Lamps
1 or 2
Dimming Method
No Dimming
Dimming Type
No Dimming
Number of F6T5 Lamps
1 or 2
Number of F4T5 Lamps
1 or 2
Dimming
No
Lamp Types Supported
(1 or 2) F14T5, (1) F13DBX, (1) F13T8, (1) F14T12, (1) F14T8, (1) F15T12, (1) F15T8, (1) F17T8, (1) F18T8, (1) F19T8, (1) F20T12, (1) F24T5, (1) F25T8, (1) F28T5, (1) F28T8, (1) F30T8, (1) F32T8, (1) F32T8U, (1) F42T6

Description

WorkHorse, Electronic, Fluorescent Ballast, Ballast Start Type Instant, Input Voltage 120V AC, Number of Bulbs Supported 1, 2, Max. Bulb Watts 13 W, 14 W, 15 W, 17 W, 18 W, 19 W, 20 W, 24 W, 25 W, 28 W, 30 W, 32 W, 42 W, Ballast Bulb Type DBX, T12, T5, T6, T8, T8U, Dimming No, Dimming Type No Dimming, Dimming Method No Dimming, Dimming Range No Dimming, Min. Starting Temp. -22 Degrees F
