  9. 5 to 35 Watts, 1 or 2 Lamps, Electronic Ballast

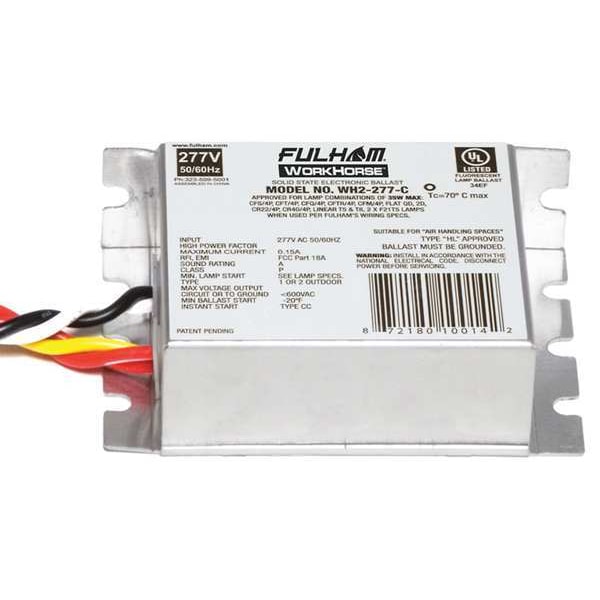

Fulham 5 to 35 Watts, 1 or 2 Lamps, Electronic Ballast WH2-277-C - main

5 to 35 Watts, 1 or 2 Lamps, Electronic Ballast

  • Mfr # WH2-277-C

  • Zoro # G9363837

product price: $27.29
/ea

Key Features

Ballast Lamp Type
Compact Fluorescent, 2D, T5, T5HO, T6, T8, T9, T12
Ballast Max. Number of Lamps
2
Input Voltage
277V AC
Ballast Voltage
277
Ballast Start Type
Instant
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
WH2-277-C
Zoro #
G9363837
UPC #
872180100142
Country of Origin
China

Dimensions

Length
3 5/16 in
Height
1 in
Width
1 3/4 in

Details

Ballast Lamp Type
Compact Fluorescent, 2D, T5, T5HO, T6, T8, T9, T12
Item
Fluorescent Ballast
Ballast Max. Number of Lamps
2
Input Voltage
277V AC
Ballast Voltage
277
Ballast Start Type
Instant
Ballast Dimming
No
Ballast Item
Electronic Ballast
Ballast Type
Electronic
Ballast Max. Lamp Watts
35
Ballast Dimming Type
No Dimming
Input Watts
11 to 39 W
Ballast Family
WorkHorse
Number of F28T5 Lamps
1
Number of F21T5 Lamps
1 or 2
Ballast Lamp Watts
35
Min. Starting Temp.
-22 Degrees F
Ballast Factor
0.9
Number of F14T5 Lamps
1 or 2
Number of F20T12 Lamps
1
Number of F24T5 Lamps
1
Number of F15T8 Lamps
1
Number of F32T8U Lamps
1
Number of F32T8(26W) Lamps
1
Light Output
Normal
Number of F17T8 Lamps
1
Number of F28T8 Lamps
1
Number of F18/19T8 Lamps
1
Wiring Type
Parallel
Total Harmonic Distortion
Less Than 38.7%
Number of F32T8(28W) Lamps
1
Number of F32T8(30W) Lamps
1
Number of F13T8 Lamps
1
Amps AC
0.1 A
Number of F30T8 Lamps
1
Power Factor
Greater Than 0.98
Number of F25T8 Lamps
1
Number of F32T8 Lamps
1
Standards
ANSI C82.11-1993, FCC Part 18-A, UL Listed
Voltage
277
Fixture Ballast Type
Electronic
Ballast Bulb Type
DBX, T12, T5, T6, T8, T8U
Number of F4T5 Lamps
1 or 2
Number of F6T5 Lamps
1 or 2
Max. Bulb Watts
13 W, 14 W, 15 W, 17 W, 18 W, 19 W, 20 W, 24 W, 25 W, 28 W, 30 W, 32 W, 42 W
Number of F8T5 Lamps
1 or 2
Number of F13T5 Lamps
1
Sockets Included
No
Thermal Protection
Class P
Number of F14/15T8 Lamps
1
Dimming Type
No Dimming
Number of F15T12 Lamps
1
Number of F14T12 Lamps
1
Dimming Method
No Dimming
Brand and Series
WorkHorse
Number of Bulbs Supported
1, 2
Dimming Range
No Dimming
Operating Amps @ 120V
0.15 A
Frequency
50/60 Hz
Number of F14/15T12 Lamps
1
Starter Required
No
Number of F13DBX Lamps
1
Number of F42T6 Lamps
1
Dimming
No
Hz
50/60
Lamp Types Supported
(1 or 2) F14T5, (1) F13DBX, (1) F13T8, (1) F14T12, (1) F14T8, (1) F15T12, (1) F15T8, (1) F17T8, (1) F18T8, (1) F19T8, (1) F20T12, (1) F24T5, (1) F25T8, (1) F28T5, (1) F28T8, (1) F30T8, (1) F32T8, (1) F32T8U, (1) F42T6

Description

WorkHorse, Electronic, Fluorescent Ballast, Ballast Start Type Instant, Input Voltage 277V AC, Number of Bulbs Supported 1, 2, Max. Bulb Watts 13 W, 14 W, 15 W, 17 W, 18 W, 19 W, 20 W, 24 W, 25 W, 28 W, 30 W, 32 W, 42 W, Ballast Bulb Type DBX, T12, T5, T6, T8, T8U, Dimming No, Dimming Type No Dimming, Dimming Method No Dimming, Dimming Range No Dimming, Min. Starting Temp. -22 Degrees F
