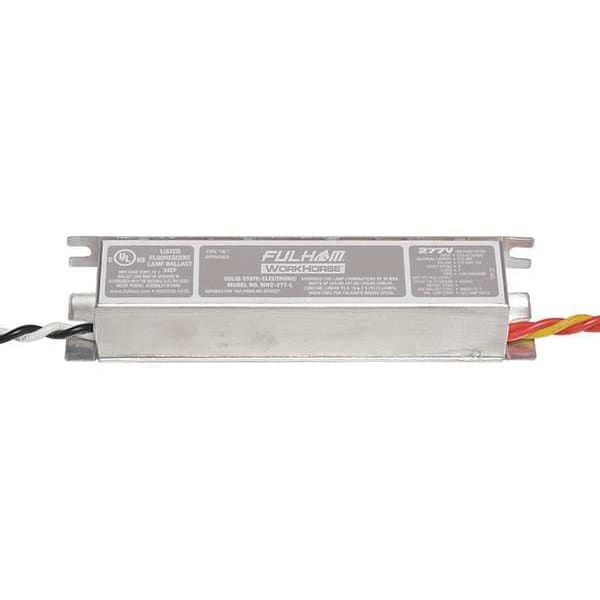

Fulham 5 to 35 Watts, 1 or 2 Lamps, Electronic Ballast WH2-277-L - main

5 to 35 Watts, 1 or 2 Lamps, Electronic Ballast

  • Mfr # WH2-277-L

  • Zoro # G9123091

product price: $26.29
/ea

Key Features

Ballast Lamp Type
Compact Fluorescent, 2D, T5, T5HO, T6, T8, T9, T12
Ballast Max. Number of Lamps
2
Input Voltage
277V AC
Ballast Voltage
277
Ballast Start Type
Instant
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
WH2-277-L
Zoro #
G9123091
UPC #
872180100159
Country of Origin
China

Dimensions

Width
1 in
Length
5 1/2 in
Height
1 in

Details

Item
Fluorescent Ballast
Ballast Lamp Type
Compact Fluorescent, 2D, T5, T5HO, T6, T8, T9, T12
Ballast Max. Number of Lamps
2
Input Voltage
277V AC
Ballast Voltage
277
Ballast Start Type
Instant
Ballast Dimming
No
Ballast Item
Electronic Ballast
Ballast Max. Lamp Watts
35
Ballast Type
Electronic
Ballast Dimming Type
No Dimming
Input Watts
11 to 39 W
Ballast Family
WorkHorse
Number of F32T8(26W) Lamps
1
Ballast Lamp Watts
35
Number of F17T8 Lamps
1
Number of F21T5 Lamps
1 or 2
Power Factor
Greater Than 0.98
Total Harmonic Distortion
Less Than 38.7%
Number of F24T5 Lamps
1
Number of F32T8(28W) Lamps
1
Amps AC
0.1 A
Number of F15T8 Lamps
1
Number of F32T8U Lamps
1
Number of F14T5 Lamps
1 or 2
Number of F18/19T8 Lamps
1
Min. Starting Temp.
-22 Degrees F
Wiring Type
Parallel
Number of F20T12 Lamps
1
Number of F32T8(30W) Lamps
1
Number of F28T8 Lamps
1
Number of F25T8 Lamps
1
Ballast Factor
0.9
Number of F13T8 Lamps
1
Number of F32T8 Lamps
1
Number of F30T8 Lamps
1
Light Output
Normal
Number of F28T5 Lamps
1
Standards
ANSI C82.11-1993, FCC Part 18-A, UL Listed
Voltage
277
Fixture Ballast Type
Electronic
Ballast Bulb Type
DBX, T12, T5, T6, T8, T8U
Number of F14T12 Lamps
1
Thermal Protection
Class P
Number of F6T5 Lamps
1 or 2
Number of F13DBX Lamps
1
Number of F13T5 Lamps
1
Dimming Method
No Dimming
Brand and Series
WorkHorse
Dimming Range
No Dimming
Number of F14/15T12 Lamps
1
Number of F15T12 Lamps
1
Number of F14/15T8 Lamps
1
Frequency
50/60 Hz
Number of F42T6 Lamps
1
Dimming Type
No Dimming
Number of F4T5 Lamps
1 or 2
Number of F8T5 Lamps
1 or 2
Number of Bulbs Supported
1, 2
Sockets Included
No
Starter Required
No
Max. Bulb Watts
13 W, 14 W, 15 W, 17 W, 18 W, 19 W, 20 W, 24 W, 25 W, 28 W, 30 W, 32 W, 42 W
Operating Amps @ 120V
0.15 A
Dimming
No
Hz
50/60
Lamp Types Supported
(1 or 2) F14T5, (1) F13DBX, (1) F13T8, (1) F14T12, (1) F14T8, (1) F15T12, (1) F15T8, (1) F17T8, (1) F18T8, (1) F19T8, (1) F20T12, (1) F24T5, (1) F25T8, (1) F28T5, (1) F28T8, (1) F30T8, (1) F32T8, (1) F32T8U, (1) F42T6

Description

WorkHorse, Electronic, Fluorescent Ballast, Ballast Start Type Instant, Input Voltage 277V AC, Number of Bulbs Supported 1, 2, Max. Bulb Watts 13 W, 14 W, 15 W, 17 W, 18 W, 19 W, 20 W, 24 W, 25 W, 28 W, 30 W, 32 W, 42 W, Ballast Bulb Type DBX, T12, T5, T6, T8, T8U, Dimming No, Dimming Type No Dimming, Dimming Method No Dimming, Dimming Range No Dimming, Min. Starting Temp. -22 Degrees F

Restrictions

WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
