  9. 5 to 35 Watts, 1 or 2 Lamps, Electronic Ballast

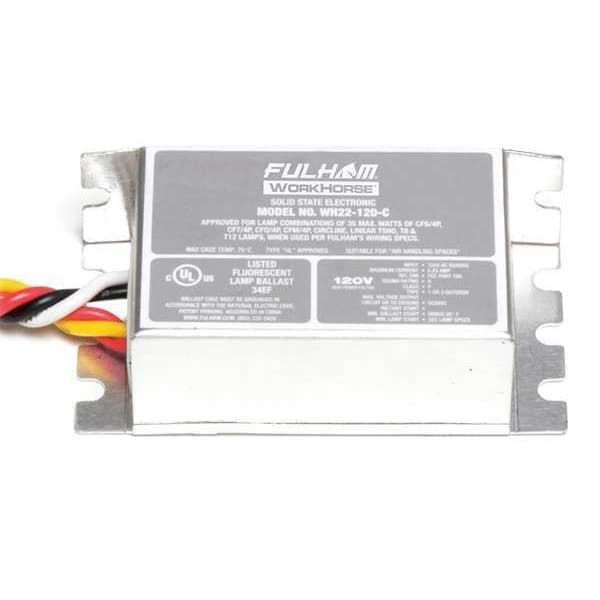

Fulham 5 to 35 Watts, 1 or 2 Lamps, Electronic Ballast WH22-120-C - main

5 to 35 Watts, 1 or 2 Lamps, Electronic Ballast

  • Mfr # WH22-120-C

  • Zoro # G9363855

product price: $26.79
/ea

Key Features

Ballast Lamp Type
Compact Fluorescent, 2D, T5, T5HO, T8, T9, T12
Ballast Max. Number of Lamps
2
Input Voltage
120V AC
Ballast Voltage
120
Ballast Start Type
Instant
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
WH22-120-C
Zoro #
G9363855
UPC #
872180100074
Country of Origin
China

Dimensions

Height
1 in
Length
3 5/16 in
Width
1 3/4 in

Details

Ballast Lamp Type
Compact Fluorescent, 2D, T5, T5HO, T8, T9, T12
Item
Fluorescent Ballast
Ballast Max. Number of Lamps
2
Input Voltage
120V AC
Ballast Voltage
120
Ballast Start Type
Instant
Ballast Dimming
No
Ballast Item
Electronic Ballast
Ballast Type
Electronic
Ballast Max. Lamp Watts
35
Ballast Dimming Type
No Dimming
Input Watts
24 to 28 W
Ballast Family
WorkHorse
Ballast Factor
1.1
Light Output
Normal
Wiring Type
Parallel
Number of F30T12 Lamps
1
Number of F20T12 Lamps
1
Number of F24T5 Lamps
1
Number of F25T12 Lamps
1
Number of FC12T5 Lamps
1
Total Harmonic Distortion
30 %
Number of F18/19T8 Lamps
1
Number of F13T8 Lamps
1
Min. Starting Temp.
-22 Degrees F
Number of F17T8 Lamps
2
Ballast Lamp Watts
35
Amps AC
0.2 A
Number of F30T8 Lamps
1
Number of F15T8 Lamps
1 or 2
Power Factor
Greater Than 0.98
Voltage
120
Standards
ANSI C82.11-1993, FCC Part 18-A, UL Listed
Fixture Ballast Type
Electronic
Ballast Bulb Type
CFQ, CFT, DBX, T12, T5, T5-Circuline, T8
Starter Required
No
Number of F14/15T8 Lamps
1
Sockets Included
No
Number of F14/15T12 Lamps
1
Number of F14T12 Lamps
1
Number of F13DBX Lamps
1 or 2
Max. Bulb Watts
12 W, 13 W, 14 W, 15 W, 17 W, 18 W, 19 W, 20 W, 24 W, 25 W, 30 W
Dimming Range
No Dimming
Brand and Series
WorkHorse
Operating Amps @ 120V
0.25 A
Frequency
50/60 Hz
Number of F15T12 Lamps
1
Thermal Protection
Class P
Dimming Method
No Dimming
Number of Bulbs Supported
1, 2
Dimming Type
No Dimming
Dimming
No
Hz
50/60
Lamp Types Supported
(1 or 2) F13DBX, (1 or 2) F15T8, (1) F13T8, (1) F14T12, (1) F14T8, (1) F15T12, (1) F18T8, (1) F19T8, (1) F20T12, (1) F24T5, (1) F25T12, (1) F30T12, (1) F30T8, (1) FC12T5, (2) F17T8

Description

WorkHorse, Electronic, Fluorescent Ballast, Ballast Start Type Instant, Input Voltage 120V AC, Number of Bulbs Supported 1, 2, Max. Bulb Watts 12 W, 13 W, 14 W, 15 W, 17 W, 18 W, 19 W, 20 W, 24 W, 25 W, 30 W, Ballast Bulb Type CFQ, CFT, DBX, T12, T5, T5-Circuline, T8, Dimming No, Dimming Type No Dimming, Dimming Method No Dimming, Dimming Range No Dimming, Min. Starting Temp. -22 Degrees F

Restrictions

WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
