  9. 5 to 35 Watts, 1 or 2 Lamps, Electronic Ballast

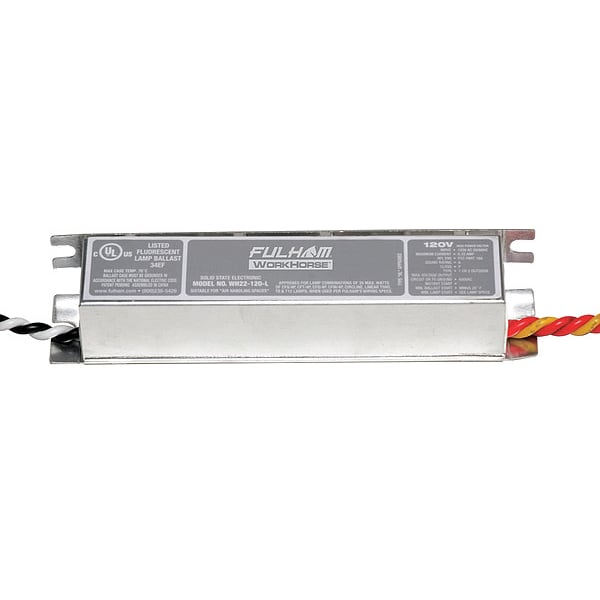

Fulham 5 to 35 Watts, 1 or 2 Lamps, Electronic Ballast WH22-120-L - main

5 to 35 Watts, 1 or 2 Lamps, Electronic Ballast

  • Mfr # WH22-120-L

  • Zoro # G9363846

product price: $28.59
/ea

Key Features

Ballast Lamp Type
Compact Fluorescent, 2D, T5, T5HO, T8, T9, T12
Ballast Max. Number of Lamps
2
Input Voltage
120V AC
Ballast Voltage
120
Ballast Start Type
Instant
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
WH22-120-L
Zoro #
G9363846
UPC #
872180100081
Country of Origin
China

Dimensions

Length
5 1/2 in
Height
1 in
Width
1 in

Details

Item
Fluorescent Ballast
Ballast Lamp Type
Compact Fluorescent, 2D, T5, T5HO, T8, T9, T12
Ballast Max. Number of Lamps
2
Input Voltage
120V AC
Ballast Voltage
120
Ballast Start Type
Instant
Ballast Dimming
No
Ballast Item
Electronic Ballast
Ballast Max. Lamp Watts
35
Ballast Type
Electronic
Ballast Dimming Type
No Dimming
Input Watts
24 to 32 W
Ballast Family
WorkHorse
Number of F13T8 Lamps
1
Wiring Type
Parallel
Ballast Lamp Watts
35
Min. Starting Temp.
-22 Degrees F
Number of F17T8 Lamps
2
Number of FC12T5 Lamps
1
Light Output
Normal
Number of F20T12 Lamps
1
Total Harmonic Distortion
30 %
Number of F30T12 Lamps
1
Number of F25T12 Lamps
1
Number of F24T5 Lamps
1
Ballast Factor
0.8
Number of F15T8 Lamps
1 or 2
Power Factor
Greater Than 0.98
Amps AC
0.2 A
Number of F18/19T8 Lamps
1
Number of F30T8 Lamps
1
Voltage
120
Standards
ANSI C82.11-1993, FCC Part 18-A, UL Listed
Fixture Ballast Type
Electronic
Ballast Bulb Type
CFQ, CFT, DBX, T12, T5, T5-Circuline, T8
Sockets Included
No
Dimming Type
No Dimming
Operating Amps @ 120V
0.25 A
Number of Bulbs Supported
1, 2
Number of F14/15T12 Lamps
1
Number of F14T12 Lamps
1
Number of F14/15T8 Lamps
1
Number of F13DBX Lamps
1 or 2
Number of F15T12 Lamps
1
Dimming Range
No Dimming
Thermal Protection
Class P
Starter Required
No
Dimming Method
No Dimming
Frequency
50/60 Hz
Brand and Series
WorkHorse
Max. Bulb Watts
12 W, 13 W, 14 W, 15 W, 17 W, 18 W, 19 W, 20 W, 24 W, 25 W, 30 W
Dimming
No
Hz
50/60
Lamp Types Supported
(1 or 2) F13DBX, (1 or 2) F15T8, (1) F13T8, (1) F14T12, (1) F14T8, (1) F15T12, (1) F18T8, (1) F19T8, (1) F20T12, (1) F24T5, (1) F25T12, (1) F30T12, (1) F30T8, (1) FC12T5, (2) F17T8

Description

WorkHorse, Electronic, Fluorescent Ballast, Ballast Start Type Instant, Input Voltage 120V AC, Number of Bulbs Supported 1, 2, Max. Bulb Watts 12 W, 13 W, 14 W, 15 W, 17 W, 18 W, 19 W, 20 W, 24 W, 25 W, 30 W, Ballast Bulb Type CFQ, CFT, DBX, T12, T5, T5-Circuline, T8, Dimming No, Dimming Type No Dimming, Dimming Method No Dimming, Dimming Range No Dimming, Min. Starting Temp. -22 Degrees F
