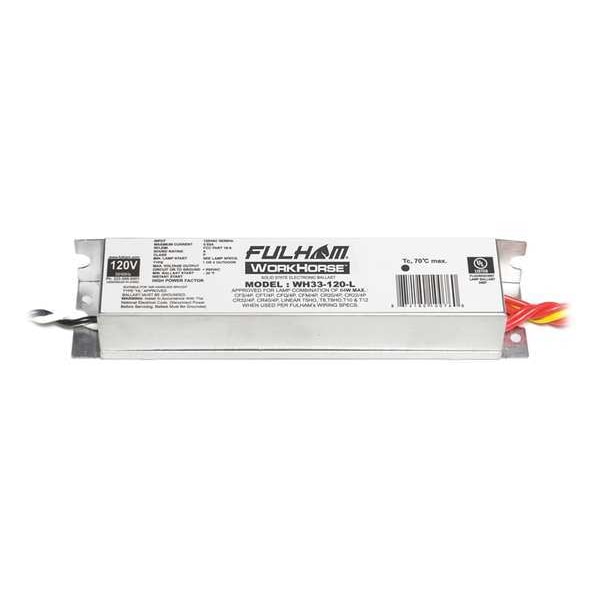

Fulham 5 to 64 Watts, 1, 2, 3, or 4 Lamps, Electronic Ballast WH33-120-L - main

5 to 64 Watts, 1, 2, 3, or 4 Lamps, Electronic Ballast

  • Mfr # WH33-120-L

  • Zoro # G9363891

product price: $31.49
/ea

Key Features

Ballast Lamp Type
Compact Fluorescent, 2D, T5, T5HO, T8, T8HO, T9, T10, T12, T12HO
Ballast Max. Number of Lamps
4
Input Voltage
120V AC
Ballast Voltage
120
Ballast Start Type
Instant
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
WH33-120-L
Zoro #
G9363891
UPC #
872180100760
Country of Origin
China

Dimensions

Length
6 1/2 in
Height
1 in
Width
1 1/2 in

Details

Ballast Lamp Type
Compact Fluorescent, 2D, T5, T5HO, T8, T8HO, T9, T10, T12, T12HO
Item
Fluorescent Ballast
Ballast Max. Number of Lamps
4
Input Voltage
120V AC
Ballast Voltage
120
Ballast Start Type
Instant
Ballast Dimming
No
Ballast Item
Electronic Ballast
Ballast Type
Electronic
Ballast Max. Lamp Watts
64
Ballast Dimming Type
No Dimming
Input Watts
28 to 65 W
Ballast Family
WorkHorse
Number of F40T12 Lamps
1
Number of F39T5 Lamps
1
Wiring Type
Parallel
Total Harmonic Distortion
38 %
Number of F13T8 Lamps
1, 2 or 3
Number of F42/F48T12 Lamps
1
Min. Starting Temp.
-22 Degrees F
Number of F42/F48T12 Lamps
1
Number of F25T12 Lamps
1 or 2
Number of F60/F64T12 Lamps
1
Number of F18/19T8 Lamps
1 or 2
Number of F15T8 Lamps
2, 3, or 4
Number of F48T12 Lamps
1
Number of F17T8 Lamps
3 or 4
Number of F34T12 Lamps
1
Number of F40BX Lamps
1
Number of F24/F36T12 Lamps
1 or 2
Number of F72T12 Lamps
1
Ballast Lamp Watts
64
Number of F40T12 U-Bend Lamps
1
Number of F24/F36T12 Lamps
1 or 2
Power Factor
Greater Than 0.98
Amps AC
0.5 A
Number of F54T5 Lamps
1
Number of F24T5 Lamps
1 or 2
Number of FC12T5 Lamps
1 or 2
Number of F48T8 Lamps
1
Number of F30T8 Lamps
1 or 2
Number of F60T8 Lamps
1
Number of F20T12 Lamps
1 or 2
Number of F60/F64T12 Lamps
1
Light Output
Normal
Number of F55BX Lamps
1
Number of F30T12 Lamps
1 or 2
Ballast Factor
0.8
Number of F40T10 Lamps
1
Number of F50BX Lamps
1
Standards
ANSI C82.11-1993, UL Listed
Voltage
120
Fixture Ballast Type
Electronic
Ballast Bulb Type
BX, DBX, T10, T12, T12U, T5, T8
Dimming Type
No Dimming
Max. Bulb Watts
13 W, 14 W, 15 W, 17 W, 24 W, 25 W, 34 W, 39 W, 40 W, 44 W, 45 W, 50 W, 54 W, 55 W, 60 W, 75 W, 80 W, 85 W
Number of F14T12 Lamps
1 or 2
Number of F42T12 Lamps
1
Number of F14/15T8 Lamps
2
Number of F15T12 Lamps
2 or 3
Number of F36T12 Lamps
1
Starter Required
No
Dimming Method
No Dimming
Dimming Range
No Dimming
Number of F13DBX Lamps
2, 3, or 4
Number of F14/15T12 Lamps
2
Sockets Included
No
Brand and Series
WorkHorse
Number of Bulbs Supported
1, 2, 3, 4
Thermal Protection
Class P
Frequency
50/60 Hz
Operating Amps @ 120V
0.56 A
Dimming
No
Hz
50/60
Lamp Types Supported
(1 or 2) F24T12, (1 or 2) F25T12, (1 or 2) F36T12, (1) F34T12, (1) F36T12, (1) F39T5, (1) F40BX, (1) F40T10, (1) F40T12, (1) F40T12U, (1) F42T12, (1) F48T12, (1) F48T8, (1) F50BX, (1) F55BX, (1) F60T12, (1) F60T8, (1) F64T12, (1) F72T12, (2, 3 or 4) F13DBX, (2, 3 or 4) F15T8, (2) F14T12, (2) F14T8, (2) F15T12, (3 or 4) F17T8

Description

WorkHorse, Electronic, Fluorescent Ballast, Ballast Start Type Instant, Input Voltage 120V AC, Number of Bulbs Supported 1, 2, 3, 4, Max. Bulb Watts 13 W, 14 W, 15 W, 17 W, 24 W, 25 W, 34 W, 39 W, 40 W, 44 W, 45 W, 50 W, 54 W, 55 W, 60 W, 75 W, 80 W, 85 W, Ballast Bulb Type BX, DBX, T10, T12, T12U, T5, T8, Dimming No, Dimming Type No Dimming, Dimming Method No Dimming, Dimming Range No Dimming, Min. Starting Temp. -22 Degrees F
