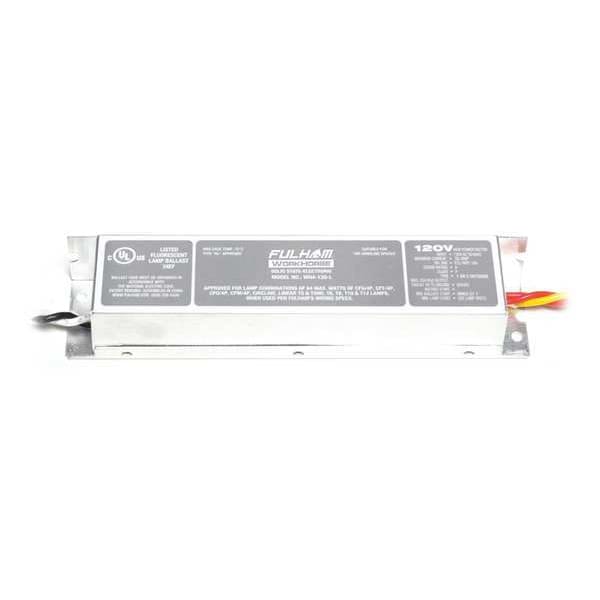

Fulham 5 to 70 Watts, 1 or 2 Lamps, Electronic Ballast WH4-120-L - main

5 to 70 Watts, 1 or 2 Lamps, Electronic Ballast

  • Mfr # WH4-120-L

  • Zoro # G9123116

product price: $29.69
/ea

Key Features

Ballast Lamp Type
Compact Fluorescent, 2D, T5, T5HO, T6, T8, T10, T12
Ballast Max. Number of Lamps
2
Input Voltage
120V AC
Ballast Voltage
120
Ballast Start Type
Instant
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
WH4-120-L
Zoro #
G9123116
UPC #
872180100777
Country of Origin
China

Dimensions

Length
6 1/2 in
Width
1 1/2 in
Height
1 in

Details

Ballast Lamp Type
Compact Fluorescent, 2D, T5, T5HO, T6, T8, T10, T12
Item
Fluorescent Ballast
Ballast Max. Number of Lamps
2
Input Voltage
120V AC
Ballast Voltage
120
Ballast Start Type
Instant
Ballast Dimming
No
Ballast Item
Electronic Ballast
Ballast Type
Electronic
Ballast Max. Lamp Watts
70
Ballast Dimming Type
No Dimming
Input Watts
23 to 62 W
Ballast Family
WorkHorse
Number of F32T8U Lamps
1
Number of F28T8 Lamps
1
Number of F28T5 Lamps
2
Ballast Lamp Watts
70
Number of F32T8 Lamps
1
Number of F30T12 Lamps
1
Number of F21T5 Lamps
2
Total Harmonic Distortion
33 %
Number of F39T5 Lamps
1
Number of F48T12 Lamps
1
Number of F50BX Lamps
1
Number of F17T8 Lamps
1
Number of F40T12 Lamps
1
Number of F40T12 U-Bend Lamps
1
Number of F34T12 Lamps
1
Number of F32T8(30W) Lamps
1
Min. Starting Temp.
-22 Degrees F
Number of F32T8(28W) Lamps
1
Number of F18/19T8 Lamps
1
Number of F24/F36T12 Lamps
1
Number of F40T8 Lamps
1
Light Output
Normal
Number of F15T8 Lamps
1
Number of F13T8 Lamps
1
Wiring Type
Parallel
Number of F32T8(26W) Lamps
1
Power Factor
Greater Than 0.98
Number of F24/F36T12 Lamps
1
Number of F25T8 Lamps
1
Amps AC
0.5 A
Number of F72T12 Lamps
1
Number of F40BX Lamps
1
Number of F40T10 Lamps
1
Number of F30T8 Lamps
1
Ballast Factor
0.93
Number of F60/F64T12 Lamps
1
Number of F72T8 Lamps
1 or 2
Number of F24T5 Lamps
1
Number of F60/F64T12 Lamps
1
Number of F14T5 Lamps
2
Number of F20T12 Lamps
1
Number of F35T5 Lamps
2
Standards
ANSI 62.41, FCC Part 18-A, UL Listed
Voltage
120
Fixture Ballast Type
Electronic
Ballast Bulb Type
BX, DBX, T10, T12, T12U, T5, T6, T8, T8U
Max. Bulb Watts
4 W, 6 W, 8 W, 13 W, 14 W, 15 W, 17 W, 18 W, 19 W, 20 W, 21 W, 24 W, 25 W, 28 W, 30 W, 32 W, 34 W, 35 W, 38 W, 39 W, 40 W, 45 W, 50 W, 60 W, 75 W, 80 W, 85 W, 100 W
Dimming Method
No Dimming
Starter Required
No
Number of F8T5 Lamps
2
Number of Bulbs Supported
1, 2
Number of F84T12 Lamps
1
Number of F4T5 Lamps
2
Thermal Protection
Class P
Number of F6T5 Lamps
2
Dimming Type
No Dimming
Number of F14/15T12 Lamps
1
Number of F42T6 Lamps
1 or 2
Number of F15T12 Lamps
1
Brand and Series
WorkHorse
Number of F13DBX Lamps
1
Frequency
50/60 Hz
Number of F14/15T8 Lamps
1
Sockets Included
No
Number of F14T12 Lamps
1
Dimming Range
No Dimming
Operating Amps @ 120V
0.56 A
Number of F64T6 Lamps
1 or 2
Dimming
No
Hz
50/60
Lamp Types Supported

Description

WorkHorse, Electronic, Fluorescent Ballast, Ballast Start Type Instant, Input Voltage 120V AC, Number of Bulbs Supported 1, 2, Max. Bulb Watts 4 W, 6 W, 8 W, 13 W, 14 W, 15 W, 17 W, 18 W, 19 W, 20 W, 21 W, 24 W, 25 W, 28 W, 30 W, 32 W, 34 W, 35 W, 38 W, 39 W, 40 W, 45 W, 50 W, 60 W, 75 W, 80 W, 85 W, 100 W, Ballast Bulb Type BX, DBX, T10, T12, T12U, T5, T6, T8, T8U, Dimming No, Dimming Type No Dimming, Dimming Method No Dimming, Dimming Range No Dimming, Min. Starting Temp. -22 Degrees F
