This item is Discontinued.

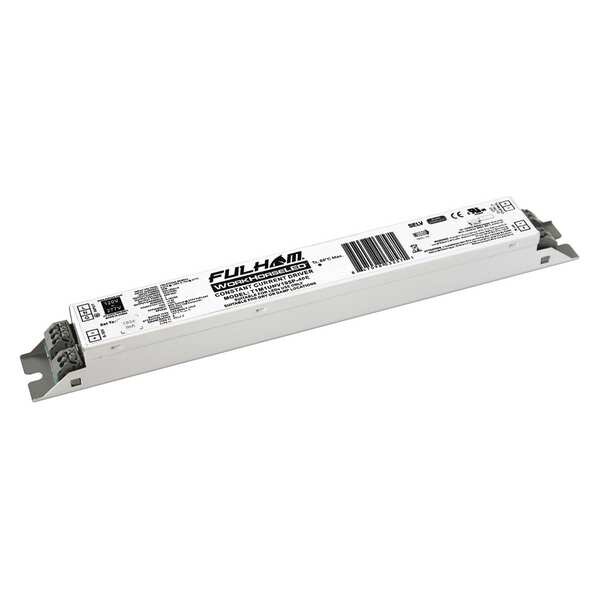

Fulham CC LED PD, 40W, Univ, 250-1050mA, 0-10V T1M1UNV105P-40E

CC LED PD, 40W, Univ, 250-1050mA, 0-10V (Discontinued)

  • Mfr # T1M1UNV105P-40E
  • Zoro # G1236337
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
T1M1UNV105P-40E
Zoro #
G1236337
UPC #
847098032571
Country of Origin
India

Dimensions

Length
10 13/16 in
Width
1 1/4 in
Height
1 in

Details

Item
LED Driver
Power Output
40W
Environmental Rating
Damp Location
For Use With
LED Lighting
Input Voltage
120 to 277V AC
Ballast Dimming
Yes
Input Power
47 W
Power Factor
Greater Than 0.92
Output Current
250 to 1050 mA
Input Current
0.41AAC/0.18AAC
Output Voltage
10 to 57V DC
Ambient Temp. Range
-40 Degrees to 140 Degrees F
Driver Mounting Location
Universal
Output Technology
Programmable
Dimming Method
0-10V
Max. Case Temp.
190 Degrees F
Total Harmonic Distortion
10 %
Brand and Series
WorkHorse
Dimming Type
Full Continuous Dimming
Intended LED Usage
Fixture Array
Dimming Range
100% to 0%
Profile
Standard Profile
Case Form Factor
Long
Ouput Constant
Constant Current
Driver Class
Class 2
Standards
UL Listed
Dimming
Yes
Number of Fixtures
1
Max. Ambient Temp.
140 Degrees F
Min. Ambient Temp.
-40 Degrees F
Input Current - Minimum
0.18 A
Input Current - Maximum
0.41 A
Power Output - Maximum
40 W
Power Factor - Minimum
0.92

Description

WorkHorse, LED Driver, Intended LED Usage Fixture Array, 120 to 277V AC Input Voltage, 10 to 57V DC Output Voltage, 0.41AAC/0.18AAC Input Current, 250 to 1050 mA Output Current, 47 W Input Power, 40W Power Output, 10 13/16 in Length, 1 1/4 in Width, 1 in Height, Case Form Factor Long, Standard Profile, Class 2
