  9. CFL Ballast, Electr, 120 to 277V, 5-1/16inL

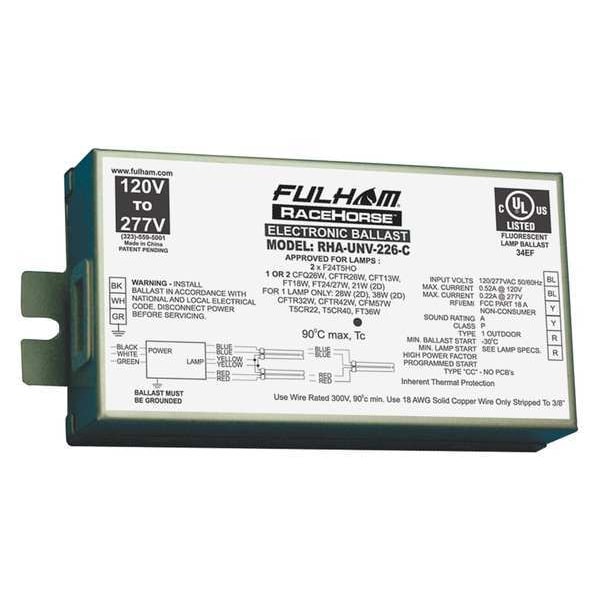

Fulham CFL Ballast, Electr, 120 to 277V, 5-1/16inL RHA-UNV-226-C - main

CFL Ballast, Electr, 120 to 277V, 5-1/16inL

  • Mfr # RHA-UNV-226-C

  • Zoro # G9363934

product price: $38.29
/ea

Key Features

Ballast Item
CFL Ballast
Ballast Type
Electronic
Ballast Lamp Type
Compact Fluorescent, 2D, T5, T5HO
Ballast Max. Lamp Watts
59
Ballast Voltage
120-277
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
RHA-UNV-226-C
Zoro #
G9363934
UPC #
847098007104
Country of Origin
China

Dimensions

Length
5 1/16 in
Height
1 in
Width
2 3/8 in

Details

Ballast Item
CFL Ballast
Ballast Type
Electronic
Ballast Lamp Type
Compact Fluorescent, 2D, T5, T5HO
Ballast Max. Lamp Watts
59
Ballast Voltage
120-277
Ballast Max. Number of Lamps
2
Ballast Start Type
Programmed
Ballast Dimming
No
Ballast Dimming Type
No Dimming
Input Watts
17 to 59W
Ballast Factor
0.88 to 1.44
Number of F282D/4P Lamps
1
Total Harmonic Distortion
10 %
Number of F212D Lamps
1 or 2
Number of F18DBX Lamps
0
Number of F40BX Lamps
0
Number of F13BX Lamps
1 or 2
Number of F282D Lamps
1
Item
CFL Ballast
Min. Starting Temp.
-22 Degrees F
Base Type
4 Pin
Number of F7BX Lamps
0
Ballast Lamp Watts
59
Special Features
Active Power Factor Correction, End of Life (EOL) Protection, Auto Restart, Cold Starting Feature, Universal Voltage
Number of F5BX Lamps
0
Number of F39BX Lamps
1
Power Factor
Greater than 0.98
Ballast Family
RaceHorse
Number of F55BX Lamps
0
Number of F26DBX Lamps
1 or 2
Number of F9BX Lamps
0
Light Output
Normal
Number of F18BX Lamps
2
Number of F162D Lamps
0
Wiring Type
Series
Number of F50BX Lamps
0
Number of F382D/4P Lamps
1
Number of F50T5 Lamps
0
Fixture Ballast Type
Electronic
Ballast Bulb Type
BX, T5, T5HO
Bulb Base Type
4-Pin
Number of Bulbs Supported
1, 2
Brand and Series
RaceHorse
Dimming Range
No Dimming
Max. Bulb Watts
18 W, 28 W, 38 W, 39 W
Max. Operating Temp.
194 Degrees F
Input Voltage
120 to 277V AC
Frequency
50/60 Hz
Dimming Type
No Dimming
Thermal Protection
Class P
Dimming Method
No Dimming
Starter Required
No
Includes
Wiring
Standards
ANSI C82.11-1993, UL & cULus Listed Type 1 Outdoor
Dimming
No
Lamp Types Supported
(1 or 2) CFQ26, (1 or 2) CFT13, (1 or 2) CFTR26, (1 or 2) F212D, (1 or 2) FT18, (1 or 2) FT24, (1 or 2) FT27, (1) CFM57, (1) CFTR32, (1) CFTR42, (1) F282D, (1) F382D, (1) FT36, (1) T5CR22, (1) T5CR40, (2) F24T5HO
Voltage
120 to 277

Description

RaceHorse, Electronic, CFL Ballast, Ballast Start Type Rapid, Input Voltage 120 to 277V AC, Number of Bulbs Supported 1, 2, Max. Bulb Watts 18 W, 28 W, 38 W, 39 W, Ballast Bulb Type BX, T5, T5HO, Dimming No, Dimming Type No Dimming, Dimming Method No Dimming, Dimming Range No Dimming, Min. Starting Temp. -22 Degrees F
