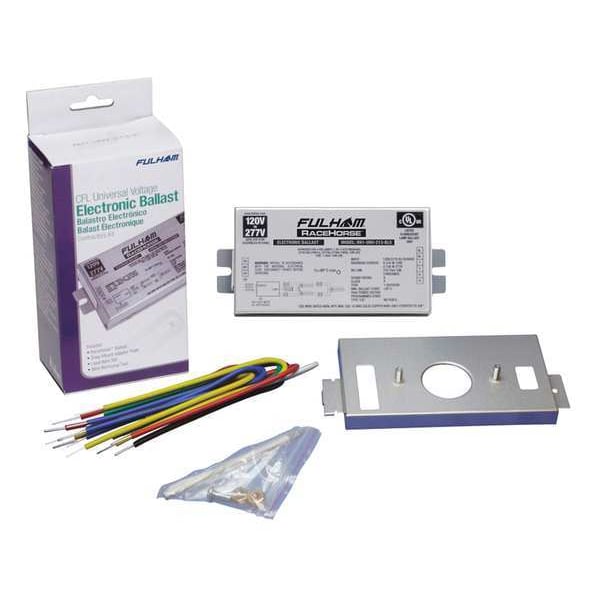

Fulham CFL Ballast Kit, Electr, 17to59W, 5-1/16inL RHA-UNV-226-K - main

CFL Ballast Kit, Electr, 17to59W, 5-1/16inL

  • Mfr # RHA-UNV-226-K

  • Zoro # G9123195

product price: $43.15
/ea

Key Features

Ballast Item
CFL Ballast Kit
Ballast Type
Electronic
Ballast Lamp Type
Compact Fluorescent, 2D, T5, T5HO
Ballast Max. Lamp Watts
59
Ballast Voltage
120-277
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
RHA-UNV-226-K
Zoro #
G9123195
UPC #
847098007111
Country of Origin
China

Dimensions

Height
1 in
Width
2 3/8 in
Length
5 1/16 in

Details

Ballast Item
CFL Ballast Kit
Ballast Type
Electronic
Ballast Lamp Type
Compact Fluorescent, 2D, T5, T5HO
Ballast Max. Lamp Watts
59
Ballast Voltage
120-277
Ballast Max. Number of Lamps
2
Ballast Start Type
Programmed
Ballast Dimming
No
Ballast Dimming Type
No Dimming
Input Watts
17 to 59W
Number of F212D Lamps
1 or 2
Ballast Family
RaceHorse
Number of F50BX Lamps
0
Ballast Factor
0.88 to 1.06
Number of F50T5 Lamps
0
Min. Starting Temp.
-22 Degrees F
Base Type
4 Pin
Number of F13BX Lamps
1 or 2
Number of F382D/4P Lamps
1
Item
CFL Ballast
Total Harmonic Distortion
10 %
Power Factor
Greater than 0.98
Number of F9BX Lamps
0
Number of F18DBX Lamps
0
Wiring Type
Series
Number of F55BX Lamps
0
Number of F5BX Lamps
0
Number of F282D Lamps
1
Number of F7BX Lamps
0
Number of F26DBX Lamps
1 or 2
Ballast Lamp Watts
59
Number of F39BX Lamps
1
Number of F40BX Lamps
0
Special Features
Active Power Factor Correction, End of Life (EOL) Protection, Auto Restart, Cold Starting Feature, Universal Voltage
Number of F282D/4P Lamps
1
Number of F162D Lamps
0
Number of F18BX Lamps
2
Light Output
Normal
Fixture Ballast Type
Electronic
Ballast Bulb Type
BX, T5, T5HO
Dimming Method
No Dimming
Max. Bulb Watts
18 W, 28 W, 38 W, 39 W
Dimming Type
No Dimming
Bulb Base Type
4-Pin
Thermal Protection
Class P
Includes
Wiring
Input Voltage
120 to 277V AC
Brand and Series
RaceHorse
Starter Required
No
Dimming Range
No Dimming
Standards
ANSI C82.11-1993, UL & cULus Listed Type 1 Outdoor
Number of Bulbs Supported
1, 2
Frequency
50/60 Hz
Max. Operating Temp.
194 Degrees F
Dimming
No
Voltage
120 to 277
Lamp Types Supported
(1 or 2) CFQ26, (1 or 2) CFT13, (1 or 2) CFTR26, (1 or 2) F212D, (1 or 2) FT18, (1 or 2) FT24, (1 or 2) FT27, (1) CFM57, (1) CFTR32, (1) CFTR42, (1) F282D, (1) F382D, (1) FT36, (1) T5CR22, (1) T5CR40, (2) F24T5HO

Description

RaceHorse, Electronic, CFL Ballast, Ballast Start Type Rapid, Input Voltage 120 to 277V AC, Number of Bulbs Supported 1, 2, Max. Bulb Watts 18 W, 28 W, 38 W, 39 W, Ballast Bulb Type BX, T5, T5HO, Dimming No, Dimming Type No Dimming, Dimming Method No Dimming, Dimming Range No Dimming, Min. Starting Temp. -22 Degrees F
