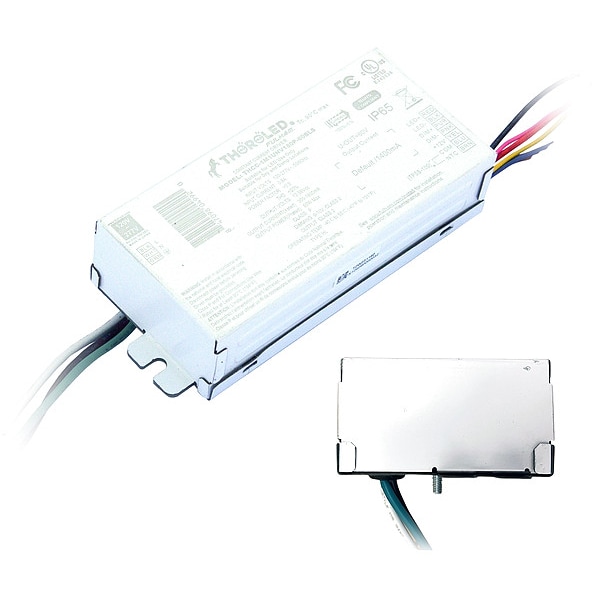

PROGRAMMABLELEDDRIVER, FULHAM, 0-10V, 1PK

  • Mfr # THCC-1M1UNV180P-60BLS
  • Zoro # G114802986
product price:
$
29.19
/ea

Key Features

Environmental Rating
Damp Location
Length
5 9/16 in
Width
2 3/8 in
Height
1 5/16 in
Input Voltage
120 to 277V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
THCC-1M1UNV180P-60BLS
Zoro #
G114802986
UPC #
847098049920
Country of Origin
China
Item
PROGRAMMABLE LED DRIVER
Environmental Rating
Damp Location
Input Voltage
120 to 277V AC
Input Power
67.4 W
Output Voltage
12 to 56V DC
Output Current
300 to 1,800 mA
Brand and Series
Thoroled
Driver Class
Class 2
Dimming Method
0-10V
Max. Ambient Temp.
131 Degrees F
Max. Case Temp.
194 Degrees F
Number of Bulbs Supported
6
Output Technology
Programmable
Warranty
5 yr
Dimming Type
Full Continuous Dimming
Power Output - Minimum
3.6 W
Total Harmonic Distortion
20 %
Frequency
50/60 Hz
Driver Life Expectancy
50,000 hr
Case Form Factor
Compact
Ouput Constant
Constant Current
Power Factor - Minimum
0.9
Standards
CSA C22.2 No. 250.13, cULus, FCC, RoHS, UL 8750 Recognized
Dimming Range
100% to 1%
Programming Method
Software
Input Current - Maximum
0.8 A
Driver Mounting Location
Remote Mount
Power Output - Maximum
60 W
Min. Ambient Temp.
-40 Degrees F
LED Driver Protection
Overload Protection, Overvoltage Protection, Short-Circuit Protection

Dimensions

Length
5 9/16 in
Width
2 3/8 in
Height
1 5/16 in

Description

Thoroled, PROGRAMMABLE LED DRIVER, Number of Bulbs Supported 6, 120 to 277V AC Input Voltage, 12 to 56V DC Output Voltage, 300 to 1,800 mA Output Current, 67.4 W Input Power, 5 9/16 in Length, 2 3/8 in Width, 1 5/16 in Height, Case Form Factor Compact, Class 2

Restrictions

WARNING: Cancer For more information go to www.P65Warnings.ca.gov
