  11. Class 2 Transformer, 75 VA, NEMA 1, 120V AC, 120/208/240/277/480V AC

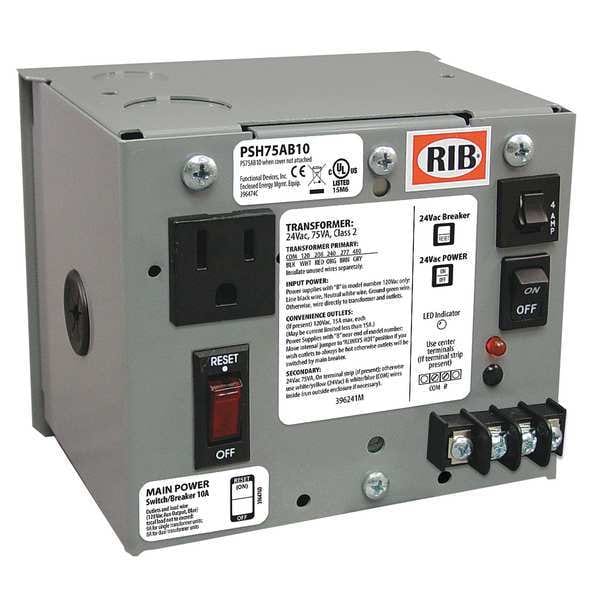

Functional Devices-Rib Class 2 Transformer, 75 VA, NEMA 1, 120V AC, 120/208/240/277/480V AC PSH75AB10 - main

Class 2 Transformer, 75 VA, NEMA 1, 120V AC, 120/208/240/277/480V AC

  • Mfr # PSH75AB10

  • Zoro # G6018993

product price: $268.99
/ea
Free Shipping & Returns

Key Features

Input Voltage - Transformer
120/208/240/277/480V AC
Output Voltage
120V AC
Power Rating
75 VA
Phase
1
Mounting - Transformer
Wall
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PSH75AB10
Zoro #
G6018993
UPC #
-
Country of Origin
United States

Dimensions

Overall Height
4 1/2 in
Overall Width
5.43 in
Overall Depth
4 1/2 in
Circuit Breaker Size
10 A

Details

Item
Class 2 Transformer
Input Voltage - Transformer
120/208/240/277/480V AC
Output Voltage
120V AC
Power Rating
75 VA
Phase
1
Mounting - Transformer
Wall
Hz - Electrical
50/60 Hz
NEMA Enclosure Rating
NEMA 1
Enclosure Finish
Powder Coated
Standards
CE, OSHPD Seismic Certified, RoHS, UL Class 2, UL Listed
Enclosure Type
Enclosed
Secondary Connection
Screw Terminals
Protective Device
Circuit Breaker
Primary Connection
Pigtails
Includes
10A Main Breaker Switch, 120V AC Convenience Outlets, Finger-Safe Terminals, LED Power Indicator, On/Off Control
Enclosure Style - Transformer
Enclosed
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Transformer
One 75 VA Split-Bobbin
Series
PSH75A Series
Approvals
Class 2 (UL Approved UL5085-3), UL916, C-UL, CE
Secondary Configuration
External Terminal Strip
Main Breaker on Input Power
10 Amp Switch / Breaker
24 Vac ON/OFF
On / Off Switch & Breaker
Number of Outputs
1
Overcurrent Protection
Circuit Breaker
Includes On/Off Switch
Individual Output On/Off Switch
Number of Convenience Outlets
1
Wire Connection Type
Screw Terminals
Housing Material
Metal
Temperature Rise
Not Rated

Description

Class 2 Transformer, 75 VA Rating, Input Voltage 120/208/240/277/480VAC, Output Voltage 24VAC, Multi Mounting, Protective Device Circuit Breaker, Primary Connection Pigtails, Secondary Connection Screw Terminals, 1 Phase, 50/60 Hz, Not Rated Temp. Rise, Enclosed Enclosure Type, Enclosure Rating NEMA 1, Enclosure Finish Powder Coated, Height 4.50 In., Depth 4.50 In., Width 5.43 In., Standards UL 5085-3, UL 916, cUL, CE, Special Seismic Certification of Equipment and Components: OSP-0201-10
