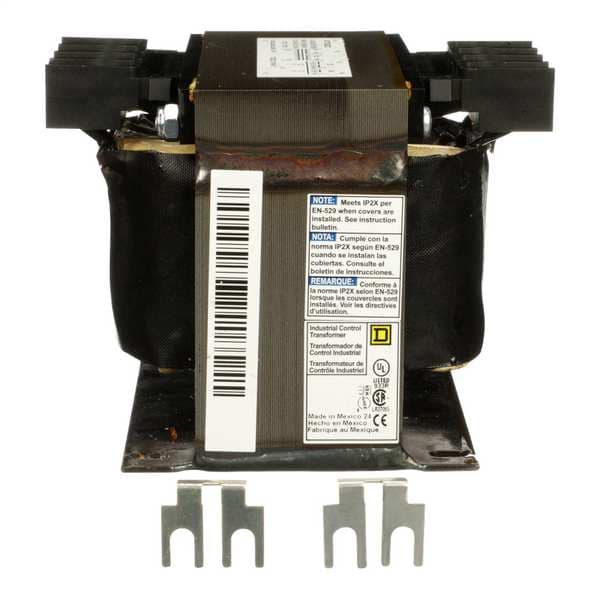

Control Transformer, 350 VA, Not Rated, 24V AC, 120/240V AC
- Mfr # 9070T350D23
- Zoro # G3234865
product price:Â
$
369.99
/ea
Free Shipping & Returns
Key Features
Input Voltage - Transformer
120V AC, 240V AC
Output Voltage
24V AC
Power Rating
350 VA
Phase
Single
Mounting - Transformer
Foot
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 9070T350D23
- Zoro #
- G3234865
- UPC #
- 785901907275
- Country of Origin
- Korea, Republic of
- Item
- Control Transformer
- Input Voltage - Transformer
- 120V AC, 240V AC
- Output Voltage
- 24V AC
- Power Rating
- 350 VA
- Phase
- Single
- Mounting - Transformer
- Foot
- Hz - Electrical
- 50/60 Hz
- NEMA Enclosure Rating
- Not Rated
- Temperature Rise
- 80 Degrees C
- Fused
- No
- Enclosure Style - Transformer
- Open
- Enclosure Finish
- Epoxy Resin Varnish
- Protective Device
- None
- Standards
- CSA File LR37055 Guide 184-N-90, REACH, RoHS, UL Listed File E61239
- Green Environmental Attribute
- Mercury Free; Pvc Free
- Secondary Connection
- Screw clamp terminals
- Winding Material - Transformer
- Copper
- Insulation Max. Temp.
- 130 °C
- Enclosure Type
- Open
- Primary Connection
- Screw clamp terminals
- Input Voltage
- 120V AC, 240V AC
- Frequency
- 50/60 Hz
- Enclosure Style
- Open
Dimensions
- Overall Height
- 3.84 in
- Overall Width
- 4.5 in
- Overall Depth
- 5.11 in
- Manufacturers Warranty Length
- 10 yr
Description
Control Transformer, Input Voltage - Transformer 120V AC, 240V AC, Output Voltage - Transformer 24V AC, VA Rating - Transformer 350 VA, Protective Device None, Enclosure Style - Transformer Open, Mounting - Transformer Foot, Phase - Electrical 1, Hz - Electrical 50 Hz, 60 Hz, Temp. Rise 80 Degrees C, Enclosure Finish Epoxy Resin Varnish
