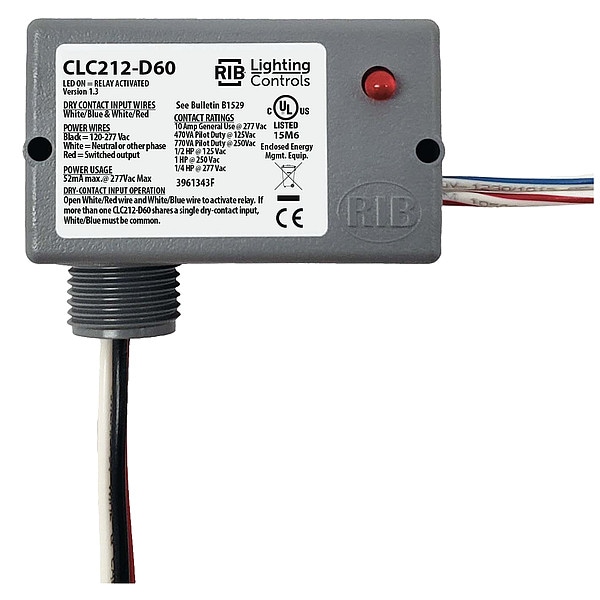

Functional Devices-Rib Closet Light Controller, Door, Gray, 120VAC CLC212-D60 - main

Closet Light Controller, Door, Gray, 120VAC

  • Mfr # CLC212-D60

  • Zoro # G6391926

product price:  $62.59
/ea

Key Features

HP @ 240V
1 hp
HP @ 120V
1/2 hp
Installation Type
New Construction Installation
Body Width - Relay
2.8 in
Overall Height - Relay
1.7 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
CLC212-D60
Zoro #
G6391926
UPC #
-
Country of Origin
United States

Dimensions

Body Width - Relay
2.8 in
Overall Height - Relay
1.7 in
Lead Length
16 in
Body Height - Relay
1.7 in
Body Depth - Relay
1.5 in
Body Width
1.7 in
Body Depth
1.5 in
Nipple Size
0.50 in NPT
Body Height
1.5 in
Lead Size
18 AWG
Overall Depth
1.5 in
Dimensions
1.5 in H x 1.7 in W x 2.8 in D (3.8 x 4.3 x 7.1 cm)

Details

Item
Enclosed Pre-Wired Relay
HP @ 240V
1 hp
HP @ 120V
1/2 hp
Installation Type
New Construction Installation
Application - Prewired Relay
Closet Light Controller
Hz - Electrical
50 Hz, 60 Hz
Features
Turns Light Off After 60 min If The Door is Left Open.
Standards
CE Certified, RoHS Compliant, UL Listed
Operating Temp.
-30 Degrees to 140 Degrees F
Voltage
120 to 277V
Indicator Type
LED
Coil Volts
120 to 277V AC
For Use With
Lighting
AC Contact Rating - Relay
10A @ 277V
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Item - Relay
Prewired Relay
Description/Special Features
Closet Light Controller is Designed for A Wide Variety of Applications Where The Load Status (On/Off) is Determined By The Opening or Closing of A Variety of Switches As In A Closet Door, Relay is Powered By Line Voltage and Can Switch Loads of 120V, When the Door Opens the Light Comes On, if Door is Left Open the Light times Off After 60 Minutes Without Closing the Door
Number of Buttons
0
Mounting - Relay
1/2 in Nipple, Surface
Power Consumption - Relay
14.4VA
Contact Form - Relay
SPST-NO
NEMA Enclosure Type
1
Type
Relay
Includes
Magnetic Switch, Retaining Clip
Coil Voltage
120-277V AC
Mechanical Operating Durability
10,000,000
Frequency
50/60 Hz
Delay Time
60 min
Operating Current
10 A at 120 to 277V AC
Horsepower @ 240V AC
1 hp
Sealing
Enclosed
NEMA Enclosure Rating
1
Contact Rating (AC)
10 A @ 277V
Current Rating
10 A
Maximum Operating Temperature
140 Degrees F
Input Voltage
120 to 277V AC
Status Indicator
LED Indicator
Horsepower @ 120V AC
1/2 hp
Power Consumption
14.4 VA
Minimum Operating Temperature
-30 Degrees F
Contact Form
SPST-NO
Mounting Style
Surface
Coil Rating
52 mA @ 277 Vac Max.
Approvals
CE Approved, UL Listed, C-UL
Mounting
1/2 in NPT Nipple Mount
Mechanical Life
10 Million Cycles Minimum
Contact Rating
10A
Contact Type
SPST
Housing Rating
NEMA 1, Plenum Rated
Coil Type
Continuous Duty Coil
Mounting Location
Hub Mount
Supply Voltage
120 VAC
Operating Temperature
-30 to 140 °F (-34 to 60 °C)
Operating Humidity
5 to 95% (noncondensing)

Description

Enclosed Pre-Wired Relay, Contact Form SPST-NO, Current Rating 10 A, Mounting Style Surface, Nipple Size 0.50 in NPT, Contact Rating (AC) 10 A @ 277V, Input Voltage 120 to 277V AC, NEMA Enclosure Rating 1, Body Depth 1.5 in, Body Height 1.5 in, Body Width 1.7 in, Delay Time 60 min, For Use With Lighting, Frequency 50/60 Hz, Horsepower @ 120V AC 1/2 hp, Horsepower @ 240V AC 1 hp, Includes Magnetic Switch, Retaining Clip, Lead Length 16 in, Lead Size 18 AWG
