Shop FUNCTIONAL DEVICES-RIB

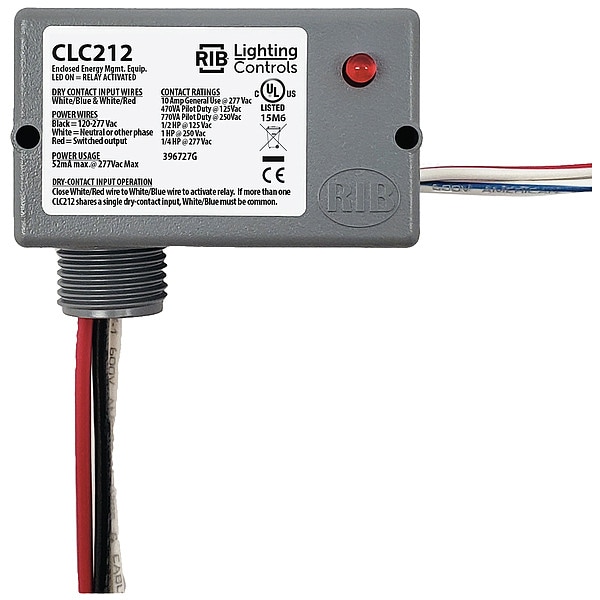

Closet Light Controller, Door, Gray, 120VAC

  • Mfr # CLC212

  • Zoro # G7028463

product price:
$
46.69
/ea

Key Features

Description/Special Features
Closet Light Controller is Designed for A Wide Variety of Applications Where The Load Status (On/Off) is Determined By The Opening or Closing of A Variety of Switches As In A Closet Door, Relay is Powered By Line Voltage and Can Switch Loads of 120V, Easily Fits Inside Junction Box, When The Magnet and Contact are Separated, Closet Light Turns On or Door is Closed Light is Off When Door is Opened Light Comes On
NEMA Enclosure Type
1
Standards
CE Certified, RoHS Compliant, UL Listed
Installation Type
New Construction Installation
Body Depth - Relay
1.5 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CLC212
Zoro #
G7028463
UPC #
-
Country of Origin
United States

Dimensions

Body Depth - Relay
1.5 in
Lead Length
16 in
Body Width - Relay
2.8 in
Body Height - Relay
1.7 in
Overall Height - Relay
1.7 in
Body Height
1.5 in
Nipple Size
0.50 in NPT
Body Width
1.7 in
Overall Depth
1.5 in
Lead Size
18 AWG
Body Depth
1.5 in

Details

Item
Enclosed Pre-Wired Relay
Description/Special Features
Closet Light Controller is Designed for A Wide Variety of Applications Where The Load Status (On/Off) is Determined By The Opening or Closing of A Variety of Switches As In A Closet Door, Relay is Powered By Line Voltage and Can Switch Loads of 120V, Easily Fits Inside Junction Box, When The Magnet and Contact are Separated, Closet Light Turns On or Door is Closed Light is Off When Door is Opened Light Comes On
NEMA Enclosure Type
1
Standards
CE Certified, RoHS Compliant, UL Listed
Installation Type
New Construction Installation
HP @ 240V
1 hp
Coil Volts
120 to 277V AC
Contact Form - Relay
SPST-NO
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Application - Prewired Relay
Closet Light Controller
AC Contact Rating - Relay
10A @ 277V
Item - Relay
Prewired Relay
Hz - Electrical
50 Hz, 60 Hz
Operating Temp.
-30 Degrees to 140 Degrees F
For Use With
Lighting
HP @ 120V
1/2 hp
Indicator Type
LED
Mounting - Relay
1/2 in Nipple, Surface
Number of Buttons
0
Voltage
120 to 277V
Power Consumption - Relay
12.0VA
Type
Relay
Features
Enclosed wireless relay with 20A contacts; Eliminates hard wiring; LED indication of relay status; Continuous duty coil
Horsepower @ 240V AC
1 hp
Minimum Operating Temperature
-30 Degrees F
Coil Voltage
120-277V AC
NEMA Enclosure Rating
1
Contact Form
SPST-NO
Maximum Operating Temperature
140 Degrees F
Sealing
Enclosed
Frequency
50/60 Hz
Status Indicator
LED Indicator
Current Rating
10 A
Input Voltage
120 to 277V AC
Horsepower @ 120V AC
1/2 hp
Mounting Style
Surface
Contact Rating (AC)
10 A @ 277V
Operating Current
10 A at 120 to 277V AC
Mechanical Operating Durability
10,000,000
Contact Rating
10A @ 277 VAC, 1/2 HP @ 125 VAC, 1 HP @ 250 VAC, 1/4 HP @ 277 VAC
Supply Voltage
120 VAC
Enclosure Rating
NEMA 1
Power Input
50 mA @ 240 VAC
Mounting Location
Hub Mount
Contact Type
1-SPST
LCD
Surface

Description

Enclosed Pre-Wired Relay, Coil Voltage 120-277V AC, Contact Form SPST-NO, Current Rating 10 A, Mounting Style Surface, Nipple Size 0.50 in NPT, Contact Rating (AC) 10 A @ 277V, Input Voltage 120 to 277V AC, NEMA Enclosure Rating 1, Body Depth 1.5 in, Body Height 1.5 in, Body Width 1.7 in, For Use With Lighting, Frequency 50/60 Hz, Horsepower @ 120V AC 1/2 hp, Horsepower @ 240V AC 1 hp, Lead Length 16 in, Lead Size 18 AWG, Maximum Operating Temperature 140 Degrees F
