Shop FUNCTIONAL DEVICES-RIB

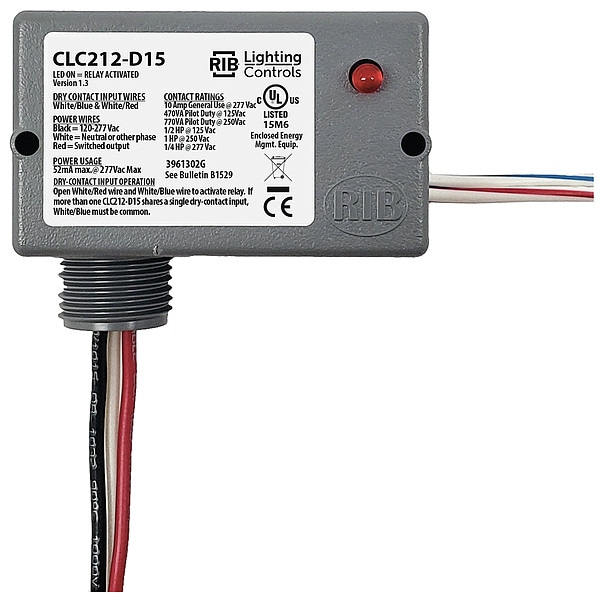

Closet Light Controller, Door, Gray, 120VAC

  • Mfr # CLC212-D15
  • Zoro # G6384576
product price:
$
65.59
/ea

Key Features

Hz - Electrical
50/60 Hz
Lead Length
16 in
Installation Type
New Construction Installation
Indicator Type
LED
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CLC212-D15
Zoro #
G6384576
UPC #
-
Country of Origin
United States

Dimensions

Lead Length
16 in
Body Height - Relay
1.7 in
Body Depth - Relay
1.5 in
Overall Height - Relay
1.7 in
Body Width - Relay
2.8 in
Body Height
1.5 in
Body Depth
1.5 in
Body Width
1.7 in
Nipple Size
0.50 in NPT
Lead Size
18 AWG
Overall Depth
1.5 in

Details

Item
Enclosed Pre-Wired Relay
Hz - Electrical
50/60 Hz
Installation Type
New Construction Installation
Indicator Type
LED
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Coil Volts
120V AC to 277V AC
Features
Turns Light Off After 15 min If The Door is Left Open.
HP @ 120V
1/2 hp
NEMA Enclosure Type
1
Mounting - Relay
1/2 in Nipple, Surface
Number of Buttons
0
Item - Relay
Prewired Relay
Standards
CE Certified, RoHS Compliant, UL Listed
Description/Special Features
Closet Light Controller is Designed for A Wide Variety of Applications Where The Load Status (On/Off) is Determined By The Opening or Closing of A Variety of Switches As In A Closet Door, Relay is Powered By Line Voltage and Can Switch Loads of 120V, Easily Fits Inside Junction Box, Includes Magnetic Door Switch, When The Magnet and Contact are Separated, Closet Light Turns On or Door is Closed Light is Off When Door is Opened Light Comes On
HP @ 240V
1 hp
Application - Prewired Relay
Closet Light Controller
For Use With
Lighting
Operating Temp.
-30 Degrees to 140 Degrees F
AC Contact Rating - Relay
10A @ 277V
Power Consumption - Relay
14.4VA
Contact Form - Relay
SPST-NO
Voltage
120V to 277V
Includes
Magnetic Switch, Retaining Clip
Status Indicator
LED Indicator
Delay Time
15 min
Contact Rating (AC)
10 A @ 277V
Sealing
Enclosed
Coil Voltage
120-277V AC
Power Consumption
14.4 VA
Mounting Style
Surface
Operating Current
10 A at 120 to 277V AC
NEMA Enclosure Rating
1
Horsepower @ 240V AC
1 hp
Contact Form
SPST-NO
Minimum Operating Temperature
-30 Degrees F
Maximum Operating Temperature
140 Degrees F
Mechanical Operating Durability
10,000,000
Input Voltage
120 to 277V AC
Frequency
50/60 Hz
Horsepower @ 120V AC
1/2 hp
Current Rating
10 A
Compatible Product Type
Lighting

Description

Enclosed Pre-Wired Relay, Coil Voltage 120-277V AC, Contact Form SPST-NO, Current Rating 10 A, Mounting Style Surface, Nipple Size 0.50 in NPT, Contact Rating (AC) 10 A @ 277V, Input Voltage 120 to 277V AC, NEMA Enclosure Rating 1, Body Depth 1.5 in, Body Height 1.5 in, Body Width 1.7 in, Delay Time 15 min, For Use With Lighting, Frequency 50/60 Hz, Horsepower @ 120V AC 1/2 hp, Horsepower @ 240V AC 1 hp, Includes Magnetic Switch, Retaining Clip, Lead Length 16 in, Lead Size 18 AWG
