Functional Devices-Rib D2421C Spdt Enclosed Pilot RIBD2421C

D2421C Spdt Enclosed Pilot (Discontinued)

  • Mfr # RIBD2421C
  • Zoro # G6962016
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
RIBD2421C
Zoro #
G6962016
UPC #
-
Country of Origin
United States

Dimensions

Dimensions
4.00" x 4.00" x 1.80" with .50" NPT nipple

Details

Temperature Timing Variance
+1%
Relay Status
RED LED On - Activated
Housing Rating
UL Accepted for Use in Plenum, NEMA 1
Operating Temperature
-30 to 140° F
Timing Repeatability
+1%
Expected Relay Life
10 million cycles minimum mechanical
Item
Time Delay Pilot Relay
Gold Flash
No
No. of Relays & Contact Type
One (1) SPDT Continuous Duty Coil
Recycle Time
750ms Maximum
Input Current
66 mA @ 24 Vac 38 mA @ 24 Vdc 40 mA @ 120-277 Vac
Approvals
UL Listed, UL916, UL864, C-UL
Timing Tolerance
Switches 1& 2 - +10% Switches 3 & 4 - +5%
Timing Range
6 seconds - 20 minutes
Contact Ratings
10 Amp General Use @ 277 Vac 10 Amp Resistive @ 30 Vdc (N/O) 7 Amp Resistive @ 30 Vdc (N/C) 1/2 HP @ 125 Vac 1 HP @ 250 Vac 1/4 HP @ 277 Vac C300 Pilot Duty
Operate Time
6ms after time delay
Timing Mode
Delay On Make (N/O)
Voltage Timing Variance
+1%
Time Delay Status
PINK LED FLASHING - Timing
Override Switch
No
Humidity Range
5 to 95% (noncondensing)
Coil Voltage Input
24 Vac/dc ; 120-277 Vac ; 50-60 Hz Drop Out - 3 Vac / 3.8 Vdc Pull In - 20 Vac / 20 Vdc
Wires
16", 600V Rated
Timing Adjustment
4 position DIP switch for range selection and single turn potentiometer for timing adjustment within range

Description

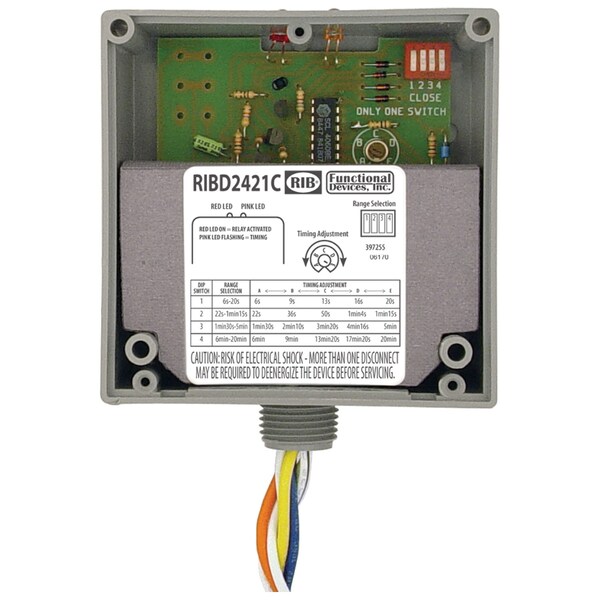

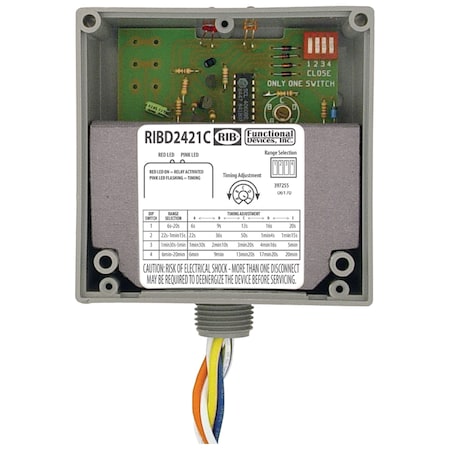

D2421C Spdt Enclosed Pilot Relay 10 Amp With 24Vac/Dc 120-277Vac Coil, Includes Timer
