  11. Enclosed Power Supply, 120V AC, 24V AC, 100VA
Functional Devices-Rib Enclosed Power Supply, 120V AC, 24V AC, 100VA PSH100A - main

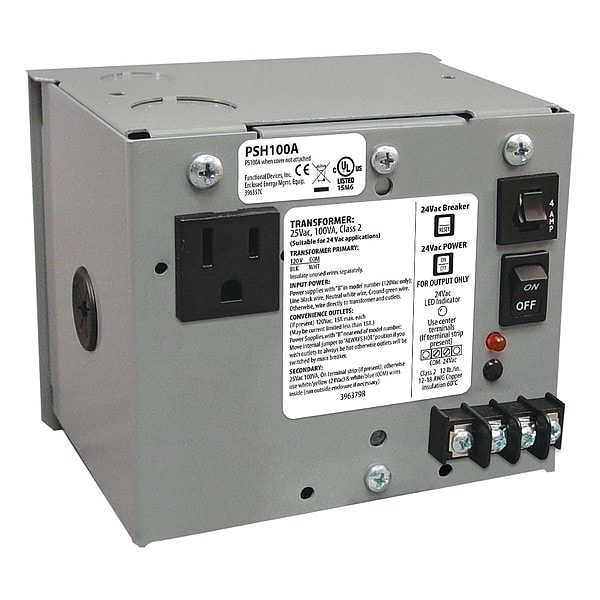

Enclosed Power Supply, 120V AC, 24V AC, 100VA

  • Mfr # PSH100A

  • Zoro # G3223390

product price: $145.99
/ea
Free Shipping & Returns

Key Features

Input Voltage
120V AC
Output Voltage - Nominal
24V AC
Output Power - Rated
100VA
Housing Material
Metal Case
Overall Height
5.438 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PSH100A
Zoro #
G3223390
UPC #
-
Country of Origin
United States

Dimensions

Overall Height
5.438 in
Overall Width
4-1/2 in
Overall Depth
4-1/2 in
Width
5.438 in
Height
4-1/2 in
Depth
4-1/2 in
Manufacturers Warranty Length
5 yr

Details

Item
Enclosed Power Supply
Input Voltage
120V AC
Output Voltage - Nominal
24V AC
Output Power - Rated
100VA
Housing Material
Metal Case
Power Rating
100VA
Series
PSH100A Series
Standards
CE, RoHS, UL
Case Material
Metal Case
Hz
50/60 Hz
Output Voltage
24V AC
Frequency
50/60 Hz
Max. Ambient Temperature
40° C
Approvals
Class 2 (UL Approved UL5085-3), UL916, UL508, C-UL, CE
Transformer
One 100 VA Split-Bobbin
Secondary Configuration
External Terminal Strip
Over Current Protection
Circuit Breaker
24 Vac ON/OFF
On / Off Switch & Breaker
Continuous Output Current
9 A

Description

Transformer
