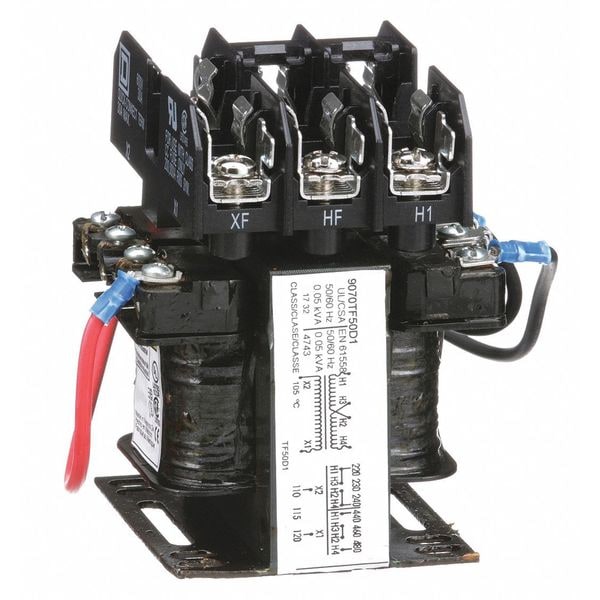

Control Transformer, 50 VA, Not Rated, 120V AC, 240/480V AC

  • Mfr # 9070TF50D1

  • Zoro # G1911987

CAD Available
product price:
$
166.32
/ea
Free Shipping & Returns

Key Features

CAD Drawing
Input Voltage - Transformer
240/480V AC
Output Voltage
110V AC, 115V AC, 120V AC
Power Rating
50 VA
Phase
Single
Mounting - Transformer
Foot
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
9070TF50D1
Zoro #
G1911987
UPC #
785901904779
Country of Origin
Korea, Republic of

Dimensions

Overall Height
4 in
Overall Width
3 in
Overall Depth
3.09 in
Manufacturers Warranty Length
18 mo
For Fuse Length
1 1/2 in
For Fuse Diameter
7/16 in

Details

CAD Available
Yes
Item
Control Transformer
Input Voltage - Transformer
240/480V AC
Output Voltage
110V AC, 115V AC, 120V AC
Power Rating
50 VA
Phase
Single
Mounting - Transformer
Foot
Hz - Electrical
50/60 Hz
NEMA Enclosure Rating
Not Rated
Temperature Rise
55 Degrees C
Protective Device
Primary and Secondary Fuse
Includes
Top Mounted Fuse Block
Enclosure Finish
Epoxy Resin Varnish
Fused
Yes
Enclosure Style - Transformer
Open
Standards
CSA File LR37055 Guide 184-N-90, REACH, RoHS, UL Listed File E61239
Green Environmental Attribute
Mercury Free; Pvc Free
Secondary Connection
Screw clamp terminals
Winding Material - Transformer
Copper
Insulation Max. Temp.
105 °C
Primary Connection
Screw clamp terminals
Enclosure Type
Open
For Fuse Class
CC
Frequency
50/60 Hz
Enclosure Style
Open
Input Voltage
220V AC, 230V AC, 240V AC, 440V AC, 460V AC, 480V AC

Description

Control Transformer, Input Voltage - Transformer 240V AC, 480V AC, Output Voltage - Transformer 120V AC, VA Rating - Transformer 50 VA, Protective Device Primary and Secondary Fuse, Enclosure Style - Transformer Open, Mounting - Transformer Foot, Phase - Electrical 1, Hz - Electrical 50 Hz, 60 Hz, Temp. Rise 55 Degrees C, Enclosure Finish Epoxy Resin Varnish
