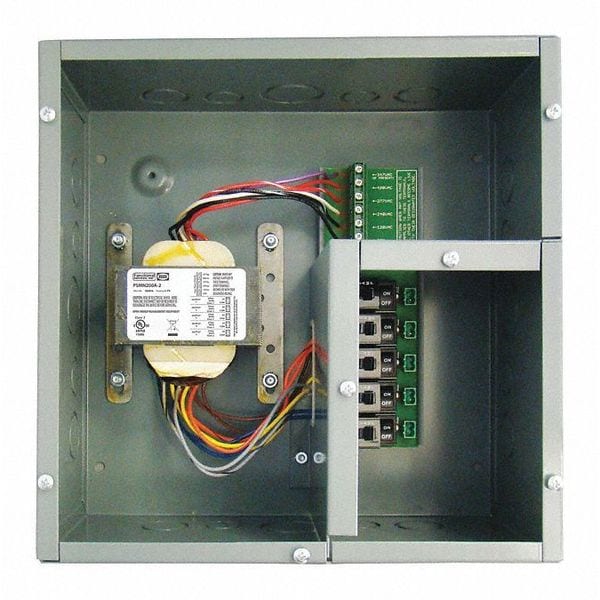

Enclosed Power Supply, 480/347/277/240/120V AC, 24V AC, 200VA

  • Mfr # PSH200A-LVC

  • Zoro # G3223643


product price: $727.99
/ea
Free Shipping & Returns

Key Features

Input Voltage
480/347/277/240/120V AC
Output Voltage - Nominal
24V AC
Output Power - Rated
200VA
Housing Material
Metal Case
Overall Height
12-1/8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PSH200A-LVC
Zoro #
G3223643
UPC #
-
Country of Origin
United States

Dimensions

Overall Height
12-1/8 in
Overall Width
12-1/8 in
Overall Depth
6 in
Depth
6 in
Height
12-1/8 in
Width
12-1/8 in

Details

Item
Enclosed Power Supply
Input Voltage
480/347/277/240/120V AC
Output Voltage - Nominal
24V AC
Output Power - Rated
200VA
Housing Material
Metal Case
Power Rating
200VA
Hz
50/60 Hz
Case Material
Metal Case
Output Voltage
24V AC
Standby Wattage
18.93 W @ 120 Vac 22.08 W @ 240 Vac 22.33 W @ 277 Vac 23.11 W @ 347 Vac 25.24 W @ 480 Vac
Over Current Protection
Circuit Breaker
Frequency
50/60 Hz
Full Load Primary Current
2.57 A @ 120 Vac 1.44 A @ 240 Vac 1.17 A @ 277 Vac 0.95 A @ 347 Vac 0.73 A @ 480 Vac
24 Vac ON/OFF
On / Off Switch & Breaker
Approvals
Class 2 (UL Approved UL5085-3), UL916, C-UL, CE
Housing
NEMA1 Metal Enclosure
5 Secondaries
24 Vac, with LED Indicators
Transformer
One (1) 200 VA
Ambient Temperature Derating
1.6A up to 40˚ C ; 1.2A up to 60˚ C

Description

200 VA Power Supply, Five 40 VA Class 2 Outputs, 480/347/277/240/120 Vac to 24 Vac, Hi/Lo Voltage Separate Wiring Compartments, Metal Enclosure
