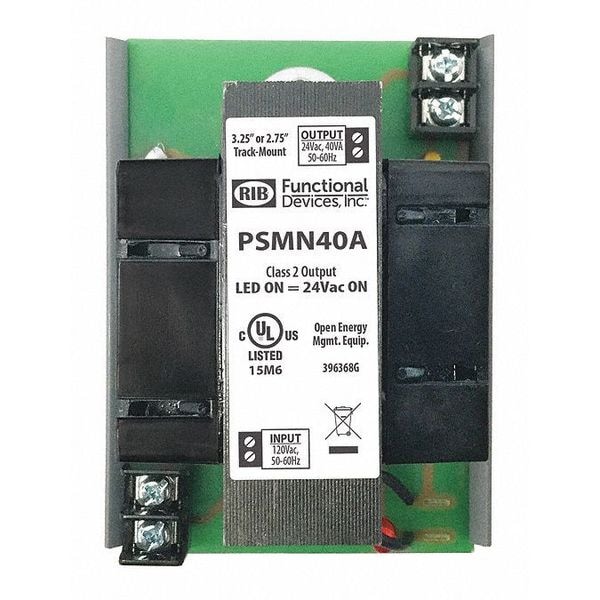

Power Supply, 120V AC, 24V AC, 40VA, 40A, Track
Mfr # PSMN40A
Zoro # G3224459
product price: $65.15
/eaKey Features
Input Voltage
120V AC
Output Voltage - Nominal
24V AC
Output Power - Rated
40VA
Current - Output
40A
Mounting
Track
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
PSMN40A
Zoro #
G3224459
UPC #
-
Country of Origin
United States
Dimensions
Overall Height
2-3/4 in
Overall Width
3-1/4 in
Overall Depth
2 in
Height
3-1/4 in
Width
2-3/4 in
Depth
2 in
Details
Item
Power Supply
Input Voltage
120V AC
Output Voltage - Nominal
24V AC
Output Power - Rated
40VA
Current - Output
40A
Mounting
Track
Hz
50/60 Hz
Power Rating
40VA
Output Voltage
24V AC
Output Amps
40A
Operating Temp. Range
-30 to 140°F
Load Regulation
0.0004
Line Regulation
0.625 mV/V, 8 mV/V
Ripple
0.0016%, 24 VDC @ 300 mA, 0.0016%, 24 VDC @ 1A
Approvals
Class 2 UL916 listed, ULC, File #E68805
DC Voltage Output Type
Fixed
Description
40 VA Power Supply, 120 Vac to 24 Vac, 2.75" Track Mount
