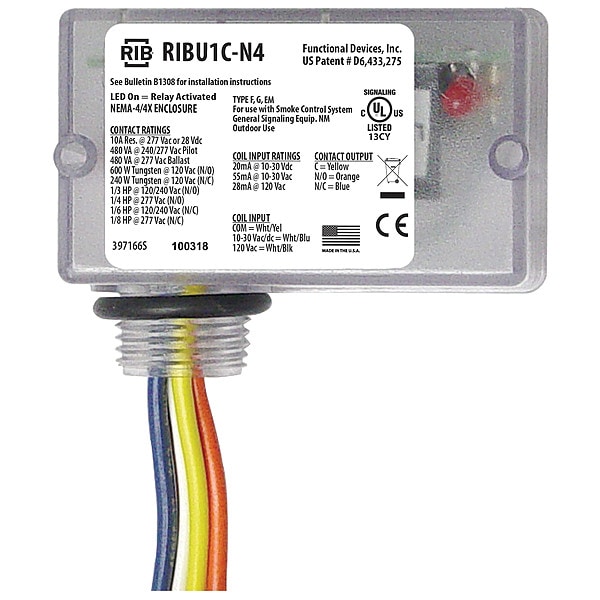

Functional Devices-Rib Enclosed Pre-Wired Relay, 10A at 277VAC, SPDT RIBU1C-N4 - main

Enclosed Pre-Wired Relay, 10A at 277VAC, SPDT

  • Mfr # RIBU1C-N4

  • Zoro # G0580097

product price:  $50.89
/ea

Key Features

Item - Relay
Prewired Relay
Application - Prewired Relay
Pilot Duty
Coil Volts
10 to 30V AC/DC, 120V AC
AC Contact Rating - Relay
10A @ 277V
DC Contact Rating - Relay
10A @ 28V
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
RIBU1C-N4
Zoro #
G0580097
UPC #
-
Country of Origin
United States

Dimensions

Body Depth - Relay
1.5 in
Body Width - Relay
2.8 in
Lead Length
16 in
Nipple Size
0.50 in NPT
Dimensions
1.7"H x 2.8"W x 1.5"D
Body Height - Relay
1.7 in
Overall Height - Relay
1.7 in
Body Width
2.8 in
Overall Depth
1.5 in
Body Height
1.5 in
Body Depth
1.5 in

Details

Item - Relay
Prewired Relay
Application - Prewired Relay
Pilot Duty
Coil Volts
10 to 30V AC/DC, 120V AC
AC Contact Rating - Relay
10A @ 277V
DC Contact Rating - Relay
10A @ 28V
Contact Form - Relay
SPDT
Mounting - Relay
1/2 in Nipple, Surface
Power Consumption - Relay
0.6W, 3.4VA
HP @ 120V
1/6 hp, 1/3 hp
Indicator Type
LED
NEMA Enclosure Type
4
Hz
50/60
Response Time
20 msec
Contact Amp Rating (Resistive)
10A @ 277VAC, 10A @ 28VDC
Standards
CE Certified, RoHS Compliant, UL 508, UL Listed
Application
Pilot
Features
1/2 in NPT Nipple, 16 in Wire Leads, LED Indicator, Pilot Duty
Contact Form
SPDT
Hz - Electrical
50 Hz, 60 Hz
Contact Material
Gold Flashed Silver Cadmium Oxide
Item
Enclosed Pre-Wired Relay
HP @ 240V
1/6 hp, 1/3 hp
Horsepower @ 240V AC
1/6 hp
Contact Rating (AC)
10 A @ 277V
Sealing
Enclosed
Mechanical Operating Durability
10,000,000
Status Indicator
LED Indicator
Contact Rating (DC)
10 A @ 28V
Current Rating
10 A
For Use With
Exhaust Fans, Motors, Vacuums
Input Voltage
10 to 30V AC, 120V AC/DC
Operating Current
10 A at 10 to 30V AC/DC, 10 A at 120V AC
Coil Voltage
10-30V AC/DC/120V AC
NEMA Enclosure Rating
4X
Horsepower @ 120V AC
1/6 hp
Minimum Operating Temperature
-30 Degrees F
Frequency
50/60 Hz
Power Consumption
0.6 W, 3.4 VA
Maximum Operating Temperature
140 Degrees F
Mounting Style
Surface
No. of Relays & Contact Type
One (1) SPDT Continuous Duty Coil
Relay Status
LED On - Activated
Coil Current
33 mA @ 10 Vac 35 mA @ 12 Vac 46 mA @ 24 Vac 55 mA @ 30 Vac 28 mA @ 120 Vac (RIBU1C) 13 mA @ 10 Vdc 15 mA @ 12 Vdc 18 mA @ 24 Vdc 20 mA @ 30 Vdc
Operating Temperature
-30 to 140° F
Override Switch
No
Expected Relay Life
10 million cycles minimum mechanical
Coil Voltage Input
10-30 Vac/dc ; 120 Vac ; 50-60 Hz (RIBU1C) Drop Out - 2.1 Vac / 2.8 Vdc Pull In - 9 Vac / 10 Vdc
Operate Time
20ms
Contact Ratings
10 Amp Resistive @ 277 Vac 10 Amp Resistive @ 28 Vdc 480 VA Pilot Duty @ 240-277 Vac 480 VA Ballast @ 277 Vac Not rated for Electronic Ballast 600 Watt Tungsten @ 120 Vac (N/O) 240 Watt Tungsten @ 120 Vac (N/C) 1/3 HP @ 120-240 Vac (N/O) 1/6 HP @ 120-240 Vac (N/C) 1/4 HP @ 277 Vac (N/O) 1/8 HP @ 277 Vac (N/C)
Housing Rating
NEMA 4X housing
Approvals
UL Listed, C-UL, CE (All models), UL508
Humidity Range
5 to 95% (noncondensing)
Gold Flash
Yes
Wires
16", 600V Rated

Description

Enclosed Pre-Wired Relay, Coil Voltage 10-30V AC/DC/120V AC, Contact Form SPDT, Current Rating 10 A, Mounting Style Surface, Nipple Size 0.50 in NPT, Contact Rating (AC) 10 A @ 277V, Contact Rating (DC) 10 A @ 28V, Input Voltage 10 to 30V AC, 120V AC/DC, NEMA Enclosure Rating 4X, Body Depth 1.5 in, Body Height 1.5 in, Body Width 2.8 in, Contact Material Gold Flashed Silver Cadmium Oxide, For Use With Exhaust Fans, Motors, Vacuums, Frequency 50/60 Hz, Horsepower @ 120V AC 1/6 hp
