Shop FUNCTIONAL DEVICES-RIB

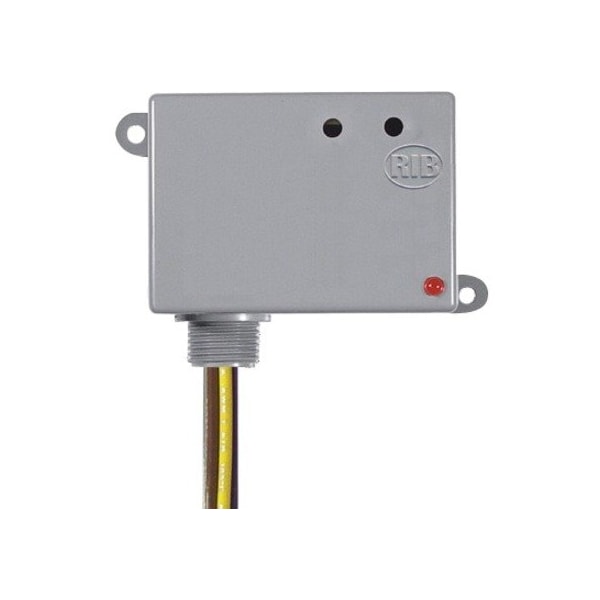

Enclosed Pre-Wired Relay, 20A at 300VAC, DPDT

  • Mfr # RIB24P

  • Zoro # G0682507

product price:
$
100.99
/ea
Free Shipping & Returns

Key Features

Item - Relay
Prewired Relay
Application - Prewired Relay
Power
AC Contact Rating - Relay
20A @ 300V
DC Contact Rating - Relay
20A @ 28V
Contact Form - Relay
DPDT
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
RIB24P
Zoro #
G0682507
UPC #
-
Country of Origin
United States

Dimensions

Overall Height - Relay
2.3 in
Nipple Size
0.50 in NPT
Body Height - Relay
2.3 in
Lead Length
16 in
Dimensions
2.3"H x 3.2"W x 1.8"D
Body Width - Relay
3.2 in
Body Depth - Relay
1.8 in
Body Height
1.8 in
Body Width
3.2 in
Body Depth
1.8 in
Overall Depth
1.8 in
Wire Length
16" (40.6 cm)

Details

Item - Relay
Prewired Relay
Application - Prewired Relay
Power
Coil Volts
24V AC/DC
AC Contact Rating - Relay
20A @ 300V
DC Contact Rating - Relay
20A @ 28V
Contact Form - Relay
DPDT
Mounting - Relay
1/2 in Nipple, Surface
Power Consumption - Relay
1.3W, 3.3VA
Contact Amp Rating (Resistive)
20A @ 300VAC, 20A @ 28VDC
Hz
50/60
NEMA Enclosure Type
1
HP @ 120V
1 hp
Response Time
18 msec
Contact Form
DPDT
Contact Material
Gold Flashed Silver Cadmium Oxide
Indicator Type
LED
Application
Power
Item
Enclosed Pre-Wired Relay
Features
1/2 in NPT Nipple, 16 in Wire Leads, LED Indicator, Power Relay
Hz - Electrical
50 Hz, 60 Hz
HP @ 240V
2 hp
Standards
CE Certified, CSFM, RoHS Compliant, UL 864, UL 916, UL Listed
For Use With
Exhaust Fans, Motors, Vacuums
Contact Rating (AC)
15 A @ 600V, 20 A @ 277 to 480/300V
Maximum Operating Temperature
140 Degrees F
Power Consumption
1.3 W, 3.3 VA
Mounting Style
Surface
Horsepower @ 120V AC
1 hp
Current Rating
20 A
Contact Rating (DC)
20 A @ 28V
Operating Current
20 A at 24V AC/DC
Mechanical Operating Durability
10,000,000
Input Voltage
24V AC/DC
Horsepower @ 240V AC
2 hp
Frequency
50/60 Hz
Status Indicator
LED Indicator
NEMA Enclosure Rating
1
Sealing
Enclosed
Minimum Operating Temperature
-30 Degrees F
Coil Voltage
24V AC/DC
LCD
Surface
Contact Rating
20A
Mount
Hub Mount
Housing Rating
NEMA 1
Type
Plastic Box
Accessory
Gold Flash
Relay Status
LED, ON - relay activated
Life Rating
10 million cycles minimum mechanical
Contact Type
1-DPDT
Approvals
UL listed, UL 916 Energy Management, UL 864 Fire, cUL listed, CSFM, UL File S7312
Operating Humidity
5% to 95% non-condensing
Operating Temperature
-30° to 140°F(-34° to 60°C)
Conduit Hub
1/2" NPT, 3/4" NPT

Description

Enclosed Pre-Wired Relay, Coil Voltage 24V AC/DC, Contact Form DPDT, Current Rating 20 A, Mounting Style Surface, Nipple Size 0.50 in NPT, Contact Rating (AC) 15 A @ 600V, 20 A @ 277 to 480/300V, Contact Rating (DC) 20 A @ 28V, Input Voltage 24V AC/DC, NEMA Enclosure Rating 1, Body Depth 1.8 in, Body Height 1.8 in, Body Width 3.2 in, Contact Material Gold Flashed Silver Cadmium Oxide, For Use With Exhaust Fans, Motors, Vacuums, Frequency 50/60 Hz, Horsepower @ 120V AC 1 hp
