  13. Enclosed Pre-Wired Relay, 10A at 30VDC, DPDT

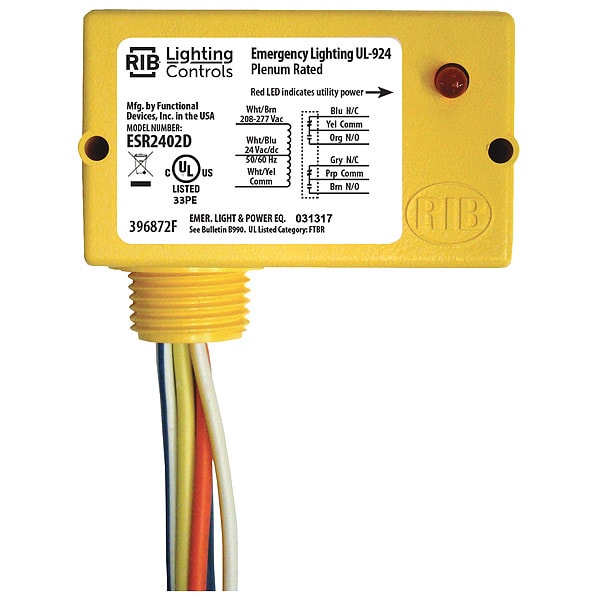

Functional Devices-Rib Enclosed Pre-Wired Relay, 10A at 30VDC, DPDT ESR2402D - main

Enclosed Pre-Wired Relay, 10A at 30VDC, DPDT

  • Mfr # ESR2402D

  • Zoro # G5172693

product price: $146.99
/ea
Free Shipping & Returns

Key Features

Item - Relay
Prewired Relay
Application - Prewired Relay
Emergency Bypass or Shunt
AC Contact Rating - Relay
10A @ 277V
DC Contact Rating - Relay
10A @ 30V
Contact Form - Relay
DPDT
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ESR2402D
Zoro #
G5172693
UPC #
-
Country of Origin
United States

Dimensions

Overall Height - Relay
1.7 in
Lead Length
16 in
Nipple Size
0.50 in NPT
Dimensions
1.7"H x 2.8"W x 1.5"D
Body Width - Relay
2.8 in
Body Height - Relay
1.7 in
Body Depth - Relay
1.5 in
Body Height
2.8 in
Overall Depth
1.5 in
Body Width
1.7 in
Body Depth
1.5 in

Details

Item - Relay
Prewired Relay
Application - Prewired Relay
Emergency Bypass or Shunt
Coil Volts
208 to 277V AC, 24V AC/DC
AC Contact Rating - Relay
10A @ 277V
DC Contact Rating - Relay
10A @ 30V
Contact Form - Relay
DPDT
Mounting - Relay
1/2 in Nipple, Surface
Power Consumption - Relay
0.84W, 14.4 to 19.1VA
Contact Form
DPDT
NEMA Enclosure Type
1
Item
Enclosed Pre-Wired Relay
Response Time
8 msec
Standards
CE Certified, RoHS Compliant, UL 924, UL Listed
Features
Enclosed Coil, Screw Terminals and Silver Alloy Contacts
HP @ 120V
1/3 hp, 1/2 hp
Indicator Type
LED
HP @ 240V
1/3 hp, 1/2 hp
Contact Amp Rating (Resistive)
10A @ 30VDC
Hz
50/60
Contact Material
Silver Alloy
Hz - Electrical
50 Hz, 60 Hz
Application
Emergency Bypass/Shunt
Contact Rating (DC)
10 A @ 30V
Horsepower @ 120V AC
1/3 hp
Mechanical Operating Durability
10,000,000
Horsepower @ 240V AC
1/3 hp
Contact Rating (AC)
10 A @ 277V
Current Rating
10 A
Minimum Operating Temperature
-30 Degrees F
Coil Voltage
24V AC/DC/208-277V AC
Mounting Style
Surface
Frequency
50/60 Hz
Operating Current
10 A at 208 to 277V AC, 10 A at 24V AC/DC
Status Indicator
LED Indicator
Input Voltage
208 to 277V AC/DC, 24V AC
Maximum Operating Temperature
140 Degrees F
For Use With
Exhaust Fans, Motors, Vacuums
Sealing
Enclosed
NEMA Enclosure Rating
1
Relay Status
LED On - Normal power present
Housing Rating
UL Accepted for Use in Plenum, NEMA 1
Operate Time
8ms
Wires
16", 600V Rated
No. of Relays & Contact Type
One (1) DPDT Continuous Duty Coil
Coil Current
24 mA @ 18 Vac 32 mA @ 24 Vac 40 mA @ 30 Vac 36 mA @ 208-277 Vac 20 mA @ 20 Vdc 24 mA @ 24 Vdc 36 mA @ 30 Vdc
Override (Test Switch)
No
Contact Ratings
10 Amp Resistive @ 30 Vdc 10 Amp General Use @ 277 Vac 1/2 HP @ 120/240 Vac (N/O) 1/3 HP @ 120/240 Vac (N/C) B300 Pilot Duty 120 Vac 30A Make 3A Break (360 VA) 240 Vac 15 A Make 1.5A Break (360 VA) 208 Vac 17.3A Make 1.73A Break (360 VA) 277 Vac 13A Make 1.3A Break (360 VA) 24 Vac 30A Make 5A Break (120 VA) 5A Max
Expected Relay Life
10 million cycles minimum mechanical
Approvals
UL Listed, UL924, C-UL, CE
Gold Flash
No
Coil Voltage Input
24 Vac/dc ; 208-277 Vac ; 50-60 Hz Drop Out - 3 Vac / 3.8 Vdc Pull In - 18 Vac / 20 Vdc
Operating Temperature
-30 to 140° F

Description

Enclosed Pre-Wired Relay, Contact Form DPDT, Current Rating 10 A, Mounting Style Surface, Nipple Size 0.50 in NPT, Contact Rating (AC) 10 A @ 277V, Contact Rating (DC) 10 A @ 30V, Input Voltage 208 to 277V AC/DC, 24V AC, NEMA Enclosure Rating 1, Body Depth 1.5 in, Body Height 2.8 in, Body Width 1.7 in, Contact Material Silver Alloy, For Use With Exhaust Fans, Motors, Vacuums, Frequency 50/60 Hz, Horsepower @ 120V AC 1/3 hp, Horsepower @ 240V AC 1/3 hp, Lead Length 16 in
