Shop FUNCTIONAL DEVICES-RIB

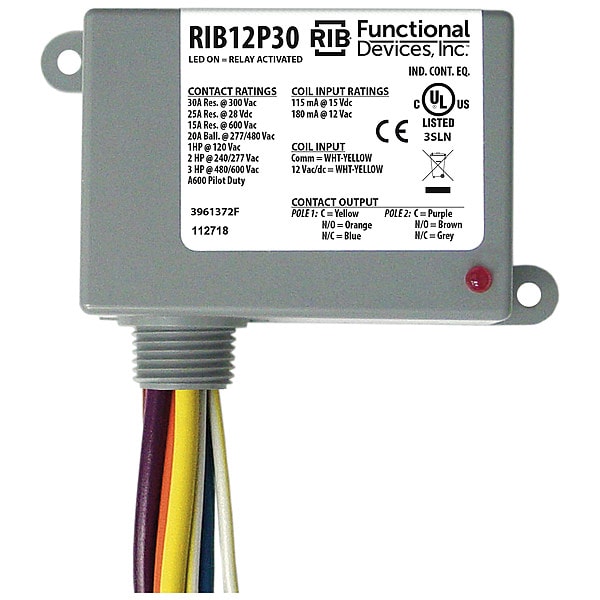

Enclosed Pre-Wired Relay, 30A at 300VAC, DPDT

  • Mfr # RIB12P30

  • Zoro # G5172605

product price:  $219.99
/ea
Free Shipping & Returns

Key Features

Item - Relay
Prewired Relay
Application - Prewired Relay
Power
AC Contact Rating - Relay
15A @ 600V, 30A @ 300V
DC Contact Rating - Relay
25A @ 28V
Contact Form - Relay
DPDT
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
RIB12P30
Zoro #
G5172605
UPC #
094236000071
Country of Origin
United States

Dimensions

Body Height - Relay
2.3 in
Nipple Size
0.75 in NPT
Dimensions
2.3"H x 3.2"W x 1.8"D
Overall Height - Relay
2.3 in
Body Depth - Relay
1.8 in
Lead Length
16 in
Body Width - Relay
3.2 in
Body Height
1.5 in
Overall Depth
1.5 in
Body Width
2.8 in
Body Depth
1.5 in

Details

Item - Relay
Prewired Relay
Application - Prewired Relay
Power
Coil Volts
12V AC/DC
AC Contact Rating - Relay
15A @ 600V, 30A @ 300V
DC Contact Rating - Relay
25A @ 28V
Contact Form - Relay
DPDT
Mounting - Relay
1/2 in Nipple, Surface
Power Consumption - Relay
1.1W, 2.2VA
Application
Power
HP @ 240V
2 hp
Features
Enclosed Coil, Screw Terminals and Silver Alloy Contacts
NEMA Enclosure Type
1
Standards
CE Certified, CSFM, RoHS Compliant, UL 864, UL 916, UL Listed
Contact Amp Rating (Resistive)
30A @ 300VAC, 15A @ 600VAC, 25A @ 28VDC
Item
Enclosed Pre-Wired Relay
Contact Form
DPDT
Hz - Electrical
50 Hz, 60 Hz
Hz
50/60
Response Time
18 msec
Indicator Type
LED
Contact Material
Silver Alloy
HP @ 120V
1 hp
For Use With
Exhaust Fans, Motors, Vacuums
Sealing
Enclosed
Status Indicator
LED Indicator
NEMA Enclosure Rating
1
Contact Rating (DC)
25 A @ 28V
Input Voltage
12V AC/DC
Current Rating
30 A
Minimum Operating Temperature
-30 Degrees F
Mounting Style
Surface
Operating Current
30 A at 12V AC/DC
Horsepower @ 120V AC
1 hp
Power Consumption
1.1 W, 2.2 VA
Horsepower @ 240V AC
2 hp
Coil Voltage
12V AC/DC
Frequency
50/60 Hz
Contact Rating (AC)
15 A @ 600V, 20 A @ 277 to 480V, 30 A @ 300V
Mechanical Operating Durability
10,000,000
Maximum Operating Temperature
140 Degrees F
Type
Plastic Box
Contact Type
1-DPDT
Function Type
Polarized
Contact Rating
30A

Description

Enclosed Pre-Wired Relay, Coil Voltage 12V AC/DC, Contact Form DPDT, Current Rating 30 A, Mounting Style Surface, Nipple Size 0.75 in NPT, Contact Rating (AC) 15 A @ 600V, 20 A @ 277 to 480V, 30 A @ 300V, Contact Rating (DC) 25 A @ 28V, Input Voltage 12V AC/DC, NEMA Enclosure Rating 1, Body Depth 1.5 in, Body Height 1.5 in, Body Width 2.8 in, Contact Material Silver Alloy, For Use With Exhaust Fans, Motors, Vacuums, Frequency 50/60 Hz, Horsepower @ 120V AC 1 hp, Horsepower @ 240V AC 2 hp
