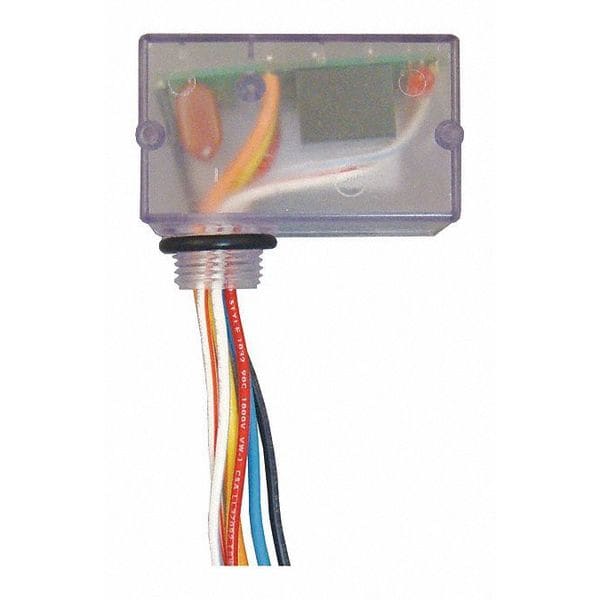

Enclosed Relay, 10A, SPDT, Coil Volts: 12VAC/DC
- Mfr # RIB21CDC-N4
- Zoro # G3224669
product price:Â
$
51.50
/ea
Key Features
Coil Volts
12V AC, 12V DC
Width
2.8
Dimensions
1.70"H x 2.80"W x 1.50"D with 0.50" NPT nipple
Height
1.5
Approvals
UL Listed, UL916, C-UL, CE
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- RIB21CDC-N4
- Zoro #
- G3224669
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Width
- 2.8
- Dimensions
- 1.70"H x 2.80"W x 1.50"D with 0.50" NPT nipple
- Height
- 1.5
Details
- Coil Volts
- 12V AC, 12V DC
- Item
- Enclsd Relay,10A,SPDT,12VAC/DC,Polarized
- Approvals
- UL Listed, UL916, C-UL, CE
- No. of Relays & Contact Type
- One (1) SPDT Continuous Duty Coil
- Operating Temperature
- -30 to 140° F
- Expected Relay Life
- 10 million cycles minimum mechanical
- Operate Time
- 1.8 Seconds
- Override Switch
- No
- Gold Flash
- No
- Wires
- 16", 600V Rated
- Power Input
- 50 mA @ 240 Vac Max.
- Housing Rating
- NEMA 4X housing, UL508 only
- Relay Status
- LED On - Activated
- Contact Ratings
- 10 Amp General Use @ 277 Vac 10 Amp Resistive @ 30 Vdc (N/O) 7 Amp Resistive @ 30 Vdc (N/C) 1/2 HP @ 125 Vac 1 HP @ 250 Vac 1/4 HP @ 277 Vac 470 VA Pilot Duty @ 125 Vac 770 VA Pilot Duty @ 250 Vac
- Humidity Range
- 5 to 95% (noncondensing)
Description
Dry Contact Relay, 10 Amp SPDT, Class 2 Dry Contact Input, 120-277 Vac Power Input, NEMA 4X Clear Housing
