Shop FUNCTIONAL DEVICES-RIB

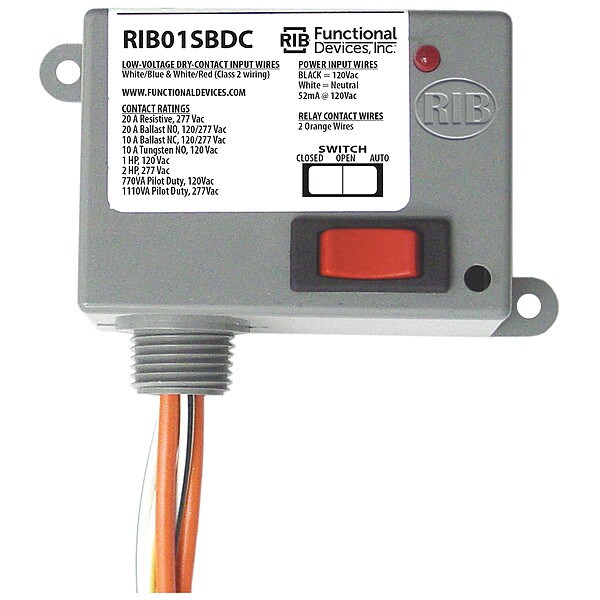

Enclosed Relay, 20A, SPST/Override,

  • Mfr # RIB01SBDC

  • Zoro # G3224477

product price:
$
51.60
/ea

Key Features

Width
3.2
Dimensions
2.39"H x 3.31"W x 1.81"D with 0.50" NPT nipple
Height
1.8
Operating Temperature
-30 to 140° F
Override Switch
Yes
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
RIB01SBDC
Zoro #
G3224477
UPC #
-
Country of Origin
United States

Dimensions

Width
3.2
Dimensions
2.39"H x 3.31"W x 1.81"D with 0.50" NPT nipple
Height
1.8

Details

Item
Enclosed Relay,20A,SPST,Override
Operating Temperature
-30 to 140° F
Override Switch
Yes
Housing Rating
UL Accepted for Use in Plenum, NEMA 1
Relay Status
LED On - Activated
Humidity Range
5 to 95% (noncondensing)
Approvals
UL Listed, UL916, C-UL, CE
Operate Time
1.8 Seconds
Gold Flash
No
Power Input
42 mA @ 120 Vac (RIB01SBDC)
No. of Relays & Contact Type
One (1) SPST Continuous Duty Coil
Wires
16", 600V Rated
Expected Relay Life
10 million cycles minimum mechanical
Contact Ratings
20 Amp Resistive @ 277 Vac 1110 VA Pilot Duty @ 277 Vac 770 VA Pilot Duty @ 120 Vac 20 Amp Ballast @ 277 Vac (N/O) 10 Amp Ballast @ 277 Vac (N/C) Not rated for Electronic Ballast 10 Amp Tungsten @ 120 Vac (N/O) 240 Watt Tungsten @ 120 Vac (N/C) 2 HP @ 277 Vac 1 HP @ 120 Vac

Description

Enclosed Relay,20A,SPST,Override
