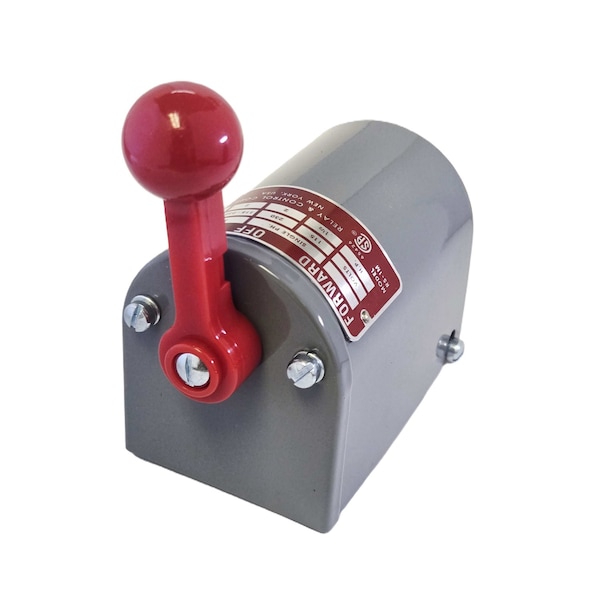

Drum Switch, Plastic, 2 hp
Mfr # RS-1M
Zoro # G0543827
product price:Â
$
141.99
/ea
Free Shipping & Returns
Key Features
Number of Poles
2
Handle Material
Plastic
Standards
CSA Certified, UL
Maximum Voltage Rating
550V AC
Mounting Style
Surface
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- RS-1M
- Zoro #
- G0543827
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Overall Height
- 4 in
- Overall Width
- 2.5 in
- Overall Depth
- 4.5 in
Description
Drum Switch, Switch Action Momentary, Phase Three, Reversing Capability Reversing, Horsepower @ Three Phase - 240V AC 1 hp, Horsepower @ Three Phase - 480V AC 1 hp, Mounting Style Surface, Maximum Voltage Rating 550V AC, Horsepower @ Single Phase - 120V AC 1 1/2 hp, NEMA Enclosure Rating 1, Number of Poles 2, Horsepower @ Single Phase - 240V AC 2 hp, Horsepower @ Three Phase - 208V AC 2 hp, Horsepower @ Three Phase - 600V AC Not Rated, Standards CSA, UL, Contact Material Copper
