Shop FUNCTIONAL DEVICES-RIB

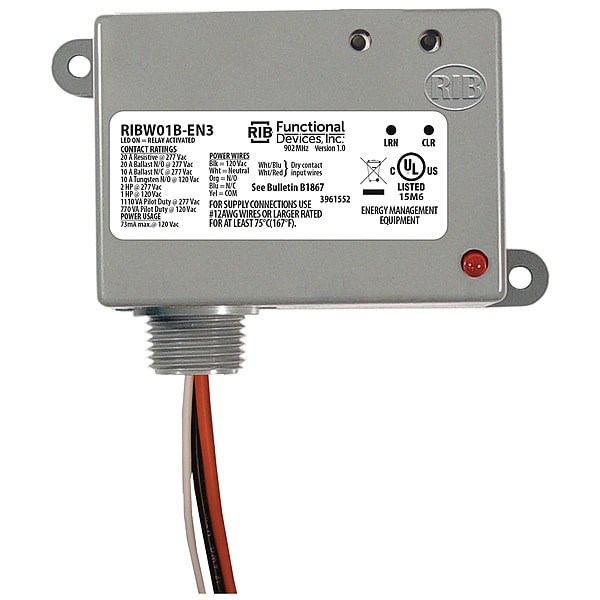

Wireless Relay/Transmitter, SPDT, 120VAC

  • Mfr # RIBW01B-EN3

  • Zoro # G1601026

product price:
$
213.99
/ea
Free Shipping & Returns

Key Features

Item - Relay
Wireless Relay and Transmitter
AC Contact Rating - Relay
20A @ 277V, 5A @ 480V
Contact Form - Relay
SPDT
Mounting - Relay
1/2 in Nipple, Surface
Power Consumption - Relay
8.8 VA
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
RIBW01B-EN3
Zoro #
G1601026
UPC #
-
Country of Origin
United States
Item - Relay
Wireless Relay and Transmitter
Coil Volts
120V AC
AC Contact Rating - Relay
20A @ 277V, 5A @ 480V
Contact Form - Relay
SPDT
Mounting - Relay
1/2 in Nipple, Surface
Power Consumption - Relay
8.8 VA
Contact Amp Rating (Inductive)
770 VA Pilot Duty @ 120VAC, 1110 VA Pilot Duty @ 277VAC
Hz
50/60
Number of Contacts
2
Contact Amp Rating (Resistive)
20A @ 277VAC, 5A @ 480VAC
HP @ 240V
2 hp
HP @ 120V
1 hp
Contact Material
Silver Alloy
Features
Dry Contact Input, Wireless Communication
Wireless Range
50 to 150 ft
Item
Wireless Relay and Transmitter
Contact Form
SPDT
Standards
RoHS Compliant, UL Listed
Communication Method
Wireless 902 MHz
Number of Pins - Relay
7
Hz - Electrical
50 Hz, 60 Hz
Contact Rating (AC)
10 A @ 120V (NO), 16 A @ 277V (NO), 20 A @ 277V
Horsepower @ 240V AC
2 hp
Coil Voltage
120V AC
NEMA Enclosure Rating
1
Minimum Operating Temperature
-30 Degrees F
Horsepower @ 120V AC
1 hp
Current Rating
20 A
Mechanical Operating Durability
10,000,000
Switch Modes
Alarm, Delay, Momentary, Repeater, Rocker, Toggle
Maximum Operating Temperature
140 Degrees F
Wire Rating
600V
For Use With
Enocean 902 MHz Switches/Transmitters
Operating Current
20 A
Input Voltage
120V AC
Frequency
60 Hz
Mounting Style
Surface
Number of Pins
7
Power Consumption
8.8 VA
Override Switch
No
No. of Relays & Contact Type
One (1) SPDT Continuous Duty Coil
Expected Relay Life
10 million cycles minimum mechanical
Contact Ratings
20 Amp Resistive @ 277 Vac 20 Amp Ballast @ 277 Vac 16 Amp Electronic Ballast @ 277 Vac (N/O) 10 Amp Tungsten @ 120 Vac (N/O) 770 VA Pilot Duty @ 120 Vac 1,110 VA Pilot Duty @ 277 Vac 2 HP @ 277 Vac 1 HP @ 120 Vac
Agency Compliance
FCCID: SZV-TCM320U IC: 5713A-TCM320U
Red LED
Relay Status / Learn Mode Status (Flashing)
Receiver Sensitivity
-93 dBm typical
Humidity Range
5 to 95% (noncondensing)
Wires
16", 600V Rated
Power Input Ratings
73 mA @ 120 Vac ; 60 Hz
Conducted Power
5 mW typical
Gold Flash
No
Built-in Switch Modes
Alarm, Repeater, Delay, Rocker, Momentary, and Toggle
Housing Rating
UL Accepted for Use in Plenum, NEMA 1
Approvals
UL Listed, UL916, C-UL
Operating Temperature
-30 to 140° F

Description

Wireless Relay and Transmitter, Coil Voltage 120V AC, Communication Method Wireless 902 MHz, Contact Form SPDT, Current Rating 20 A, Mounting Style Surface, NEMA Enclosure Rating 1, Body Depth 1.8 in, Body Height 2.3 in, Body Width 3.2 in, Contact Material Silver Alloy, Contact Rating (AC) 10 A @ 120V (NO), 16 A @ 277V (NO), 20 A @ 277V, Features Dry Contact Input, Wireless Communication, For Use With Enocean 902 MHz Switches/Transmitters, Frequency 60 Hz, Horsepower @ 120V AC 1 hp
