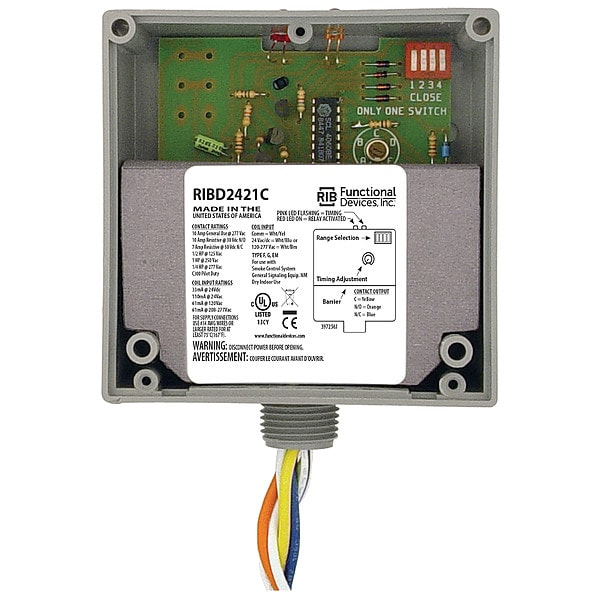

Functional Devices-Rib Enclosed Time Delay Relay, 10A RIBD2421C - main

Enclosed Time Delay Relay, 10A

  • Mfr # RIBD2421C

  • Zoro # G3224888

product price: $124.99
/ea
Free Shipping & Returns

Key Features

Color
Gray
Voltage
24 Vac/dc 120/208-277Vac
Height
1.8
Width
4
Dimensions
4.00" x 4.00" x 1.80" with .50" NPT nipple
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
RIBD2421C
Zoro #
G3224888
UPC #
-
Country of Origin
United States

Dimensions

Height
1.8
Width
4
Dimensions
4.00" x 4.00" x 1.80" with .50" NPT nipple

Details

Item
Enclosed Time Delay Relay,10A
Color
Gray
Voltage
24 Vac/dc 120/208-277Vac
Timing Mode
Delay On Make (N/O)
Recycle Time
750ms Maximum
Voltage Timing Variance
0.01
Timing Range
6 seconds - 20 minutes
Coil Voltage Input
24 Vac/dc ; 120-277 Vac ; 50-60 Hz Drop Out - 3 Vac / 3.8 Vdc Pull In - 20 Vac / 20 Vdc
Wires
16", 600V Rated
Approvals
UL Listed, UL916, UL864, C-UL
Gold Flash
No
Time Delay Status
PINK LED FLASHING - Timing
Humidity Range
5 to 95% (noncondensing)
Timing Tolerance
Switches 1& 2 - +10% Switches 3 & 4 - +5%
No. of Relays & Contact Type
One (1) SPDT Continuous Duty Coil
Temperature Timing Variance
0.01
Timing Adjustment
4 position DIP switch for range selection and single turn potentiometer for timing adjustment within range
Expected Relay Life
10 million cycles minimum mechanical
Override Switch
No
Timing Repeatability
0.01
Operate Time
6ms after time delay
Relay Status
RED LED On - Activated
Housing Rating
UL Accepted for Use in Plenum, NEMA 1
Operating Temperature
-30 to 140° F
Input Current
66 mA @ 24 Vac 38 mA @ 24 Vdc 40 mA @ 120-277 Vac
Contact Ratings
10 Amp General Use @ 277 Vac 10 Amp Resistive @ 30 Vdc (N/O) 7 Amp Resistive @ 30 Vdc (N/C) 1/2 HP @ 125 Vac 1 HP @ 250 Vac 1/4 HP @ 277 Vac C300 Pilot Duty

Description

Enclosed Time Delay Relay,10A
