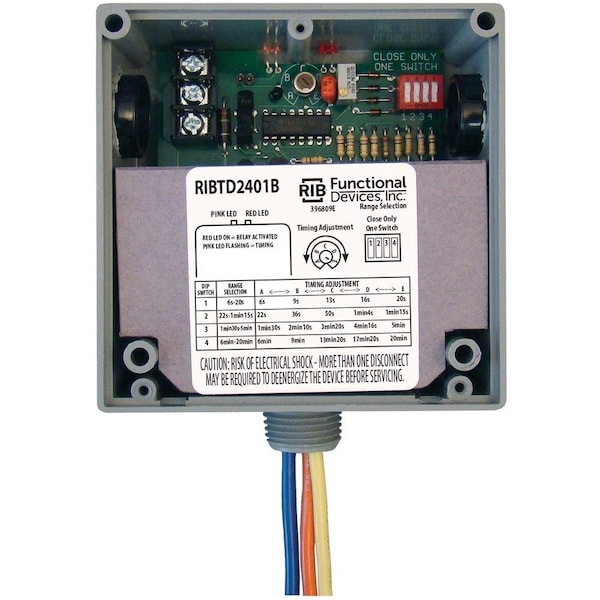

Enclosed Time Delay Relay, 20A, SPDT
Mfr # RIBTD2401B
Zoro # G3226172
product price: $108.99
/ea
Free Shipping & Returns
Key Features
Coil Volts
120VAC
Width
4
Height
1.8
Color
Gray
Voltage
24 Vac/dc 120 Vac
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
RIBTD2401B
Zoro #
G3226172
UPC #
-
Country of Origin
United States
Dimensions
Width
4
Height
1.8
Dimensions
A and G size enclosures: 2.3" H x 3.2" W x 1.8" D (5.84 x 8.13 x 4.57 cm), B size enclosures: 4" H x 4" W x 1.8" D (10.16 x 10.16 x 4.57 cm)
Wire Length
16" (40.6 cm)
Details
Coil Volts
120VAC
Item
Time Dly Rly,20A,SPDT,120VAC,Dry Contact
Color
Gray
Voltage
24 Vac/dc 120 Vac
Operating Temperature
-30° to 140°F(-34° to 60°C)
Mount
Hub Mount
Relay Status
LED, ON - relay activated
Type
Plastic Box
Housing Rating
NEMA 1
Conduit Hub
1/2" NPT, 3/4" NPT
Frequency
50/60 Hz
Feature
LED
Contact Type
1-SPDT
Operating Humidity
5% to 95% non-condensing
Approvals
UL listed, UL 916 Energy Management, UL 864 Fire, cUL listed, CSFM, UL File S7312
LCD
Surface
Life Rating
10 million cycles minimum mechanical
Contact Rating
20A
Coil Voltage
24 VAC, 24 VDC
Description
Time Dly Rly,20A,SPDT,120VAC,Dry Contact
