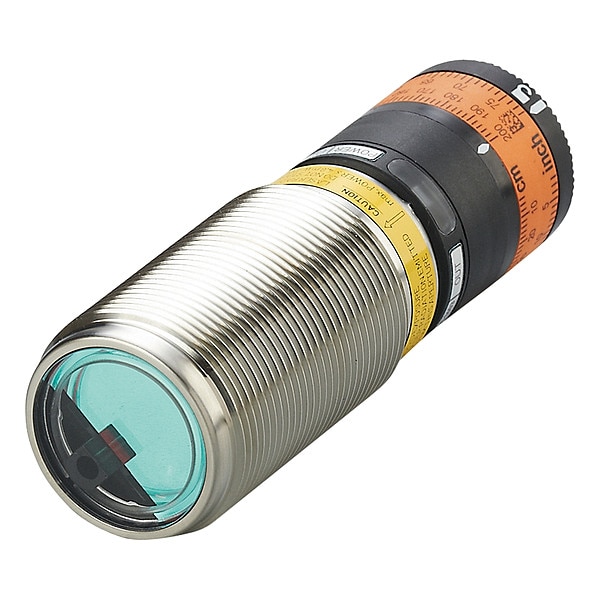

Ifm Cylindrical Distance Sensor OID200 - main

Cylindrical Distance Sensor

  • Mfr # OID200

  • Zoro # G0527795

product price:  $197.99
/ea
Free Shipping & Returns

Key Features

Measurement Range
0.03 to 2m
Electrical Connection
M12
Style
Cylindrical
Orientation
Right Angle
Power Requirement
10 to 30V DC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
OID200
Zoro #
G0527795
UPC #
-
Country of Origin
Germany

Dimensions

Overall Diameter
30 mm
Length
100 mm
Dimensions [mm]
M30 x 1.5 / L = 100
Max. light spot diameter [mm]
5
Light spot dimensions refer to
2 m
Max. immunity to extraneous light [klx]
10; (on the object)
Wave length [nm]
650
Overall Height
100 mm

Details

Item
Photoelectric Sensor
Measurement Range
0.03 to 2m
Electrical Connection
M12
Style
Cylindrical
Orientation
Right Angle
Power Requirement
10 to 30V DC
Circuit Type
PNP
Operating Mode
Selectable Light On/Dark On
IP Rating
IP65, IP67
Output Circuit Type
PNP
DC Voltage Rating
10-30V DC
Standards
CE, cULus, IEC, UKCA
Shielded / Unshielded
Unshielded
Operating Temp. Range
-25 to 60 Degrees C
Includes
2 Lock Nuts
Max. Current Load
0.02 mA
Operating Frequency
11 Hz
Response Time
6.6 msec
Electrical design
PNP
Materials
housing: stainless steel; front pane: PMMA; LED window: PC; PBT; PC; FKM
Number of digital outputs
2
MTTF [years]
239
Ambient temperature [°C]
-25...60
Background suppression available
yes
Measuring range [m]
0.03...2
Operating voltage [V]
10...30 DC; ("supply class 2" to cULus)
Max. current load per output [mA]
100
Process data binary
1
Operating elements
setting ring
Detection range hysteresis [%]
< 2
Display
switching status LED, yellow switching output PIN 4 operation LED, green
EMC
EN 60947-5-2
Profiles
Smart Sensor: Sensor Identification; Binary Data Channel; Process Value; Sensor Diagnosis
Thread designation
M30 x 1.5
Protection class
III
Switching frequency DC [Hz]
11
SIO mode
yes
Note on monitoring range hysteresis
black 6% remission
Current consumption [mA]
75; (24 V)
IO-Link revision
1.1
Number of inputs and outputs
Number of digital outputs: 2
Overload protection
yes
Communication interface
IO-Link
Special feature
Background suppression
Type of short-circuit protection
pulsed
Background suppression [m]
< 20
Min. process cycle time [ms]
6.6
Type of light
red light
Short-circuit protection
yes
With scale
yes
Total number of outputs
2
Transmission type
COM2 (38,4 kBaud)
Process data analogue
1
Display unit
cm; inch
Typ. lifetime [h]
50000
SDCI standard
IEC 61131-9
Protection
IP 65; IP 67
Laser protection class
2
Items supplied
lock nuts: 2 x M30, stainless steel
Sampling rate [Hz]
33
Reverse polarity protection
yes
Connection
Connector: 1 x M12; coding: A
Notes on laser protection
Caution: laser light Power: <= 4,0 mW Wave length: 650 nm pulse: 1,3 ns Do not stare into beam. Avoid exposure to the laser light. laser class: 2 EN / IEC60825-1:2007 EN / IEC60825-1:2014 Complies with 21 CFR 1040 except for deviations pursuant to Laser Notice No. 50, dated June 2007.
Includes Indicator Lights
Indicator Lights Included
Sensing Distance - Maximum
2 m
Operating Temperature - Maximum
140 Degrees F
Sensing Distance - Minimum
0 m
Number of Pins
4
Operating Temperature - Minimum
-13 Degrees F
Load Current - Maximum
100 mA
Output Circuit Contact Form
1NO/1NC
Electrical Installation Type
Direct Connector
Emitted Sensor Light
Red Light
Body Material
Stainless Steel
Switching Frequency
11 Hz

Description

Photoelectric Sensor
