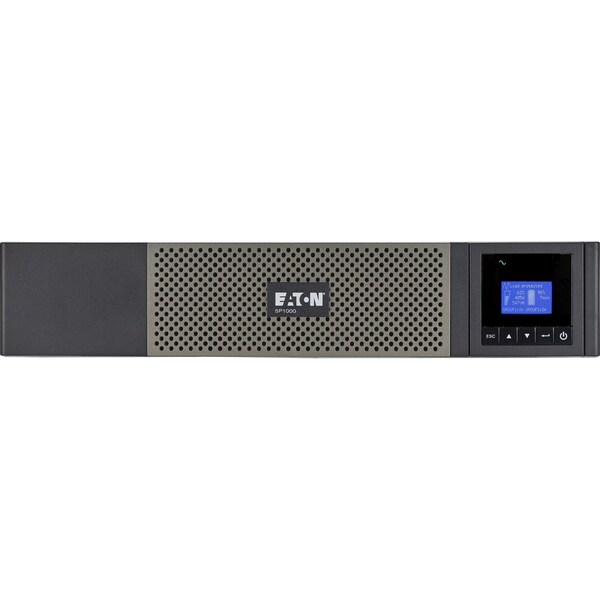

Eaton UPS System, 1000VA, Line Interactive, Out: 120V AC In: 120V AC 5P1000RC - main

UPS System, 1000VA, Line Interactive, Out: 120V AC In: 120V AC

  • Mfr # 5P1000RC

  • Zoro # G0819151

product price:  $866.99
/ea
Free Shipping & Returns

Key Features

UPS Type
Line Interactive
Power Rating
1000VA
Mounting
Rack
Wattage
770 W
Input Voltage
120V AC
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
5P1000RC
Zoro #
G0819151
UPC #
743172088277
Country of Origin
Unknown

Dimensions

Width
16 in
Input Cord Length
6 ft
Product Length/Depth
16 in
Rack size
2U
Product Height
3.4 in

Details

Item
UPS System
UPS Type
Line Interactive
Power Rating
1000VA
Mounting
Rack
Wattage
770 W
Input Voltage
120V AC
Output Voltage
120V AC
Number of Outlets
10
Battery Type
Sealed Lead Acid (SLA)
NEMA Receptacle Configuration
(10) 5-15R
Standards
cULus Listed
Housing Color
Black, Silver
Input connection
5-15P
Nominal Frequency
50-60 Hz
Input voltage range
89-151 Vac (adjustable to 70-153 Vac)
Noise level
<45 dB at 1 meter
Battery replacement
User replaceable
Input Power Factor
0.77
Input Frequency Range
47-70 Hz (50 Hz system), 56.5-70 Hz (60 Hz system), 40-70 Hz in low-sensitivity mode
Expansion Slots
One slot; Gigabit Network Card (Network-M2) is optional
Relative Humidity
0-90% non-condensing
Package Contents
5P rackmount compact UPS|Quick start guide|USB cable|RS-232 serial cable|Multi-purpose rail kit
Rack Mounting Kit
Yes
Altitude
Up to 10,000 ft (3000m) without de-rating
Extended Battery Capability
None; See Eaton 5PX UPS for extended runtimes options
Form factor
Compact
BTU Rating
Online: 106, Battery 500
Compliances
CE Marked
Efficiency
0.959
Battery management
ABM technology (3-stage charging extends battery service life by 50% and provides advance warning for battery replacement)
Temperature range
0° to 35°C (32° to 95°F)
Communication
RS-232 (RJ45) ports; USB port as standard (HID). 6-foot RS-232 and USB cables included
Output Voltage Range
102-132 Vac
Software Compatibility
Eaton Intelligent Power Manager (included)
