  13. Wireless Relay/Transmitter, SPDT, 24VAC/DC

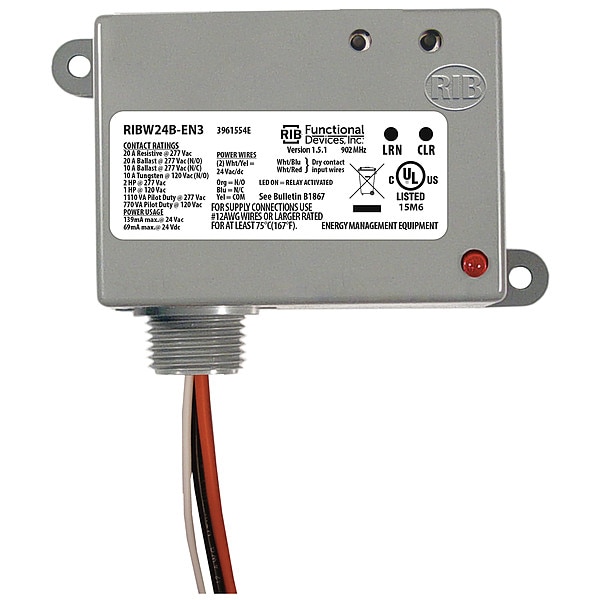

Functional Devices-Rib Wireless Relay/Transmitter, SPDT, 24VAC/DC RIBW24B-EN3 - main

Wireless Relay/Transmitter, SPDT, 24VAC/DC

  • Mfr # RIBW24B-EN3

  • Zoro # G1600999

product price: $208.99
/ea
Free Shipping & Returns

Key Features

Item - Relay
Wireless Relay and Transmitter
AC Contact Rating - Relay
20A @ 277V, 5A @ 480V
Contact Form - Relay
SPDT
Mounting - Relay
1/2 in Nipple, Surface
Power Consumption - Relay
1.9 W, 3.3 VA
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
RIBW24B-EN3
Zoro #
G1600999
UPC #
-
Country of Origin
United States

Dimensions

Height
2.3"
Depth
1.8"
Width
3.2"
Body Height - Relay
2.3 in
Body Width - Relay
3.2 in
Body Depth - Relay
1.8 in
Dimensions
2.39"H x 3.31"W x 1.81"D with 0.50" NPT nipple
Nipple Size
0.50 in NPT
Body Height
2.3 in
Body Depth
1.8 in
Body Width
3.2 in
Overall Depth
1.8 in

Details

Item - Relay
Wireless Relay and Transmitter
Coil Volts
24V AC/DC
AC Contact Rating - Relay
20A @ 277V, 5A @ 480V
Contact Form - Relay
SPDT
Mounting - Relay
1/2 in Nipple, Surface
Power Consumption - Relay
1.9 W, 3.3 VA
Contact Material
Silver Alloy
Features
Dry Contact Input, Wireless Communication
Wireless Range
50 to 150 ft
Number of Pins - Relay
7
Contact Amp Rating (Resistive)
20A @ 277VAC, 5A @ 480VAC
Hz - Electrical
50 Hz, 60 Hz
Hz
50/60
Item
Wireless Relay and Transmitter
Number of Contacts
2
Standards
RoHS Compliant, UL Listed
Communication Method
Wireless 902 MHz
HP @ 120V
1 hp
Contact Amp Rating (Inductive)
770 VA Pilot Duty @ 120VAC, 1110 VA Pilot Duty @ 277VAC
HP @ 240V
2 hp
Contact Form
SPDT
Maximum Operating Temperature
140 Degrees F
Minimum Operating Temperature
-30 Degrees F
Current Rating
20 A
Horsepower @ 120V AC
1 hp
Input Voltage
24V AC/DC
NEMA Enclosure Rating
1
Coil Voltage
24V AC/DC
Power Consumption
1.9 W, 3.3 VA
Contact Rating (AC)
10 A @ 120V (NO), 16 A @ 277V (NO), 20 A @ 277V
Wire Rating
600V
Mechanical Operating Durability
10,000,000
Switch Modes
Alarm, Delay, Momentary, Repeater, Rocker, Toggle
For Use With
Enocean 902 MHz Switches/Transmitters
Frequency
60 Hz
Operating Current
20 A
Number of Pins
7
Horsepower @ 240V AC
2 hp
Mounting Style
Surface
Override Switch
No
Power Input Ratings
69 mA @ 24 Vdc (RIBW24B-EN3) 139 mA @ 24 Vac (RIBW24B-EN3)
Humidity Range
5 to 95% (noncondensing)
Expected Relay Life
10 million cycles minimum mechanical
Wires
16", 600V Rated
Operating Temperature
-30 to 140° F
No. of Relays & Contact Type
One (1) SPDT Continuous Duty Coil
Contact Ratings
20 Amp Resistive @ 277 Vac 20 Amp Ballast @ 277 Vac 16 Amp Electronic Ballast @ 277 Vac (N/O) 10 Amp Tungsten @ 120 Vac (N/O) 770 VA Pilot Duty @ 120 Vac 1,110 VA Pilot Duty @ 277 Vac 2 HP @ 277 Vac 1 HP @ 120 Vac
Agency Compliance
FCCID: SZV-TCM320U IC: 5713A-TCM320U
Built-in Switch Modes
Alarm, Repeater, Delay, Rocker, Momentary, and Toggle
Gold Flash
No
Approvals
UL Listed, UL916, C-UL
Receiver Sensitivity
-93 dBm typical
Housing Rating
UL Accepted for Use in Plenum, NEMA 1
Conducted Power
5 mW typical
Red LED
Relay Status / Learn Mode Status (Flashing)

Description

Wireless Relay and Transmitter, Coil Voltage 24V AC/DC, Communication Method Wireless 902 MHz, Contact Form SPDT, Current Rating 20 A, Mounting Style Surface, NEMA Enclosure Rating 1, Body Depth 1.8 in, Body Height 2.3 in, Body Width 3.2 in, Contact Material Silver Alloy, Contact Rating (AC) 10 A @ 120V (NO), 16 A @ 277V (NO), 20 A @ 277V, Features Dry Contact Input, Wireless Communication, For Use With Enocean 902 MHz Switches/Transmitters, Frequency 60 Hz, Horsepower @ 120V AC 1 hp
