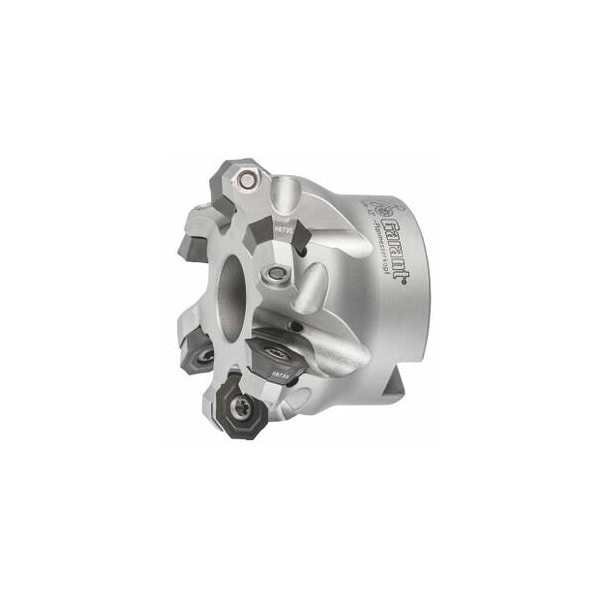

43 Degree Octo Face Mill, with Bore, 80mm Diameter, 6 Inserts
- Mfr # 213300 80/6
- Zoro # G616120113
product price:Â
$
574.99
/ea
Free Shipping & Returns
Key Features
Cutting Dia.
80 mm
Overall Length
50 mm
Insert Screw
219808 (15IP; 3.8 Nm)
Cutting Angle
43°
Number of Teeth
6
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 213300 80/6
- Zoro #
- G616120113
- UPC #
- -
- Country of Origin
- Italy
- Item
- Face mill
- Insert Screw
- 219808 (15IP; 3.8 Nm)
- Cutting Angle
- 43°
- Number of Teeth
- 6
- Shank Type
- with bore
- Overhang
- 50 mm
- Dia/No. of Cutting Edges
- 80 mm/6
- Tool Exchange
- PowerCard
- Milling Application
- Ramping
- Coolant Through
- Yes
Dimensions
- Cutting Dia.
- 80 mm
- Overall Length
- 50 mm
- Mounting Bore Dia.
- 27 mm
- Max. External Dia.
- 89 mm
Description
Version: 43 deg. indexable face mill with up to 8 edges per milling insert. Application: Very good surface finishes are obtained due to the positive geometry. Smooth-cutting face mills. Note: To use all 8 cutting edges- the insert always has to be turned in the indicated direction. Standard application values for ae = 0.5 ... 1xD. ap max 2.2 mm: Z = 8- ap max 3.5 mm: Z = 7. Use GARANT torque screwdriver TQ No. 211750 size 3.8 with bit No. 674252 size 15IP. Tool exchange: PowerCard Number of cutting edges Z: 6 maximum externalDmax: 89 mm Overall length Ltot: 50 mm Mounting bore : 27 mm suitable indexable insert: OF.. 050405 Pack of insert screws: 219808 15IP- 3.8 Nm
