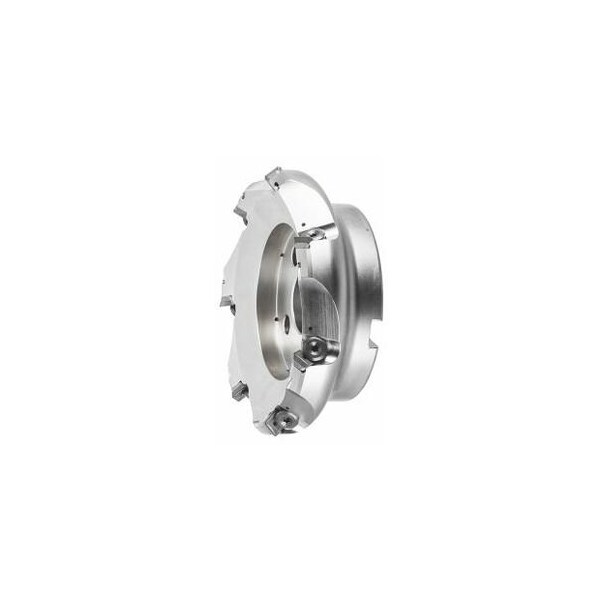

45 Degree Face Mill, with Bore, 160mm Diameter, 7 Inserts
- Mfr # 213890 160/7
- Zoro # G016119991
product price:Â
$
1,064.99
/ea
Free Shipping & Returns
Key Features
Cutting Dia.
160 mm
Overall Length
63 mm
Shim
219860
Cutting Angle
45°
Clamp screw for insert
219862 (25IP; 6 Nm)
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 213890 160/7
- Zoro #
- G016119991
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Cutting Dia.
- 160 mm
- Overall Length
- 63 mm
- Max. External Dia.
- 178 mm
- Mounting Bore Dia.
- 40 mm
Details
- Item
- Face Mill
- Shim
- 219860
- Cutting Angle
- 45°
- Clamp screw for insert
- 219862 (25IP; 6 Nm)
- Overhang
- 63 mm
- Clamp Screw for Shim
- 219861 (TX8)
- Number of Teeth
- 7
- Dia/No. of Cutting Edges
- 160 mm/7
- Shank Type
- with bore
- Coolant Through
- Yes
- Tool Exchange
- PowerCard
Description
Version: 45 deg. indexable face mill with unequal pitch for smooth cutting. Precision insert pockets due to special carbide shims. For arbors to DIN 2079- with 4 additional attachment holes. Tool exchange: PowerCard Number of cutting edges Z: 7 maximum externalDmax: 178 mm Overall length Ltot: 63 mm Mounting bore : 40 mm suitable indexable insert: SE.. 1203.. Clamp screw for insert: 219862 25IP- 6 Nm Shim: 219860
