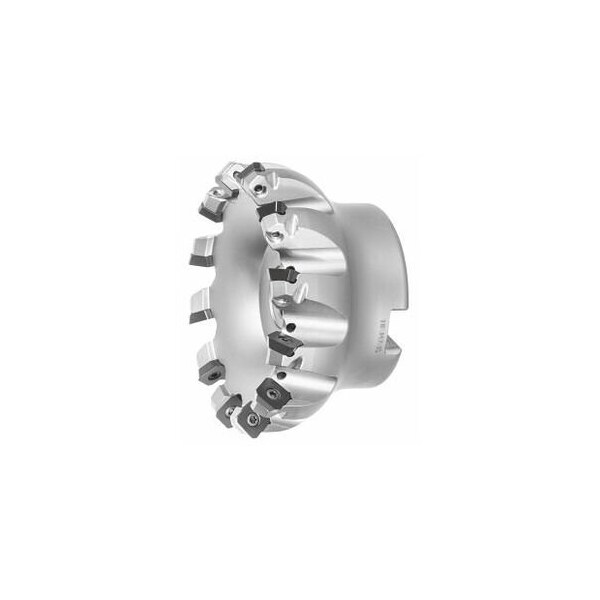

45 Degree Face Mill, with Bore, 80mm Diameter, 12 Inserts
Mfr # 214400 80/12
Zoro # G616120007
product price:Â
$
1,046.99
/ea
Free Shipping & Returns
Key Features
Cutting Dia.
80 mm
Overall Length
50 mm
Cutting Angle
45°
Insert Screw
219809 (8IP; 1.5 Nm)
Circular interpolation milling ap
1.5 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 214400 80/12
- Zoro #
- G616120007
- UPC #
- -
- Country of Origin
- Italy
Dimensions
- Cutting Dia.
- 80 mm
- Overall Length
- 50 mm
- Diameter 3
- 88 mm
- Ramping Length for αmax
- 77.5 mm
- Mounting Bore Dia.
- 27 mm
- Max. External Dia.
- 88.2 mm
Details
- Item
- Face mill
- Cutting Angle
- 45°
- Insert Screw
- 219809 (8IP; 1.5 Nm)
- Circular interpolation milling ap
- 1.5 mm
- Number of Teeth
- 12
- Axial Rake Angle
- 6°
- Overhang
- 50 mm
- Shank Type
- with bore
- Fz Helix
- 0.7
- Circular Interpolation Milling - Dmax
- 174 mm
- Dia/No. of Cutting Edges
- 80 mm/12
- Circular Interpolation Milling - Dmin
- 168 mm
- Ramping Angle
- 0.37 mm
- Coolant Through
- Yes
- Tool Exchange
- PowerCard
Description
Version: High number of cutting edges for very high productivity. Positive rake for soft cut and low power consumption. Advantage: Very high productivity due to: - Very high cutting speeds. - Very high feed rates. - Short machining times. Note: Use GARANT torque screwdriver TQ No. 211750 size 1.5 with bit No. 674252 size 8IP. Tool exchange: PowerCard Number of cutting edges Z: 12D3: 88 mm maximum externalDmax: 88.2 mm Overall length Ltot: 50 mm Mounting bore : 27 mm Circular interpolation millingDmin: 168 mm Circular interpolation millingDmax: 174 mm
