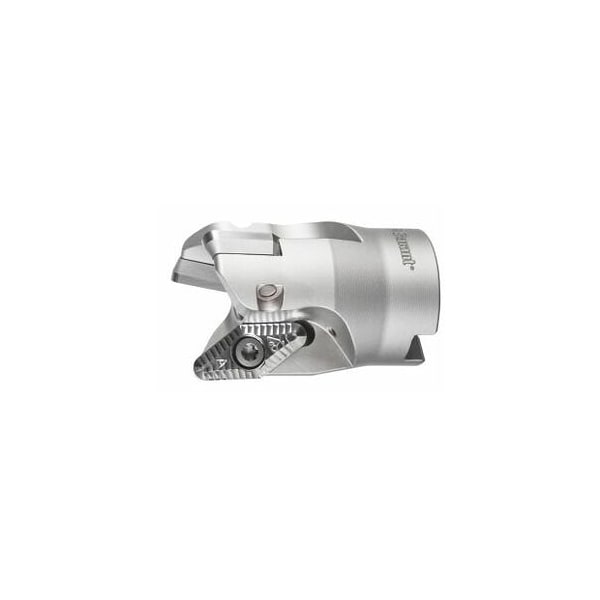

93 Degree Plunge Milling Cutter, with Bore, for VCG. Inserts, 40mm Diameter, 3 Inserts
Mfr # 211807 40/3
Zoro # G716120037
product price:Â $440.99
/ea
Free Shipping & Returns
Key Features
Cutting Angle
93°
Number of Teeth
3
Cutting Dia.
40 mm
Insert Screw
219800 (20IP; 5.7 Nm)
Overall Length
55 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 211807 40/3
- Zoro #
- G716120037
- UPC #
- -
- Country of Origin
- Italy
Dimensions
- Cutting Dia.
- 40 mm
- Overall Length
- 55 mm
- Diameter 3
- 34 mm
- Ramping Length for αmax
- 30.34 mm
- Mounting Bore Dia.
- 16 mm
Details
- Item
- Plunge mill
- Cutting Angle
- 93°
- Number of Teeth
- 3
- Insert Screw
- 219800 (20IP; 5.7 Nm)
- Overhang
- 55 mm
- Machining Strategy
- MTC
- Tool Exchange
- PowerCard
- Circular Interpolation Milling - Dmax
- 78 mm
- Circular interpolation milling ap
- 8 mm
- Dia/No. of Cutting Edges
- 40 mm/3
- Fz Helix
- 0.8
- Circular Interpolation Milling - Dmin
- 74 mm
- Coolant Through
- Yes
- Shank Type
- with bore
- Ramping Angle
- 5.65°
- Axial Rake Angle
- 0°
Description
Version: Greater tool stiffness by elimination of twist between indexable insert and insert seat. Application: To prevent chips jamming- especially when milling deep pockets. Note: Use GARANT torque screwdriver TQ No. 211750 size 5.7 with bit No. 674252 size 20IP. Tool exchange: PowerCardD3: 34 mm Overall length Ltot: 55 mm Mounting bore : 16 mm Circular interpolation millingDmin: 74 mm Circular interpolation millingDmax: 78 mm Circular interpolation milling ap: 8 mm
